TA60L-AEKDSW (1981)

Toyota Carina

Production Aug 1981 - Sep 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

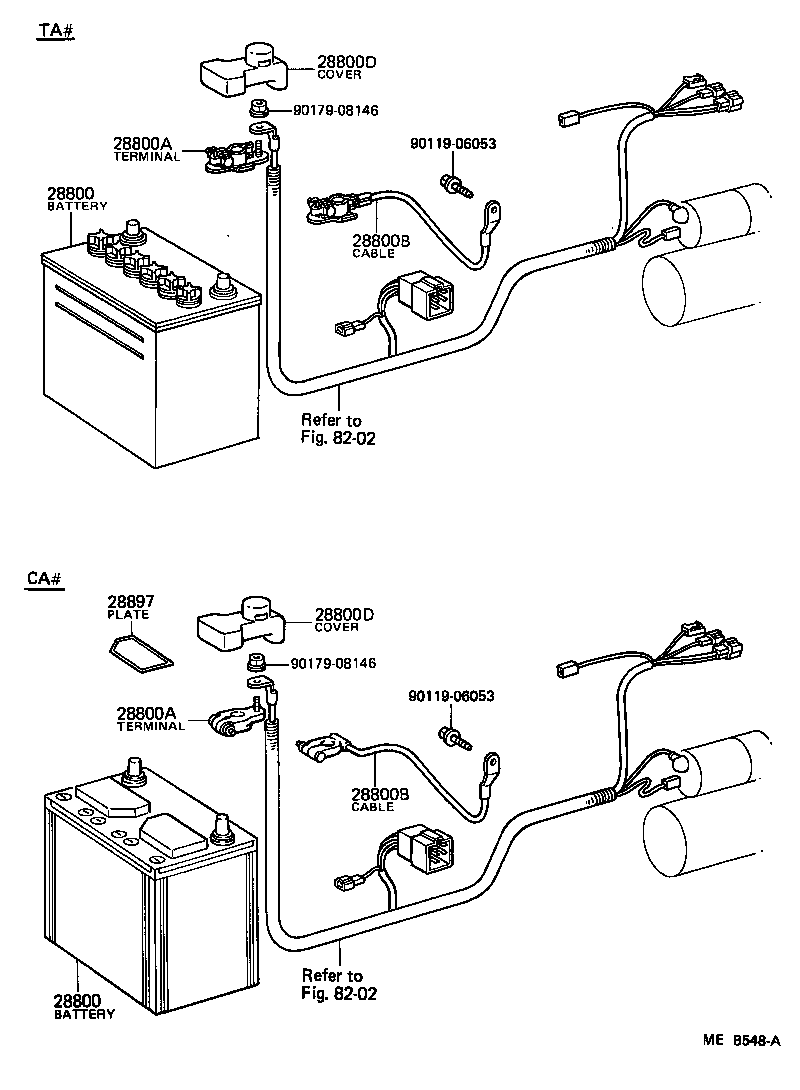

Click highlighted areas on diagram

diagram 28800 28800 28800A 28800A 28800B 28800B 28800D 28800D 28897 8202 8202 9011906053 9011906053 9017908146 9017908146
Part # Description Qty Price
28800 - BATTERY
28800-43070

1C,2T,3T#..CA60,TA6#

55D23L-MF

 1
28800-43070

2T,3T#..TA6#

55D23L-MF

 1
28800-31031

2T,3T..TA6#

32C24L,N40L

 1
28800 - BATTERY
28800-43070

1C,2T,3T#..CA60,TA6#

55D23L-MF

 1
28800-43070

2T,3T#..TA6#

55D23L-MF

 1
28800-31031

2T,3T..TA6#

32C24L,N40L

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05022

2T,3T#..TA6#

N40L,55D23L-MF

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05022

2T,3T#..TA6#

N40L,55D23L-MF

 1
28800B - CABLE, BATTERY TO GROUND
90982-02224

2T,3T#..TA6#

N40L,55D23L-MF

 1
90982-02136

2T,3T#..TA6#

N40L,55D23L-MF

 1
28800B - CABLE, BATTERY TO GROUND
90982-02224

2T,3T#..TA6#

N40L,55D23L-MF

 1
90982-02136

2T,3T#..TA6#

N40L,55D23L-MF

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

1C,2T,3T#..CA60,TA6#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

1C,2T,3T#..CA60,TA6#

 1
Common parts
90119-06053
90179-08146
Linked diagrams
8202
