TA60L-AEKDSW (1981)
Toyota Carina
Production
Aug 1981
-
Sep 1983
Engine
2T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )

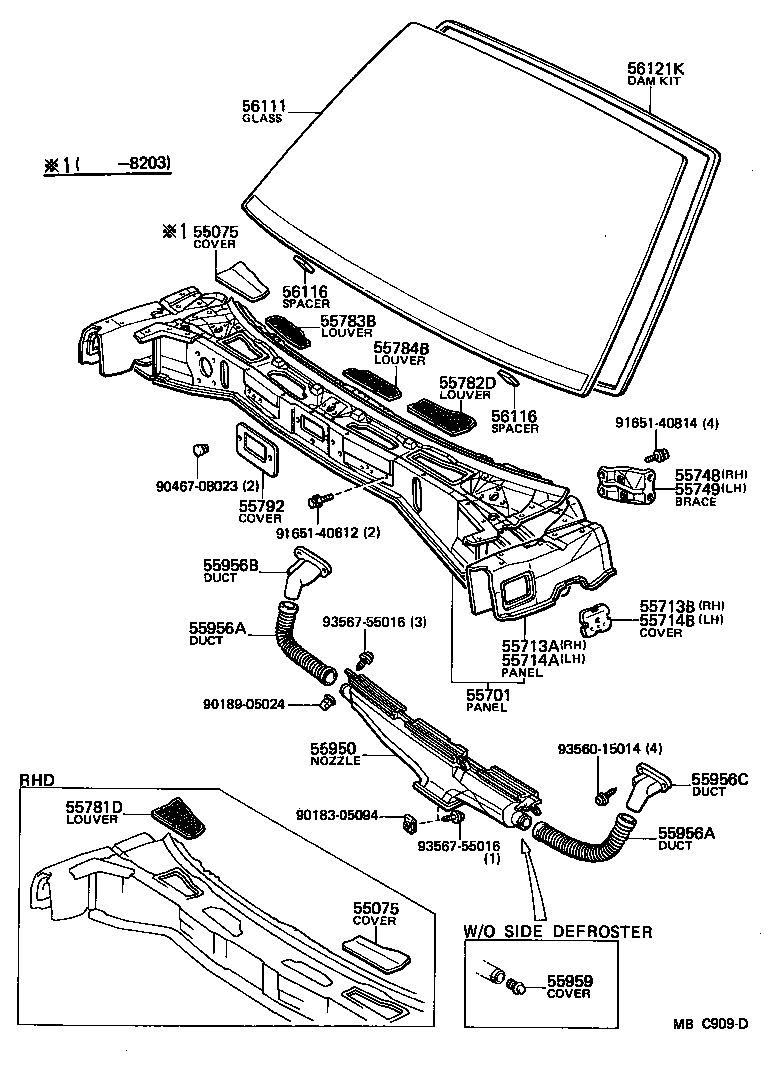

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55075 - COVER SUB-ASSY, HEATER AIR DUCT HOLE | ||||
| 55791-14020 |
TA6#..LHD |
1 | ||
| 55075 - COVER SUB-ASSY, HEATER AIR DUCT HOLE | ||||
| 55791-14020 |
TA6#..LHD |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-14430 |
TA6#..LHD..MTM |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-14060 |
CA60,TA6# |
1 | ||
| 55713B - COVER, COWL SIDE PANEL HOLE, RH | ||||
| 62161-14010 |
CA60,TA6# |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-14060 |
CA60,TA6# |
1 | ||
| 55714B - COVER, COWL SIDE PANEL HOLE, LH | ||||
| 62162-14010 |
CA60,TA6# |
1 | ||
| 62161-14010 |
CA60,TA6# |
1 | ||
| 55748 - BRACE, COWL TOP TO PILLAR, RH | ||||
| 55748-14020 |
CA60,TA6# |
1 | ||
| 55749 - BRACE, COWL TOP TO PILLAR, LH | ||||
| 55749-14050 |
CA60,TA6# |
1 | ||
| 55782D - LOUVER, COWL TOP VENTILATOR, LH | ||||
| 55782-14030 |
CA60,TA6#..LHD |
1 | ||
| 55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1 | ||||
| 55783-14070 |
CA60,TA6# |
1 | ||
| 55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2 | ||||
| 55784-14090 |
CA60,TA6# |
1 | ||
| 55792 - COVER, WIPER MOTOR SERVICE HOLE | ||||
| 55793-24010 |
CA60,TA6# |
1 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-14120 |
CA60,TA6#..LHD |
1 | ||
| 55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-14010 |
CA60,TA6# |
2 | ||
| 55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-14010 |
CA60,TA6# |
2 | ||
| 55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-14030 |
CA60,TA6# |
1 | ||
| 55956C - DUCT, SIDE DEFROSTER NOZZLE, NO.3 | ||||
| 55973-14020 |
CA60,TA6# |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-14270 |
TA62..GL..EUG;CA60,TA60..SED,WG *TT,T=5.0,*TZT,T=5.0 |
1 | ||
| 56111-14290 |
TA62..GL..EUG;CA60,TA60..SED,WG *TL,W/SUN SHADE,T=5.3 |
1 | ||
| 56111-14280 |
CA60,TA6#..SED,WG *TL,T=5.3,*TL,T=5.3 |
1 | ||
| 56116 - SPACER, WINDSHIELD GLASS | ||||
| 56116-14040 |
CA60,TA6#..SED,WG SIDE,20X8X9.2 |
1 | ||
| 56116-14020 |
CA60,TA6# LWR,20X7.5X11.5 |
2 | ||
| 56116 - SPACER, WINDSHIELD GLASS | ||||
| 56116-14040 |
CA60,TA6#..SED,WG SIDE,20X8X9.2 |
1 | ||
| 56116-14020 |
CA60,TA6# LWR,20X7.5X11.5 |
2 | ||
| 56121K - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-30040 |
CA60,TA6# |
1 | ||
| 04562-30030 |
CA60,TA6# |
1 | ||
| Common parts | ||||
| 90183-05094 | ||||
| 90189-05024 | ||||
| 90467-08023 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 93560-15014 | ||||
| 93567-55016 | ||||
