TA60L-AEKDSW (1981)

Toyota Carina

Production Aug 1981 - Sep 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

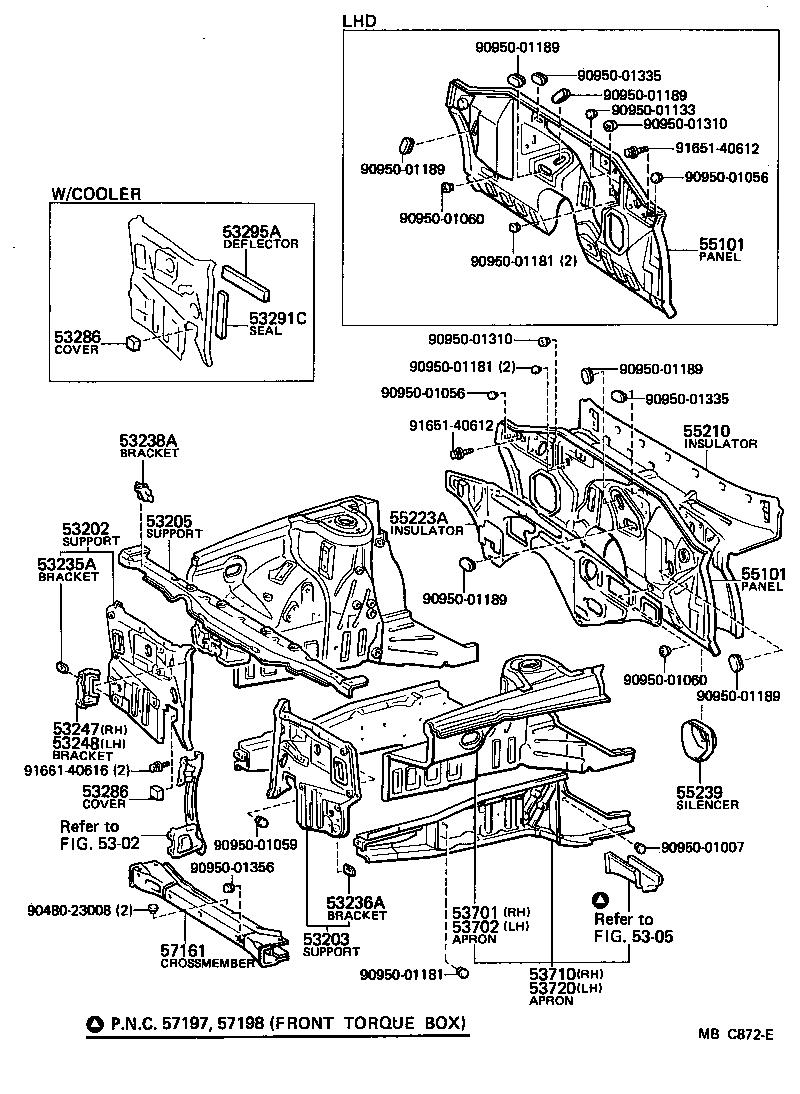

Click highlighted areas on diagram

diagram 5302 5305 53202 53203 53205 53235A 53236A 53238A 53247 53248 53286 53286 53291C 53295A 53701 53702 53710 53720 55101 55101 55210 55223A 55239 57161 9048023008 9095001007 9095001056 9095001056 9095001059 9095001060 9095001060 9095001133 9095001181 9095001181 9095001181 9095001189 9095001189 9095001189 9095001189 9095001189 9095001189 9095001310 9095001310 9095001335 9095001335 9095001356 9165140612 9165140612 9166140616
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-14110

CA60,TA6#

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-14180

TA6#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-14040

CA60,TA6#

 1
53235A - BRACKET, HORN MOUNTING, RH
53235-14040

CA60,TA6#

 1
53236A - BRACKET, HORN MOUNTING, LH
53236-14030

TA6#

 1
53238A - BRACKET, HOOD BUMPER MOUNTING
53238-14060

CA60,TA6#

 2
53247 - BRACKET, HEADLAMP MOUNTING, INNER RH
53247-14060

CA60,TA6#

 1
53248 - BRACKET, HEADLAMP MOUNTING, INNER LH
53248-14040

CA60,TA6#

 1
53286 - COVER, FRONT BUMPER ARM HOLE
53285-14040

CA60,TA60;TA62..EUG

 2
53286 - COVER, FRONT BUMPER ARM HOLE
53285-14040

CA60,TA60;TA62..EUG

 2
53291C - SEAL, RADIATOR SUPPORT TO FRAME
53291-14020

TA60;TA62..EUG

 2
53295A - DEFLECTOR, RADIATOR UPPER AIR
53293-14040

TA60..MTM;TA62..5F..EUG

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-14914

TA6#..EUG

 1
53701-14924

TA60;TA62..EUG

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-14917

TA6#..EUG

 1
53702-14927

TA60;TA62..EUG

 1
53710 - APRON ASSY, W/FRONT SIDE MEMBER, RH
53710-14900

CA60,TA60;TA62..EUG

 1
53720 - APRON ASSY, W/FRONT SIDE MEMBER, LH
53720-14901

TA60;TA62..EUG

 1
55101 - PANEL SUB-ASSY, DASH
55101-14913

TA6#..LHD

 1
55101-14924

CA60,TA6#..LHD

 1
55101 - PANEL SUB-ASSY, DASH
55101-14913

TA6#..LHD

 1
55101-14924

CA60,TA6#..LHD

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-14180

CA60,TA6#..LHD

 1
55239 - SILENCER, STEERING COLUMN HOLE COVER
55212-14060

CA60,TA6#

 1
57161 - CROSSMEMBER, FRONT
57104-14090

CA60,TA6#

 1
57104-14100

CA60,TA6#

 1
Common parts
90480-23008
90950-01007
90950-01056
90950-01059
90950-01060
90950-01133
90950-01181
90950-01189
90950-01310
90950-01335
90950-01356
91651-40612
91661-40616
Linked diagrams
5302
5305
