TA60L-AEHDS (1981)

Toyota Carina

Production Aug 1981 - Sep 1983
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )SED

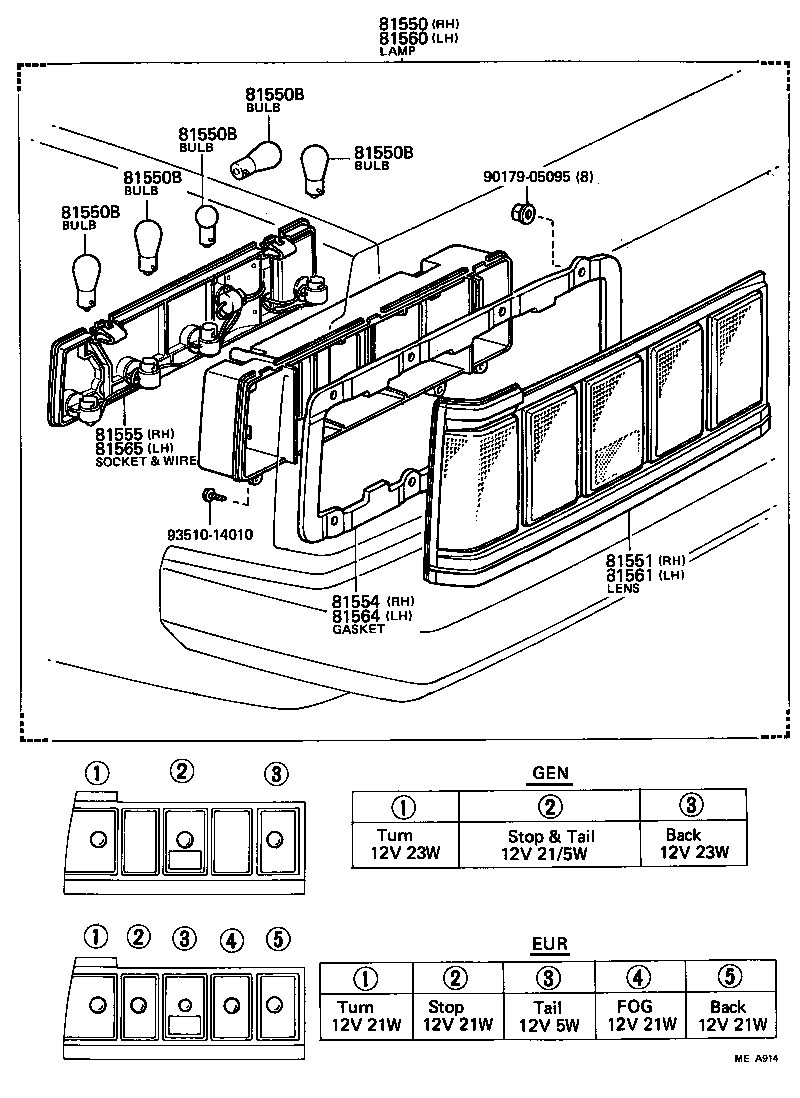

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81550B 81550B 81551 81554 81555 81560 81561 81564 81565 9017905095 9351014010
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80108

TA60..SED..GEN

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

TA60..GEN;CA60,TA6#..(CP,WG)..EUR

12V 21/5W,12V 21/5W

 4
99132-11230

TA60..SED..GEN

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

TA60..GEN;CA60,TA6#..(CP,WG)..EUR

12V 21/5W,12V 21/5W

 4
99132-11230

TA60..SED..GEN

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

TA60..GEN;CA60,TA6#..(CP,WG)..EUR

12V 21/5W,12V 21/5W

 4
99132-11230

TA60..SED..GEN

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

TA60..GEN;CA60,TA6#..(CP,WG)..EUR

12V 21/5W,12V 21/5W

 4
99132-11230

TA60..SED..GEN

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

TA60..GEN;CA60,TA6#..(CP,WG)..EUR

12V 21/5W,12V 21/5W

 4
99132-11230

TA60..SED..GEN

12V 23W,12V 23W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-14550

TA60..SED..GEN

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-14550

CA60,TA6#..SED

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-14550

TA60..SED..GEN

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80112

TA60..SED..GEN

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-14550

TA60..SED..GEN

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-14550

CA60,TA6#..SED

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-14550

TA60..SED..GEN

 1
Common parts
90179-05095
93510-14010
