TA60L-ACMES (1981)

Toyota Carina

Production Aug 1981 - Sep 1983
Engine 2T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )CP

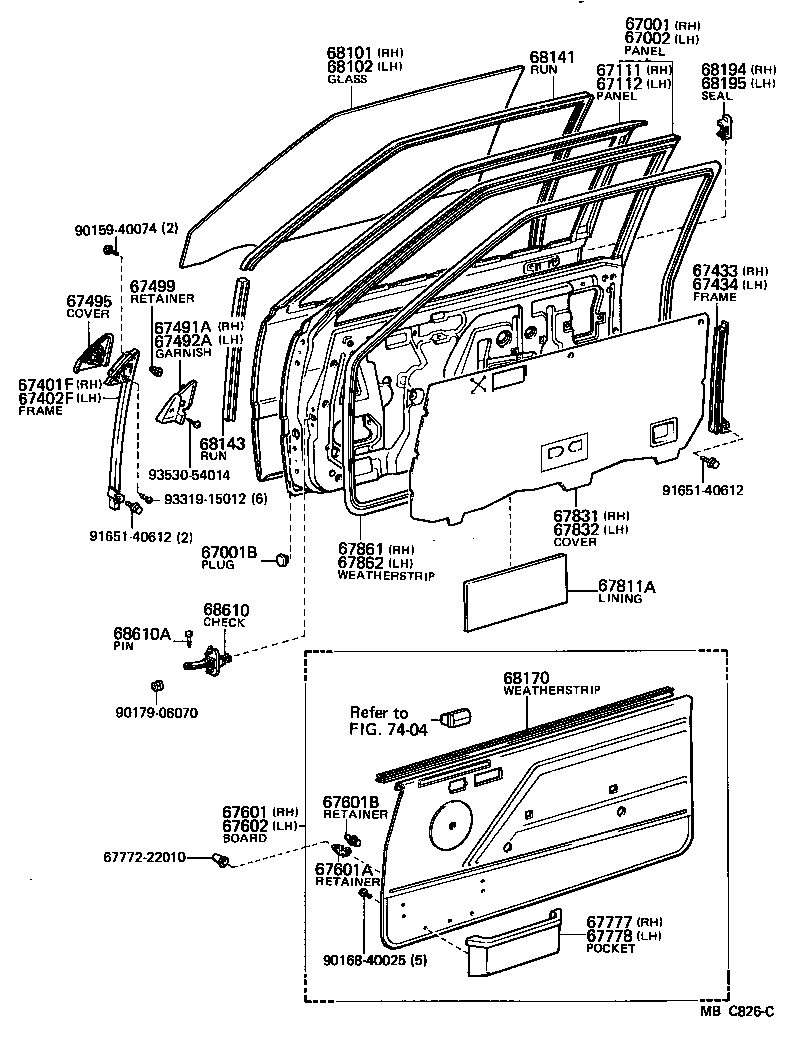

Click highlighted areas on diagram

diagram 67001 67001B 67002 67111 67112 67401F 67402F 67433 67434 67491A 67492A 67495 67499 67601 67601A 67601B 67602 6777222010 67777 67778 67811A 67831 67832 67861 67862 68101 68102 68141 68143 68170 68194 68195 68610 68610A 7404 9015940074 9016840025 9017906070 9165140612 9165140612 9331915012 9353054014
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-14300

TA6#..CP

 1
67001-14280

TA60..XE

 1
67001B - PLUG, HOLE(FOR FRONT DOOR PANEL)
82817-14380

TA6#..CP

 2
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-14310

TA60..XE

 1
67002-14330

TA6#..CP

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-14210

TA60..XE

 1
67111-14190

TA6#..CP

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-14220

TA60..XE

 1
67112-14200

TA6#..CP

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-14150

TA6#..CP

 1
67401-14150

TA60..CP;TA62..EUG

 1
67401-14180

TA6#..CP

W/DOOR MIRROR

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-14180

TA6#..CP

W/DOOR MIRROR

 1
67402-14150

TA60..CP;TA62..EUG

 1
67402-14150

TA6#..CP

 1
67433 - FRAME, FRONT DOOR WINDOW, REAR LOWER RH
67403-14040

TA6#..CP

 1
67434 - FRAME, FRONT DOOR WINDOW, REAR LOWER LH
67404-14040

TA6#..CP

 1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-14100

TA6#..CP

 1
67491-14090

TA6#..CP

W/*RCM

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-14100

TA6#..CP

 1
67492-14090

TA6#..CP

W/*RCM

 1
67495 - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER
67495-14040

TA6#..CP

RH

 1
67496-14040

TA6#..CP

LH

 1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67499-30010

CA60,TA6#

 2
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1D15006

TA60..LHD..XE

DARK BROWN,BROWN,TRIM4#

 1
67610-1D15001

TA60..LHD..XE

BLACK,BLACK,TRIM2#

 1
67610-1D15004

TA60..LHD..XE

BLUE,BLUE,TRIM8#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-14010

CA60,TA6#

 2
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
67771-12010

CA60,TA6#

 20
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1B66006

TA60..LHD..XE

DARK BROWN,BROWN,TRIM4#

 1
67620-1B66001

TA60..LHD..XE

BLACK,BLACK,TRIM2#

 1
67620-1B66004

TA60..LHD..XE

BLUE,BLUE,TRIM8#

 1
67778 - POCKET, FRONT DOOR TRIM, LH
67770-1401005

TA6#..LHD..XE

BEIGE,BEIGE,TRIM4#

 1
67770-1403003

TA6#..LHD..(GL,XE)

GRAY,GRAY,TRIM2#

 1
67770-1401003

TA6#..LHD..XE

GRAY,GRAY,TRIM2#

 1
67770-1403004

TA6#..LHD..(GL,XE)

BLUE,BLUE,TRIM8#

 1
67770-1401004

TA6#..LHD..XE

BLUE,BLUE,TRIM8#

 1
67770-1403005

TA6#..LHD..(GL,XE)

BEIGE,BEIGE,TRIM4#

 1
67811A - PAD, REAR DOOR SILENCER
67811-20050

TA6#..CP

 2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-14150

TA6#..CP

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-14070

TA6#..CP

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-14270

TA6#..CP

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-14270

TA6#..CP

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-14290

TA6#..CP

T=4.0,*TT

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-14300

TA6#..CP

T=4.0,*TT

 1
68141 - RUN, FRONT DOOR GLASS
68151-14020

TA6#..CP

LH

 1
68141-14080

TA6#..CP

RH

 1
68143 - RUN, FRONT DOOR GLASS, LOWER
68143-22020

TA6#..CP

 2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-14180

TA6#..CP

RH

 1
68220-14140

TA6#..CP

LH

 1
68194 - SEAL, FRONT DOOR BELT, RH
68194-14010

TA6#..CP

 1
68195 - SEAL, FRONT DOOR BELT, LH
68195-14010

TA6#..CP

 1
68610 - CHECK ASSY, FRONT DOOR
68610-14050

TA6#..CP

 2
68610A - PIN(FOR FRONT DOOR CHECK)
68617-30010

TA6#..CP

 2
Common parts
67772-22010
90159-40074
90168-40025
90179-06070
91651-40612
93319-15012
93530-54014
Linked diagrams
7404
