TA60L-ACMDSW (1981)

Toyota Carina

Production Aug 1981 - Sep 1983
Engine 2T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

Click highlighted areas on diagram

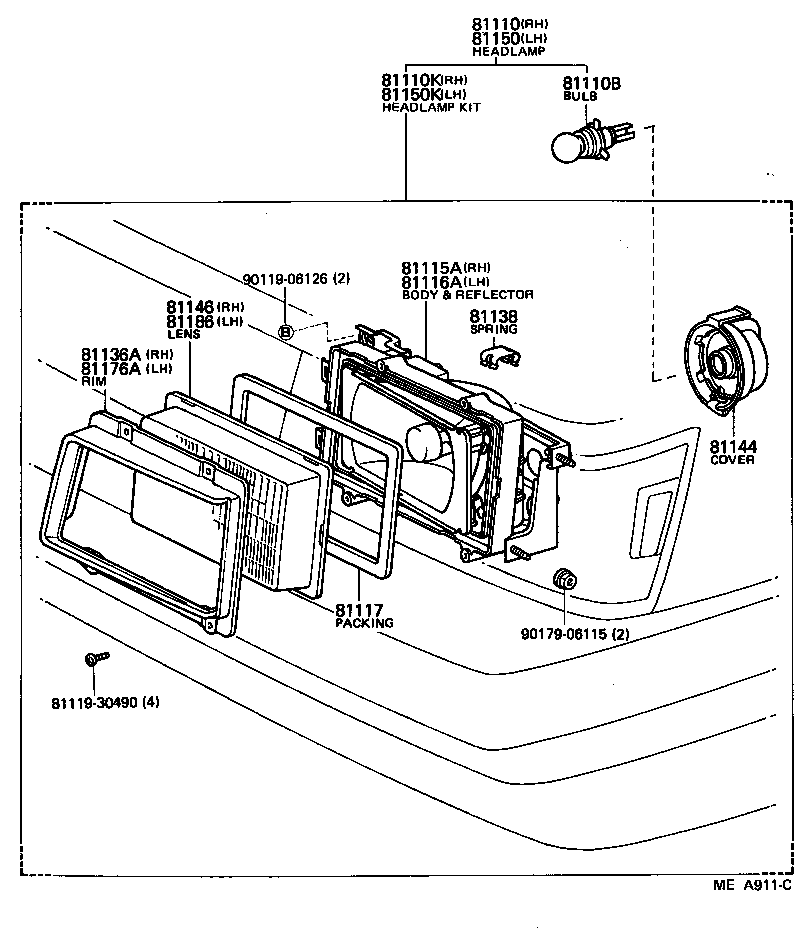

diagram 81110 81110B 81110K 81115A 81116A 81117 8111930490 81136A 81138 81144 81146 81150 81150K 81176A 81186 9011906126 9017906115
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-80128

CA60,TA60..LHD

 1
81110-80140

CA60,TA6#..LHD

HALOGEN,WHITE

 1
81110-80141

CA60,TA60..LHD;TA62..LHD..EUG

HALOGEN,YELLOW

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13013

CA60,TA60

12V 45/40W,WHITE,12V 45/40W

 2
90981-13015

CA60,TA6#

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN,WHITE

 2
90981-13013

CA60,TA60..LHD

12V 45/40W,WHITE,12V 45/40W

 2
90981-13016

CA60,TA60..LHD;TA62..LHD..EUG

12V 60/55W,*HAL *YE,12V 60/55W,HALOGEN,YELLOW

 2
81110K - HEADLAMP KIT, W/O SEALED BEAM, RH
04817-14040

CA60,TA6#..LHD

HALOGEN

 1
81115A - BODY AND REFLECTOR SUB-ASSY, HEADLAMP, RH
81115-14820

CA60,TA6#..LHD

HALOGEN

 1
81115-14650

CA60,TA60..LHD

 1
81116A - BODY AND REFLECTOR SUB-ASSY, HEADLAMP, LH
81116-14650

CA60,TA60..LHD

 1
81116-14820

CA60,TA6#..LHD

HALOGEN

 1
81117 - PACKING, HEADLAMP HOUSING
81147-30490

CA60,TA6#

 2
81136A - RIM, HEADLAMP, RH
81112-14820

CA60,TA6#

 1
81138 - SPRING, HEADLAMP
81138-20550

CA60,TA6#

 12
81144 - COVER, HEADLAMP, NO.1
81139-30490

CA60,TA6#

 2
81146 - LENS, HEADLAMP, RH
81146-14221

CA60,TA60..LHD

 1
81146-14461

CA60,TA6#..LHD

HALOGEN

 1
81150 - HEADLAMP ASSY, LH
81150-80137

CA60,TA6#..LHD

HALOGEN,WHITE

 1
81150-80138

CA60,TA60..LHD;TA62..LHD..EUG

HALOGEN,YELLOW

 1
81150-80125

CA60,TA60..LHD

 1
81150K - HEADLAMP KIT, W/O SEALED BEAM, LH
04818-14040

CA60,TA6#..LHD

HALOGEN

 1
81176A - RIM, HEADLAMP, LH
81152-14820

CA60,TA6#

 1
81186 - LENS, HEADLAMP, LH
81186-14221

CA60,TA60..LHD

 1
81186-14461

CA60,TA6#..LHD

HALOGEN

 1
Common parts
81119-30490
90119-06126
90179-06115
