TA60L-ACKDSW (1981)
Toyota Carina
(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

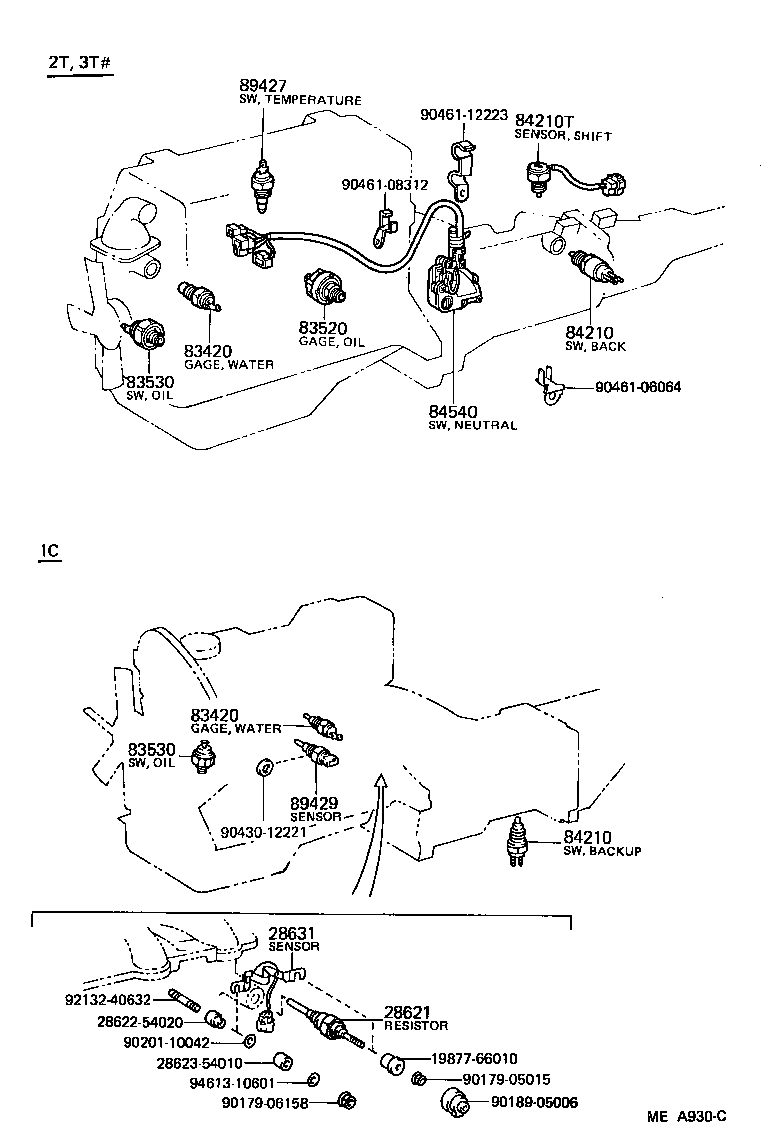

| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16010 |
CA60,TA6# DENSO |
1 | ||
| 83420-20020 |
CA60,TA6# YAZAKI |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16010 |
CA60,TA6# DENSO |
1 | ||
| 83420-20020 |
CA60,TA6# YAZAKI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-10020 |
TA60..EUG |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-10020 |
TA60..EUG |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-10051 |
TA6#..MTM |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-10051 |
TA6#..MTM |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-54020 | ||||
| 28623-54010 | ||||
| 90179-05015 | ||||
| 90179-06158 | ||||
| 90189-05006 | ||||
| 90201-10042 | ||||
| 90430-12221 | ||||
| 90461-06064 | ||||
| 90461-08312 | ||||
| 90461-12223 | ||||
| 92132-40632 | ||||
| 94613-10601 | ||||
(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

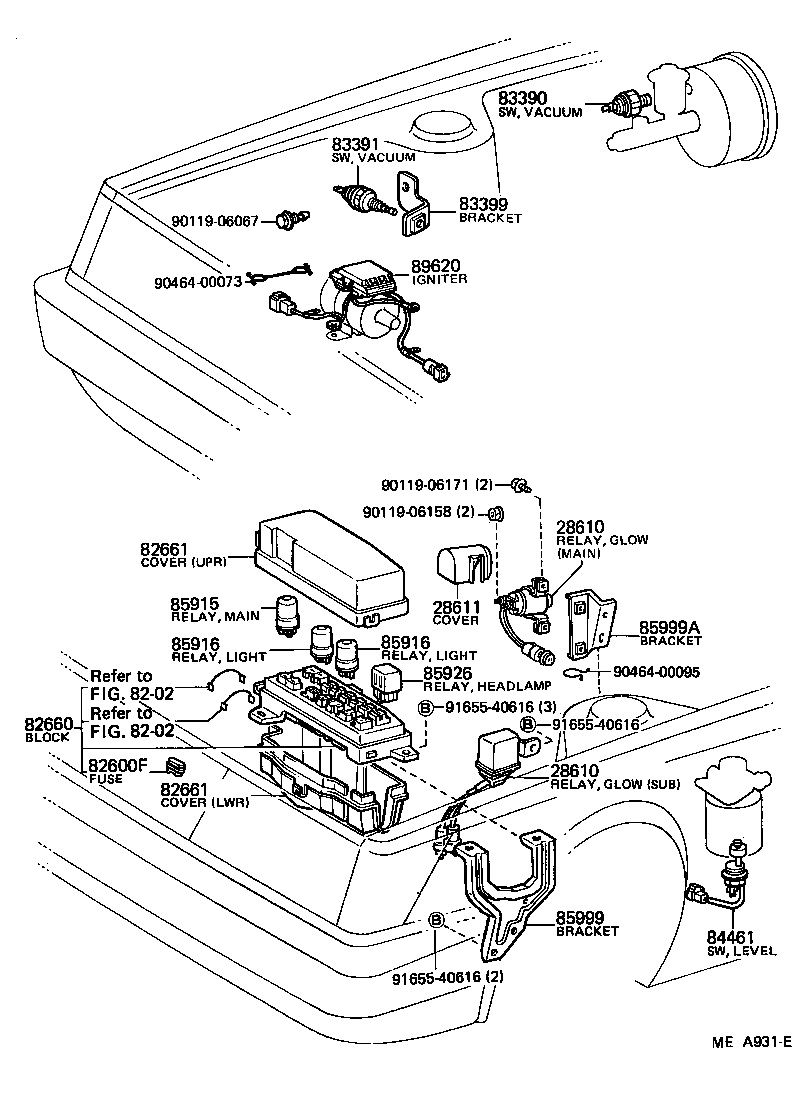

| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
TA6# 20A,YELLOW,20A |
1 | ||
| 90982-09002 |
TA6# 10A,10A |
1 | ||
| 90982-09003 |
CA60,TA6# 15A,15A |
1 | ||
| 90982-09005 |
CA60,TA6# 7.5A,7.5A |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-14110 |
CA60,TA6# YAZAKI |
1 | ||
| 82660-14090 |
CA60,TA6# SUMITOMO |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-14030 |
CA60,TA6# UPR,YAZAKI |
1 | ||
| 82661-14020 |
CA60,TA6# UPR,SUMITOMO |
1 | ||
| 82661-22030 |
CA60,TA6# LWR,SUMITOMO |
1 | ||
| 82661-22060 |
CA60,TA6# LWR,YAZAKI |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-14030 |
CA60,TA6# UPR,YAZAKI |
1 | ||
| 82661-14020 |
CA60,TA6# UPR,SUMITOMO |
1 | ||
| 82661-22030 |
CA60,TA6# LWR,SUMITOMO |
1 | ||
| 82661-22060 |
CA60,TA6# LWR,YAZAKI |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
CA60,TA6# DENSO |
1 | ||
| 90987-02002 |
CA60,TA6# MARUKO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
CA60,TA6# |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
CA60,TA6# |
2 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-14020 |
CA60,TA6#..EUR |
1 | ||
| 85926-30020 |
CA60,TA62;TA60..DLX,XE;TA60..LHD..GL |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-14090 |
TA6# |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-14310 |
TA6#..EUG |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90119-06158 | ||||
| 90119-06171 | ||||
| 90464-00073 | ||||
| 90464-00095 | ||||
| 91655-40616 | ||||
| Linked diagrams | ||||
| 8202 | ||||
(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
CA60,TA6# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
TA6# 20A,YELLOW,20A |
1 | ||
| 90982-09002 |
TA6# 10A,10A |
1 | ||
| 90982-09003 |
CA60,TA6# 15A,15A |
1 | ||
| 90982-09005 |
CA60,TA6# 7.5A,7.5A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
CA60,TA6# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-32020 |
CA60,TA6# 30A,TOKAIRIKA |
3 | ||
| 82650-20010 |
TA6# |
3 | ||
| 82650-20011 |
CA60,TA6# 30A,MATSUSHITA |
3 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-14140 |
CA60,TA6#..LHD NO.1,DRIVER SIDE |
1 | ||
| 82660-14010 |
CA60,TA6#..LHD NO.1,DRIVER SIDE |
1 | ||
| 82660-22010 |
CA60,TA6# NO.2,ASSISTANT SIDE |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-14140 |
CA60,TA6#..LHD NO.1,DRIVER SIDE |
1 | ||
| 82660-14010 |
CA60,TA6#..LHD NO.1,DRIVER SIDE |
1 | ||
| 82660-22010 |
CA60,TA6# NO.2,ASSISTANT SIDE |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
CA60,TA6# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
CA60,TA60;TA62..DLX,GL;TA62..XE..SDZ DENSO |
1 | ||
| 90987-02004 |
CA60,TA6# DENSO |
1 | ||
| 90987-02002 |
CA60,TA6# MARUKO |
1 | ||
| 90987-02002 |
CA60,TA60;TA62..DLX,GL;TA62..XE..SDZ MARUKO |
1 | ||
| 85912A - RELAY, DEFOGGER TIMER | ||||
| 85912-22010 |
CA60,TA6#..LHD..EUR W/DEFOGGER TIMER |
1 | ||
| 85925A - RELAY, RED INDICATOR | ||||
| 90987-03001 |
CA60,TA6#..LHD..EUG |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02004 |
CA60,TA6#..CP,SED |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-12020 |
TA60..XE;CA60,TA6#..EUR FR WIPER |
1 | ||
| 85940-14040 |
TA6#..CP RR WIPER |
1 | ||
| Common parts | ||||
| 82711-14620 | ||||
| 90119-06029 | ||||
| 90119-06049 | ||||
| 90179-06183 | ||||
| 90189-05010 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 93540-55014 | ||||
(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

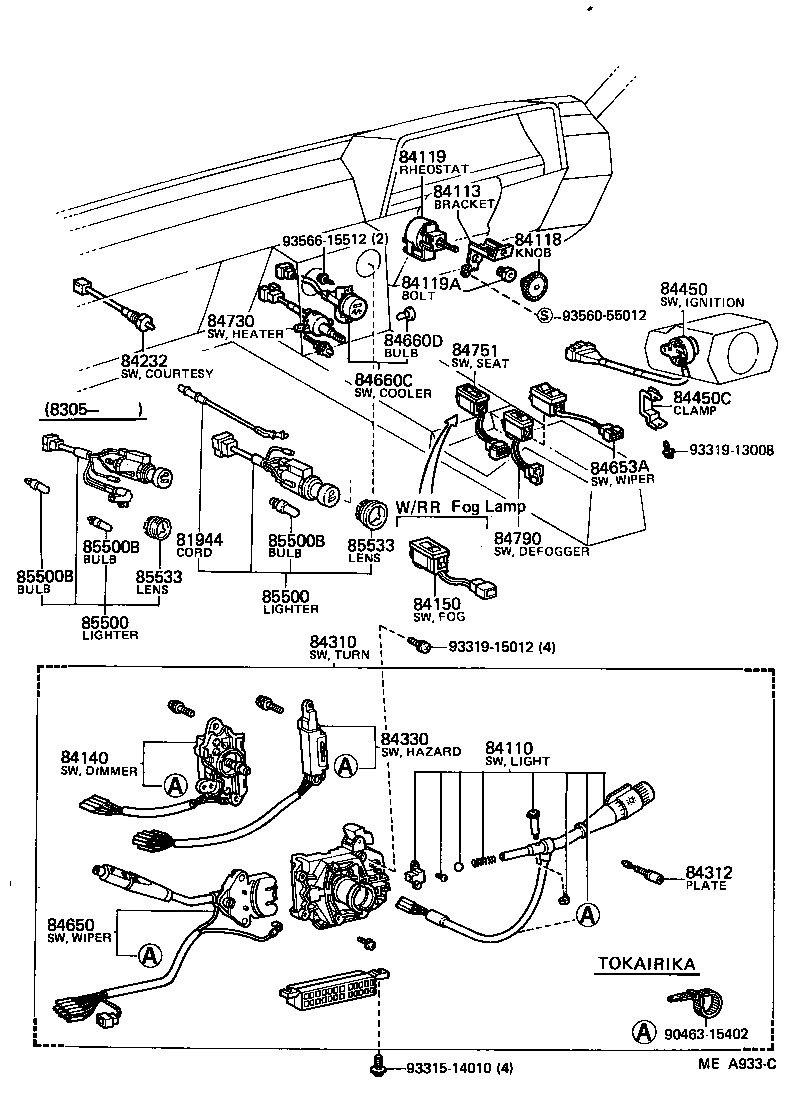

| 81944 - CORD, OPTICAL FIBER | ||||
| 81944-30010 |
CA60,TA6# |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19605 |
CA60,TA6#..LHD |
1 | ||
| 84112-19355 |
CA60,TA6#..LHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19135 |
CA60,TA6#..LHD |
1 | ||
| 84140-14020 |
CA60,TA6#..LHD |
1 | ||
| 84150 - SWITCH ASSY, FOG LAMP | ||||
| 84160-14040 |
TA62..CP,SED;CA60,TA60..EUG |
1 | ||
| 84232 - SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX) | ||||
| 84242-24010 |
CA60,TA6# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-14240 |
TA60..LHD..XE;CA60,TA6#..LHD..EUR |
1 | ||
| 84310-14610 |
TA60..LHD..XE;CA60,TA6#..LHD..EUR |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
CA60,TA6# |
1 | ||
| 84312-20020 |
CA60,TA6#..LHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-19105 |
CA60,TA6#..LHD |
1 | ||
| 84332-14100 |
CA60,TA6#..LHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-30131 |
CA60,TA6#..LHD |
1 | ||
| 84450-60080 |
CA60,TA60..LHD;TA62..LHD..EUG W/TILT STEERING |
1 | ||
| 84450C - CLAMP,(FOR IGNITION SWITCH WIRE) | ||||
| 82711-14530 |
CA60,TA60;TA62..EUG |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19365 |
TA60..LHD..XE;CA60,TA6#..LHD..EUR |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-14020 |
TA6#..CP |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-14050 |
CA60,TA60;TA62..EUG |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-14020 |
CA60,TA60;TA62..EUG 14V 1.4W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-14150 |
CA60,TA6#..LHD |
1 | ||
| 84732-14151 |
CA60,TA6#..LHD |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-14150 |
CA60,TA6#..LHD..EUR W/DEFOGGER TIMER |
1 | ||
| 84790-14160 |
CA60,TA60;TA62..EUG,SDZ |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-14131 |
CA60,TA6# |
1 | ||
| 85500-14090 |
CA60,TA6#..LHD |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-14131 |
CA60,TA6# |
1 | ||
| 85500-14090 |
CA60,TA6#..LHD |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
CA60,TA6# 14V 1.4W |
2 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
CA60,TA6# 14V 1.4W |
2 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
CA60,TA6# 14V 1.4W |
2 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-14020 |
CA60,TA6# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-14020 |
CA60,TA6# |
1 | ||
| Common parts | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||
| 93560-55012 | ||||
| 93566-15512 | ||||
(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

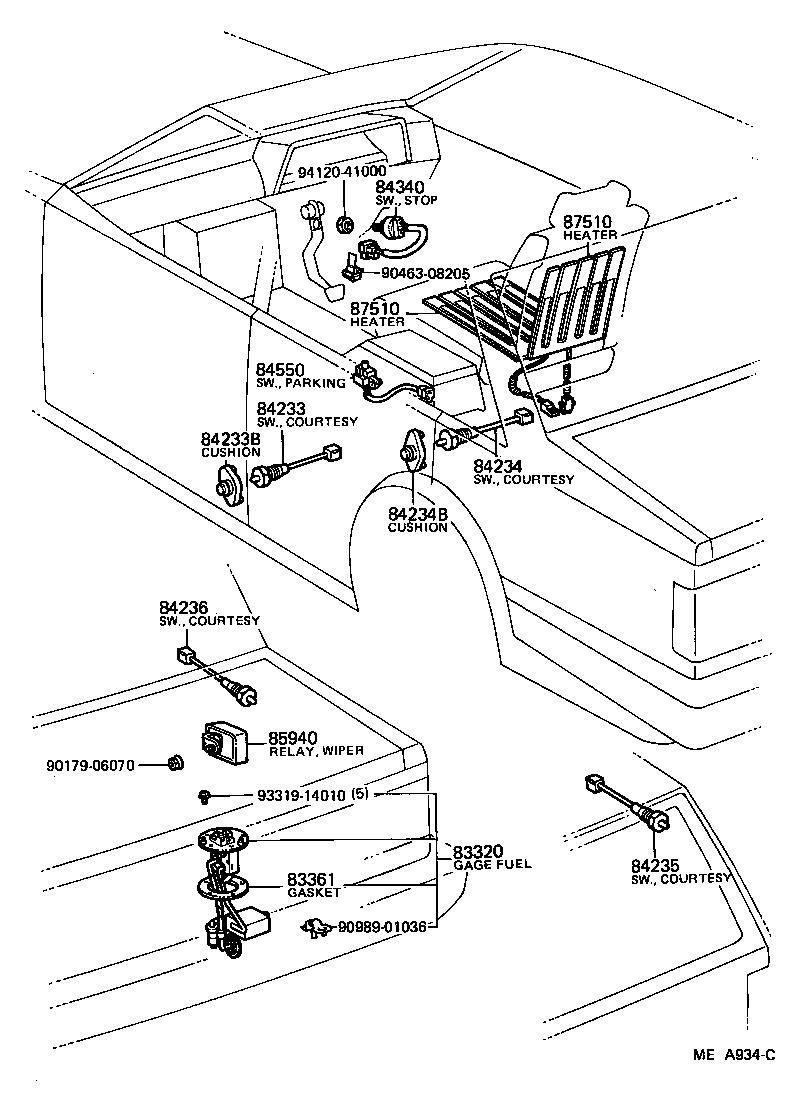

| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19298 |
CA60,TA6#..DLX,GL |
1 | ||
| 83320-19535 |
TA6#..CP W/LEVEL WARNING LAMP |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
CA60,TA6# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-95501 |
TA6#..CP |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-20030 |
TA6#..CP |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20060 |
TA6#..CP |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
CA60,TA6# |
1 | ||
| 84340-22071 |
CA60,TA6# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
CA60,TA6# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-12020 |
TA60..XE;CA60,TA6#..EUR FR WIPER |
1 | ||
| 85940-14040 |
TA6#..CP RR WIPER |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90463-08205 | ||||
| 90989-01036 | ||||
| 93319-14010 | ||||
| 94120-41000 | ||||
