TA60L-ACKDSW (1981)

Toyota Carina

Production Aug 1981 - Sep 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

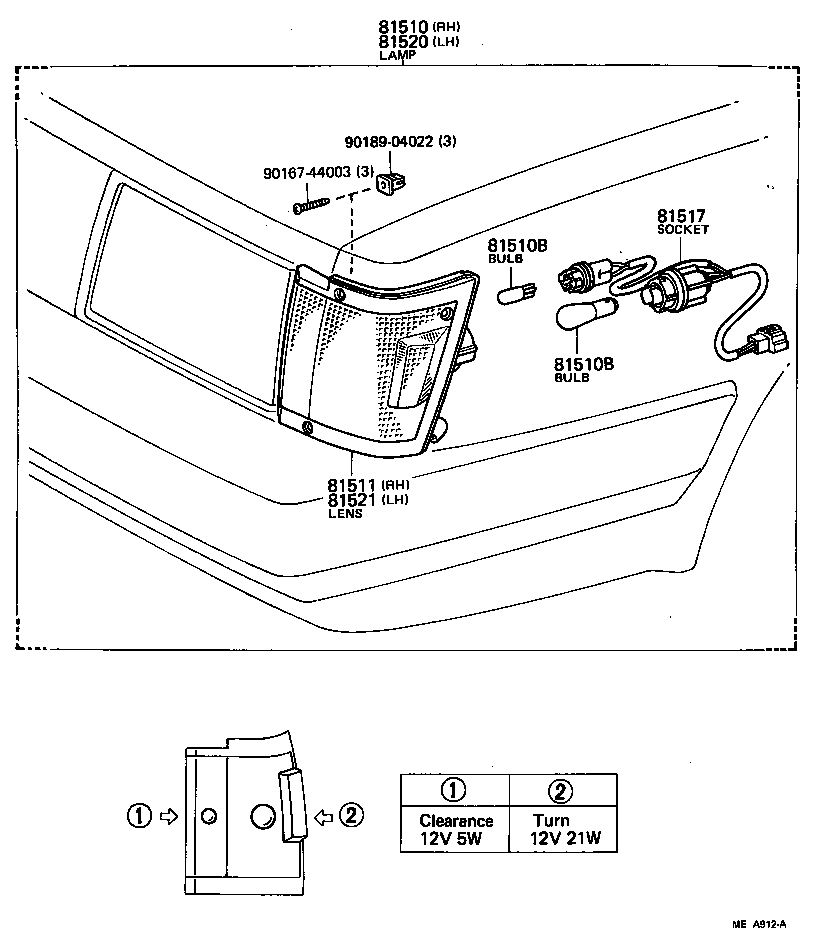

Click highlighted areas on diagram

diagram 81510 81510B 81510B 81511 81517 81520 81521 9016744003 9018904022
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-19665

CA60,TA6#

 1
81510-19666

CA60,TA6#

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11050

CA60,TA6#

12V 5W,12V 5W

 2
99132-11210

CA60,TA6#

12V 21W,12V 21W

 2
99132-12050

CA60,TA6#

12V 5W,12V 5W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11050

CA60,TA6#

12V 5W,12V 5W

 2
99132-11210

CA60,TA6#

12V 21W,12V 21W

 2
99132-12050

CA60,TA6#

12V 5W,12V 5W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-14230

CA60,TA6#

 1
81517 - SOCKET, FRONT TURN SIGNAL LAMP
81515-14231

CA60,TA6#

 2
81515-14230

CA60,TA6#

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-19666

CA60,TA6#

 1
81520-19665

CA60,TA6#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-14230

CA60,TA6#

 1
Common parts
90167-44003
90189-04022
