TA60L-ACKDSW (1981)

Toyota Carina

Production Aug 1981 - Sep 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

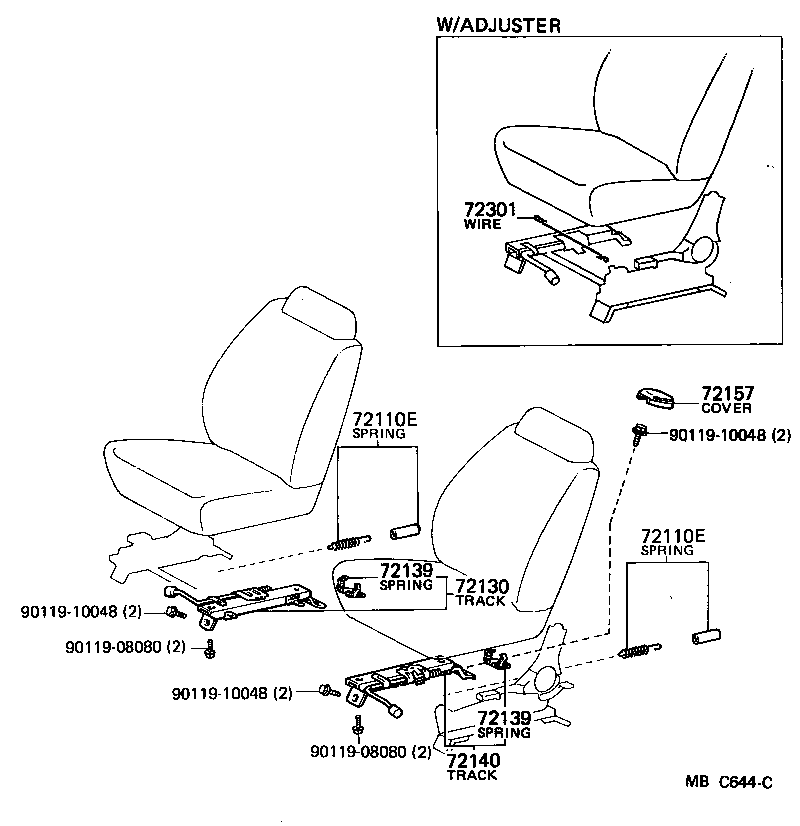

Click highlighted areas on diagram

diagram 72110E 72110E 72130 72139 72139 72140 72157 72301 9011908080 9011908080 9011910048 9011910048 9011910048
Part # Description Qty Price
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90507-18002

TA6#..CP

 1
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90507-18002

TA6#..CP

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-14280

TA6#..CP..LHD

 1
72139 - SPRING, SEAT TRACK COVER
72139-14010

CA60,TA6#

 2
72139 - SPRING, SEAT TRACK COVER
72139-14010

CA60,TA6#

 2
72140 - TRACK ASSY, LH SEAT, INNER
72140-14260

TA60..CP..EUG

 1
72140-14270

TA6#..CP..LHD

W/ADJUSTER

 1
72157 - COVER, SEAT TRACK BRACKET, INNER
72157-14010

CA60,TA6#

 2
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-14050

TA6#..CP

 1
Common parts
90119-08080
90119-10048
