TA60L-ACKDSW (1981)

Toyota Carina

Production Aug 1981 - Sep 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

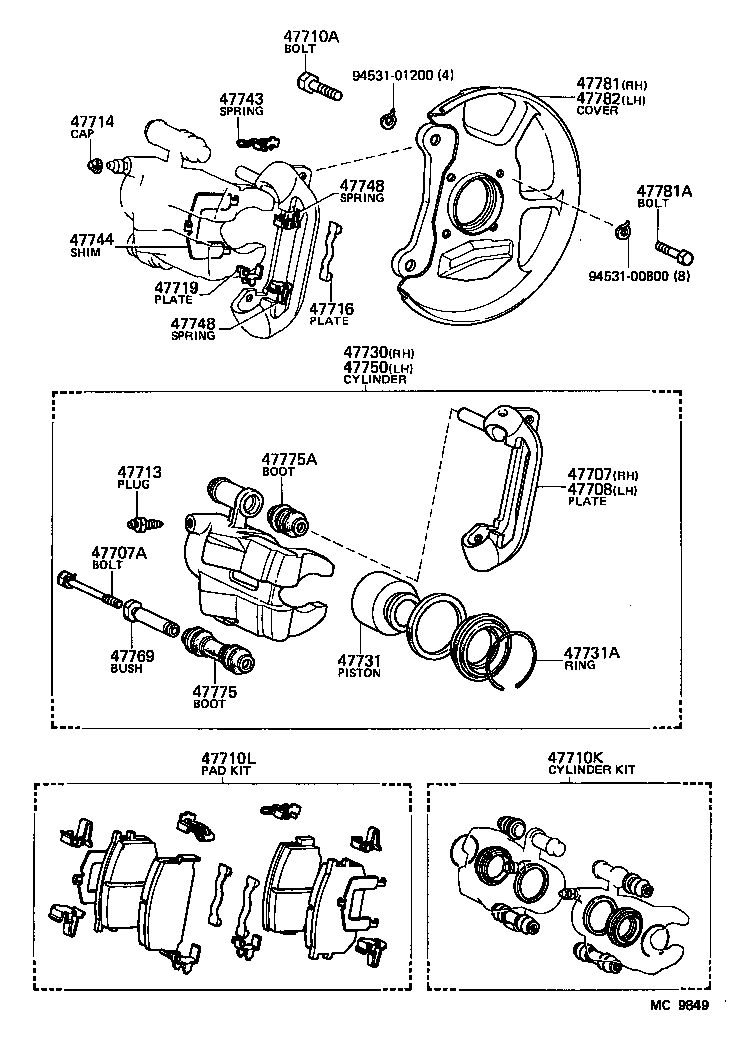

ILLUST NO. 1 OF 2(8108- )

Click highlighted areas on diagram

diagram 47707 47707A 47708 47710A 47710K 47710L 47713 47714 47716 47719 47730 47731 47731A 47743 47744 47748 47748 47750 47769 47775 47775A 47781 47781A 47782 9453100800 9453101200
Part # Description Qty Price
47707 - PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH
47707-14010

CA60,TA6#

 1
47707A - BOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)
90119-08431

CA60,TA6#

 2
90119-08199

CA60,TA6#

 2
47708 - PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH
47708-14010

CA60,TA6#

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12064

CA60,TA6#

 4
47710K - CYLINDER KIT, DISC BRAKE, FRONT
04479-14060

CA60,TA6#

 1
47710L - PAD KIT, DISC BRAKE, FRONT
04491-14150

CA60,TA6#

 1
47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

CA60,TA6#

 2
47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

CA60,TA6#

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-14080

CA60,TA6#

 2
47719 - PLATE, FRONT DISC BRAKE PAD GUIDE
47736-12010

CA60,TA6#

 2
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-12250

CA60,TA6#

 1
47730-14050

CA60,TA6#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-14070

CA60,TA6#

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-60004

CA60,TA6#

 2
47743 - SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)
47743-12010

CA60,TA6#

LH

 1
47748-12050

CA60,TA6#

RH

 1
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-14050

CA60,TA6#

 2
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47743-14040

CA60,TA6#

LWR

 2
47748-14050

CA60,TA6#

UPR

 2
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47743-14040

CA60,TA6#

LWR

 2
47748-14050

CA60,TA6#

UPR

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-14130

CA60,TA6#

 1
47750-12250

CA60,TA6#

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-28010

CA60,TA6#

 2
47769-14010

CA60,TA6#

 2
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-14010

CA60,TA6#

 2
47775A - BOOT, PIN
47776-14010

CA60,TA6#

 2
47781 - COVER, DISC BRAKE DUST, FRONT RH
47703-14080

CA60,TA6#

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90101-10062

CA60,TA6#

 8
47782 - COVER, DISC BRAKE DUST, FRONT LH
47704-14080

CA60,TA6#

 1
Common parts
94531-00800
94531-01200

ILLUST NO. 2 OF 2(8108- )

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-14210

CA60,TA6#

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-14090

CA60,TA6#

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-14230

CA60,TA6#

 1
