TA14R-MSB (1975)
Toyota Carina
Production
Oct 1975
-
Jul 1977
Engine
2TB
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

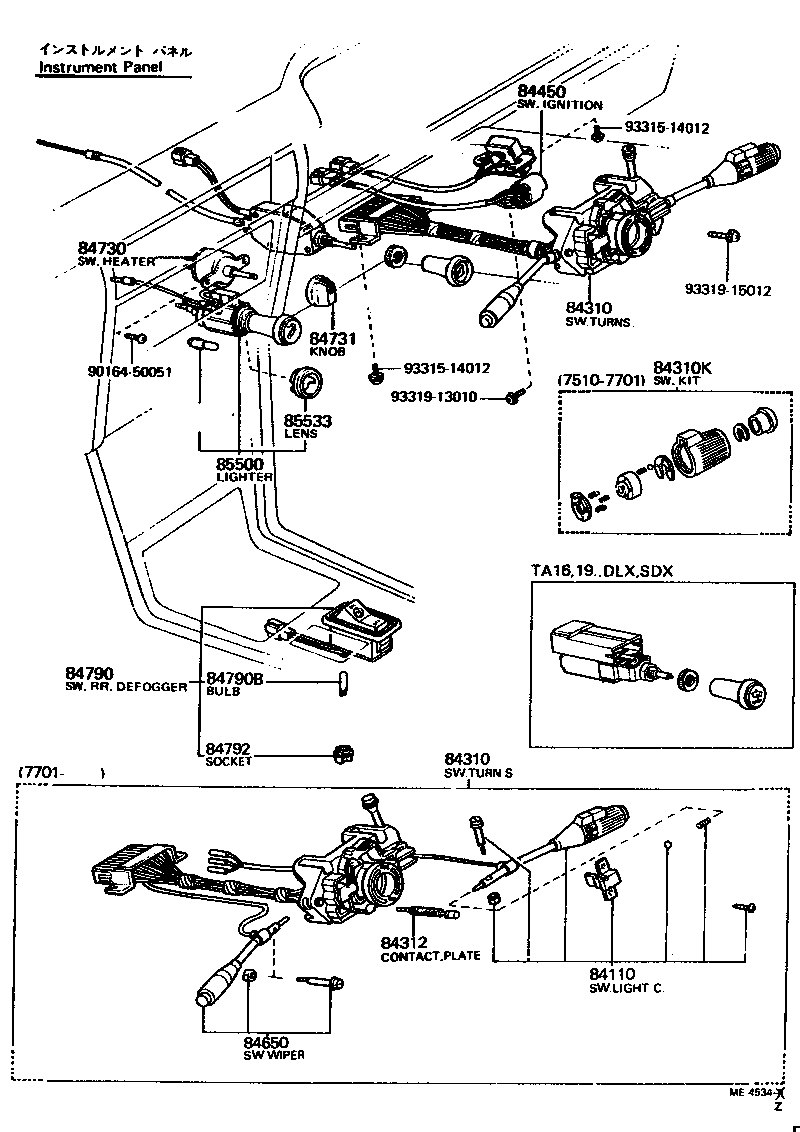

(7510-7707)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19015 |
TA14..RHD |
1 | ||
| 84110-14010 |
TA1# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12140 |
TA14..RHD |
1 | ||
| 84310-20062 |
TA1#..RHD |
1 | ||
| 84310-12141 |
TA14..RHD |
1 | ||
| 84310-20091 |
TA1#..RHD EUR.SPEC. |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12140 |
TA14..RHD |
1 | ||
| 84310-20062 |
TA1#..RHD |
1 | ||
| 84310-12141 |
TA14..RHD |
1 | ||
| 84310-20091 |
TA1#..RHD EUR.SPEC. |
1 | ||
| 84310K - SWITCH KIT, LIGHT CONTROL | ||||
| 04841-30110 |
TA14..RHD |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20010 |
TA14 |
1 | ||
| 84312-20011 |
TA14 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-20070 |
TA1# |
1 | ||
| 84450-14021 |
TA14..RHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19015 |
TA14..RHD |
1 | ||
| 84650-14010 |
TA1# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-20050 |
TA1#..RHD |
1 | ||
| 84732-14030 |
TA14 |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-20010 |
TA1# |
1 | ||
| 84731-12010 |
TA14 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-14040 |
TA14 |
1 | ||
| 84790-14020 |
TA1# |
1 | ||
| 84790-14041 |
TA14 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11018 |
TA14 12V 1.2W W/O SOCKET,12V 1.4W |
1 | ||
| 90981-11009 |
TA1# 12V 1.5W |
1 | ||
| 84792 - SOCKET SUB-ASSY, REAR WINDOW DEFOGGER SWITCH | ||||
| 83101-14010 |
TA14 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-14010 |
TA1# |
1 | ||
| 85500-30230 |
TA14..DLX,ST |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20010 |
TA14..DLX,ST |
1 | ||
| Common parts | ||||
| 90164-50051 | ||||
| 93315-14012 | ||||
| 93319-13010 | ||||
| 93319-15012 | ||||

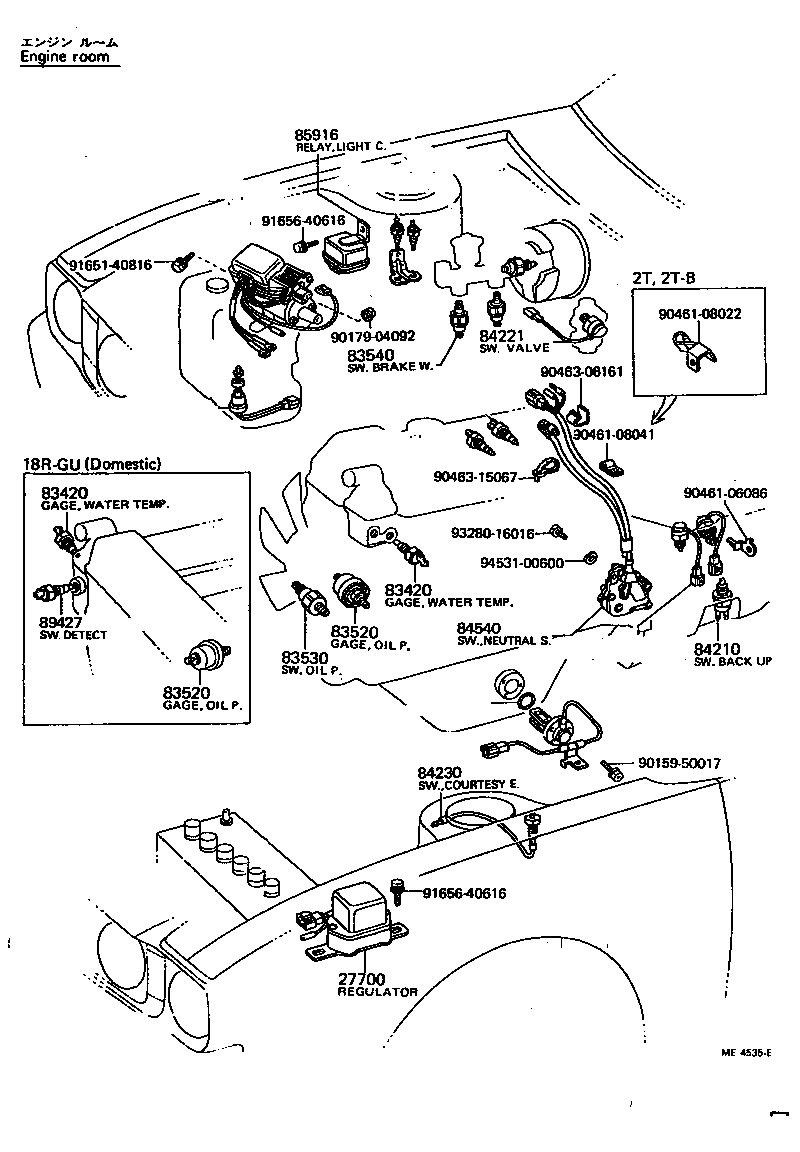

(7510-7707)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-33010 |
T,2T#..TA1# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-12010 |
TA1# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-12010 |
TA1# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12020 |
TA1# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-10051 |
TA1#..MTM |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 85919-20012 |
TA14 |
1 | ||
| 85919-20011 |
TA14 |
1 | ||
| Common parts | ||||
| 90159-50017 | ||||
| 90179-04092 | ||||
| 90461-06086 | ||||
| 90461-08022 | ||||
| 90461-08041 | ||||
| 90463-06161 | ||||
| 90463-15067 | ||||
| 91651-40816 | ||||
| 91656-40616 | ||||
| 93280-16016 | ||||
| 94531-00600 | ||||

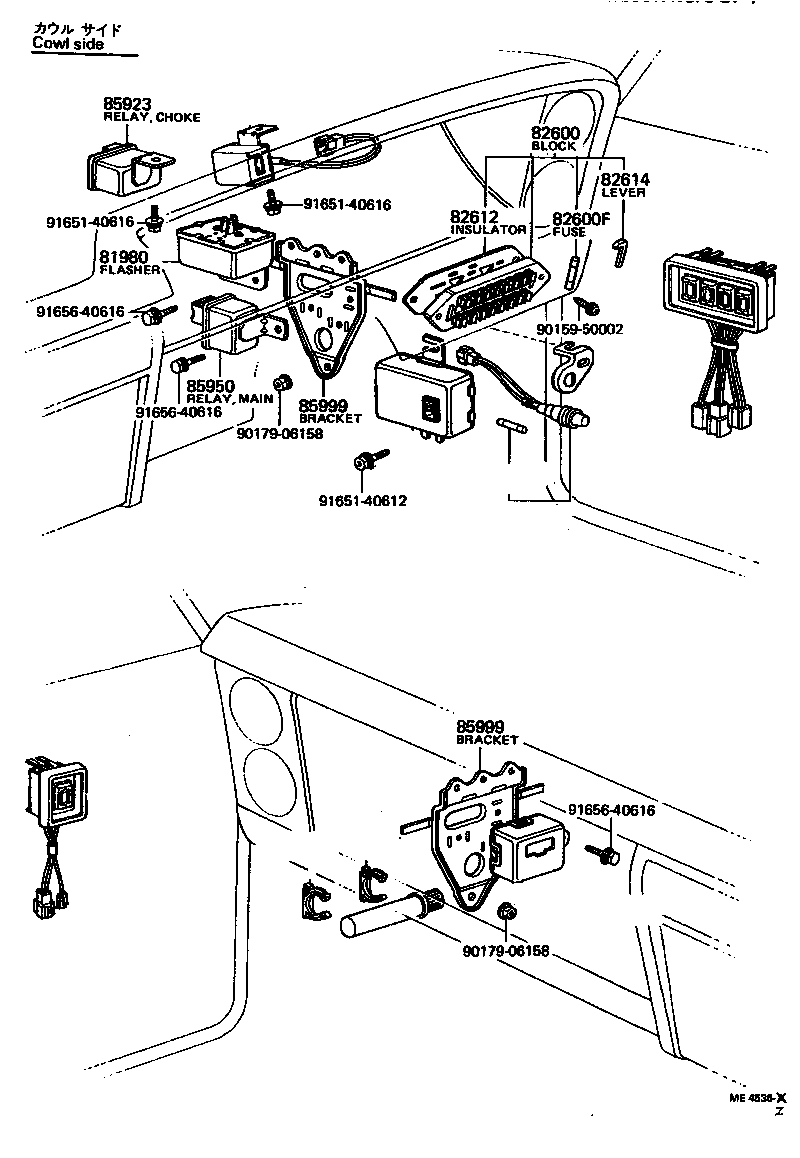

(7510-7707)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12030 |
TA14 |
1 | ||
| 81980-20070 |
TA1# |
1 | ||
| 81980-20080 |
TA1# EUR.SPEC. |
1 | ||
| 82600 - BLOCK ASSY, FUSE | ||||
| 82600-14020 |
TA14 |
1 | ||
| 82600-14021 |
TA14 |
1 | ||
| 82600-20020 |
TA1# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62905 |
TA14 5A,5A |
1 | ||
| 99118-62910 |
TA1# 10A |
6 | ||
| 90982-07008 |
TA14 5A |
1 | ||
| 99118-62915 |
TA1# 15A,15A |
6 | ||
| 99118-62920 |
TA1# 20A,20A |
4 | ||
| 82612 - INSULATOR, FUSE BLOCK TERMINAL | ||||
| 82612-20020 |
TA14 |
1 | ||
| 82614 - LEVER, FUSE | ||||
| 82614-30010 |
TA14 |
1 | ||
| 85950 - RELAY ASSY, MAIN SWITCH | ||||
| 85915-14021 |
TA14 |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-14020 |
TA14 |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-14020 |
TA14 |
1 | ||
| Common parts | ||||
| 90159-50002 | ||||
| 90179-06158 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91656-40616 | ||||

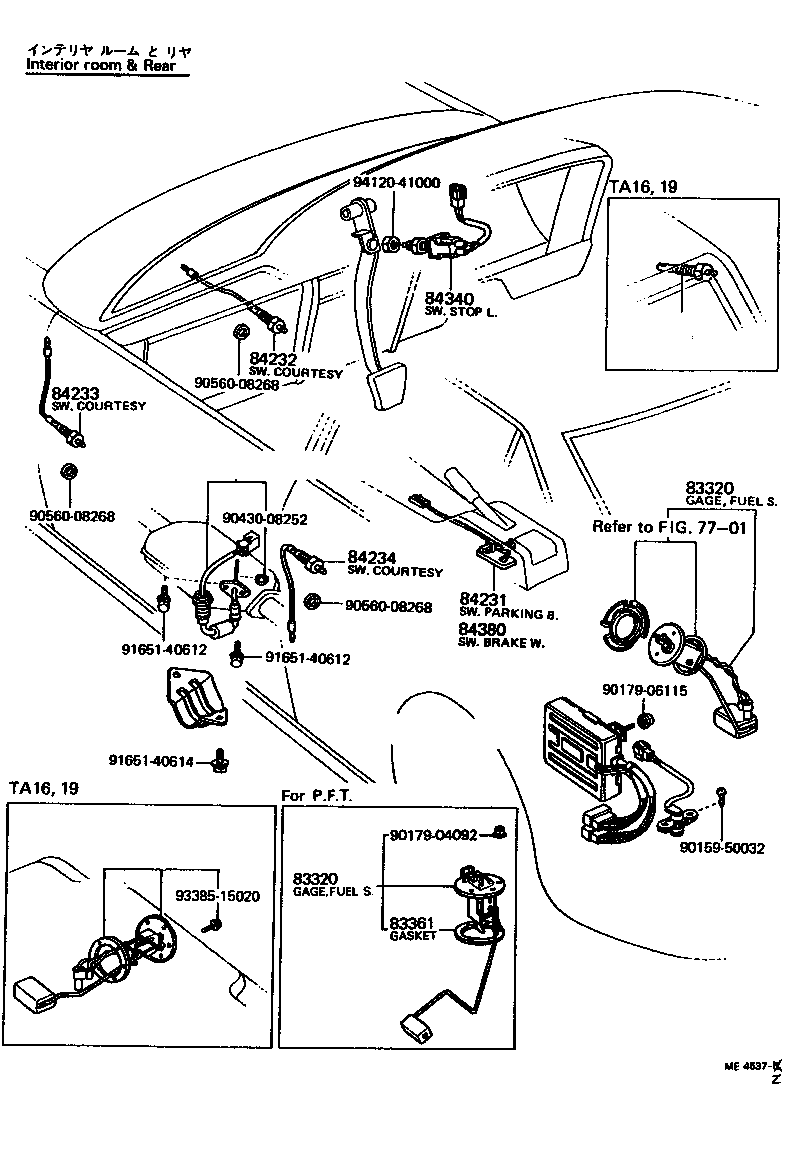

(7510-7707)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19147 |
TA14 |
1 | ||
| 83320-19145 |
TA1# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19147 |
TA14 |
1 | ||
| 83320-19145 |
TA1# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
TA1# |
1 | ||
| 84231 - SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE) | ||||
| 84380-12030 |
TA14 |
1 | ||
| 84380-14010 |
TA1# FOR SINGLE M/C. |
1 | ||
| 84232 - SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX) | ||||
| 84230-14030 |
TA14..ST |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-20020 |
TA1# |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30023 |
TA14 TANDEM MASTER CYLINDER |
1 | ||
| 84340-10012 |
TA1# FOR SINGLE M/C. |
1 | ||
| 84340-35010 |
TA14..RHD TOKAIRIKA |
1 | ||
| 84340-12021 |
TA14..RHD MATSUSHITA |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-12040 |
TA14 |
1 | ||
| Common parts | ||||
| 90159-50032 | ||||
| 90179-04092 | ||||
| 90179-06115 | ||||
| 90430-08252 | ||||
| 90560-08268 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 93385-15020 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 7701 | ||||
