TA14R-MSB (1975)

Toyota Carina

Production Oct 1975 - Jul 1977
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7510-7707)

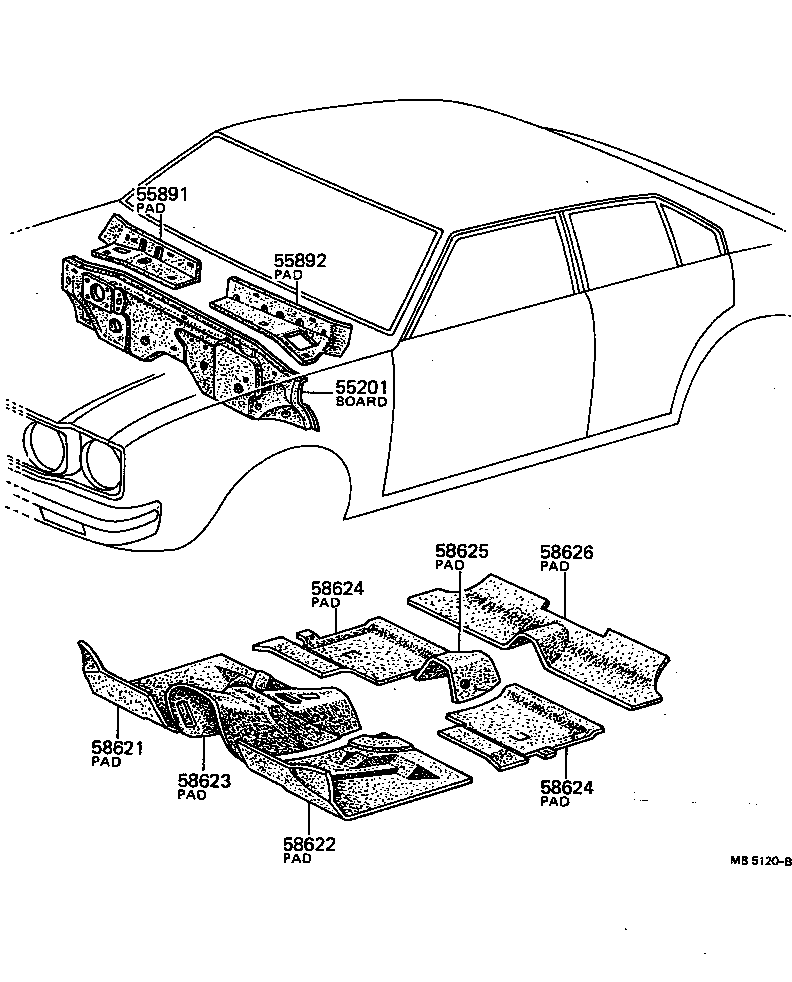

Click highlighted areas on diagram

diagram 55201 55891 55892 58621 58622 58623 58624 58624 58625 58626
Part # Description Qty Price
55201 - BOARD SUB-ASSY, DASH PANEL SILENCER
55210-14010

TA14..RHD

 1
55891 - PAD, COWL TOP SILENCER, INNER RH
55891-14010

TA1#..RHD

 1
55891-14011

TA14..RHD

 1
55892 - PAD, COWL TOP SILENCER, INNER LH
55892-14010

TA1#..RHD

 1
55892-14011

TA14..RHD

 1
58621 - PAD, FLOOR SILENCER, FRONT RH
58621-14011

TA14

 1
58621-14010

TA1#

 1
58622 - PAD, FLOOR SILENCER, FRONT LH
58621-14011

TA14

 1
58622-14020

TA1#

 1
58623 - PAD, FLOOR SILENCER, FRONT CENTER
58617-14020

TA1#..ST,STD

 1
58623-14010

TA14..MTM

 1
58624 - PAD, FLOOR SILENCER, REAR SIDE
58624-14010

TA1#

RH.

 1
58625-14010

TA1#

LH.

 1
58624-14011

TA14

 2
58624 - PAD, FLOOR SILENCER, REAR SIDE
58624-14010

TA1#

RH.

 1
58625-14010

TA1#

LH.

 1
58624-14011

TA14

 2
58625 - PAD, FLOOR SILENCER, REAR CENTER
58626-14011

TA14

 1
58626-14010

TA1#

 1
58626 - PAD, FLOOR SILENCER, REAR
58657-14010

TA1#

 1
