TA14R-MSB (1975)
Toyota Carina
Production
Oct 1975
-
Jul 1977
Engine
2TB
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7012-7707)

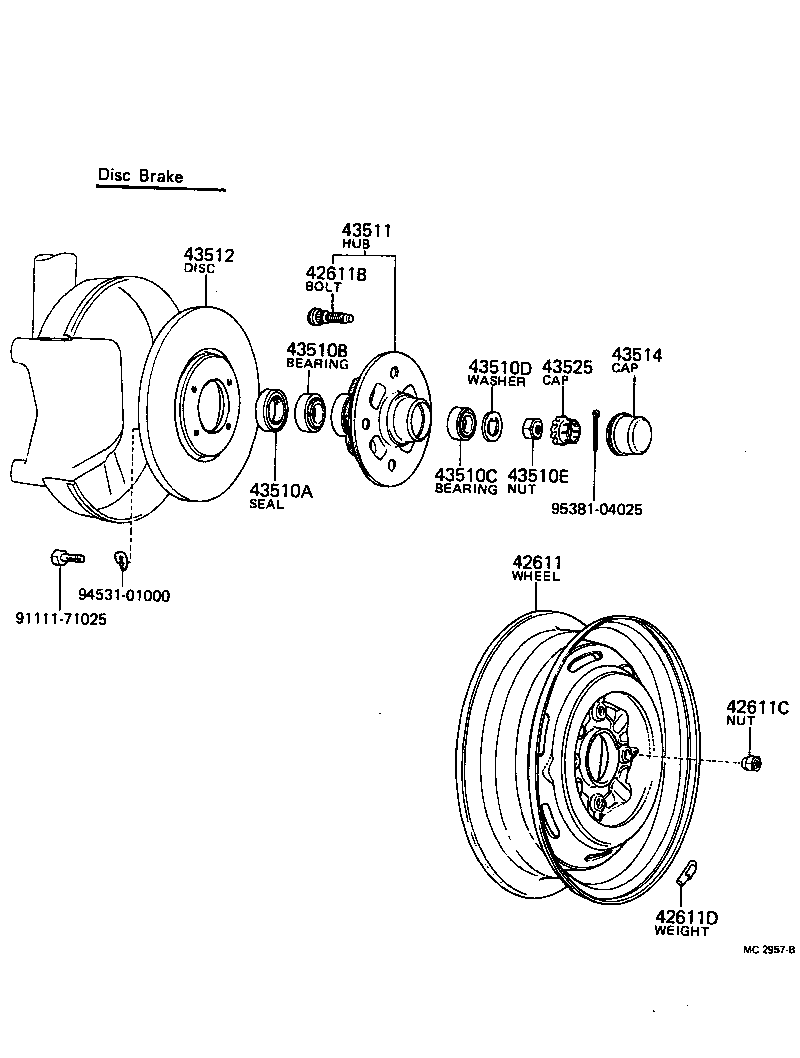

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611 - WHEEL, DISC | ||||
| 42611-20040 |
TA1# 4J-13 |
2 | ||
| 42611-22010 |
TA1# |
2 | ||
| 42611-14100 |
TA14..ST 4.5J-13,FOR SILVER METALLIC |
2 | ||
| 42611-12401 |
TA14..ST 4.5J-13 |
2 | ||
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02036 |
TA14 12-1.5PX33-20.5,FOR DISC BRAKE |
8 | ||
| 90942-02021 |
TA1# |
8 | ||
| 42611C - NUT, HUB (FOR FRONT AXLE) | ||||
| 90942-01021 |
TA14 CAP NUT,H=29.5 |
8 | ||
| 42611D - WEIGHT, BALANCE(FOR FRONT DISC WHEEL) | ||||
| 90942-03020 |
TA1# 30G. |
1 | ||
| 90942-03031 |
TA1# 80G. |
1 | ||
| 90942-03041 |
TA1# 10G. |
1 | ||
| 90942-03029 |
TA1# 70G. |
1 | ||
| 90942-03025 |
TA1# 50G. |
1 | ||
| 90942-03027 |
TA1# 60G. |
1 | ||
| 90942-03017 |
TA1# 20G. |
1 | ||
| 90942-03022 |
TA1# 40G. |
1 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-40108 |
TA1# TA2 40 52 7 |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-26027 |
TA1# L44649/L44610 |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-17017 |
TA1# LM 11749/710 |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-16010 |
TA1# |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90170-16137 |
TA1# |
2 | ||
| 43511 - HUB, FRONT AXLE | ||||
| 43502-19015 |
TA1# |
2 | ||
| 43512 - DISC, FRONT | ||||
| 43512-20032 |
TA1# |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-20010 |
TA1# |
2 | ||
| 43525 - CAP, FRONT WHEEL ADJUSTING LOCK | ||||
| 43525-20011 |
TA1# |
2 | ||
| Common parts | ||||
| 91111-71025 | ||||
| 94531-01000 | ||||
| 95381-04025 | ||||
