TA14R-MSB (1975)

Toyota Carina

Production Oct 1975 - Jul 1977
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7510-7707)RHD..MTM

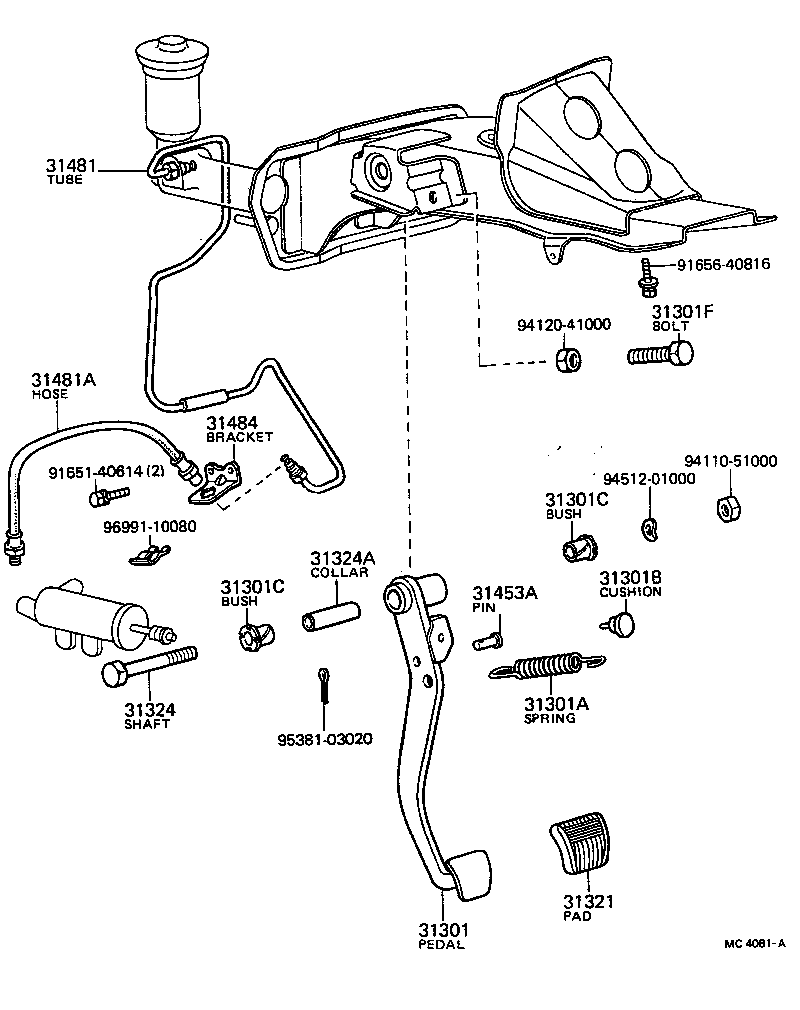

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31481 31481A 31484 9165140614 9165640816 9411051000 9412041000 9451201000 9538103020 9699110080
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-14011

TA14..RHD..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-16148

TA1#..MTM

 1
90506-14002

TA14..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

TA1#..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

TA1#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

TA1#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

TA1#..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14010

TA1#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

TA1#..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

TA1#..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08001

TA14..MTM

 1
90240-08040

TA1#..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-14031

TA14..RHD..MTM

 1
31481A - HOSE, CLUTCH, NO.1
96930-31242

TA1#..MTM

 1
96940-31244

TA14..MTM

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-14050

TA14..MTM

 1
31484-14021

TA14..MTM

 1
Common parts
91651-40614
91656-40816
94110-51000
94120-41000
94512-01000
95381-03020
96991-10080
