TA14R-MSB (1975)
Toyota Carina
Production
Oct 1975
-
Jul 1977
Engine
2TB
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7012-7707)

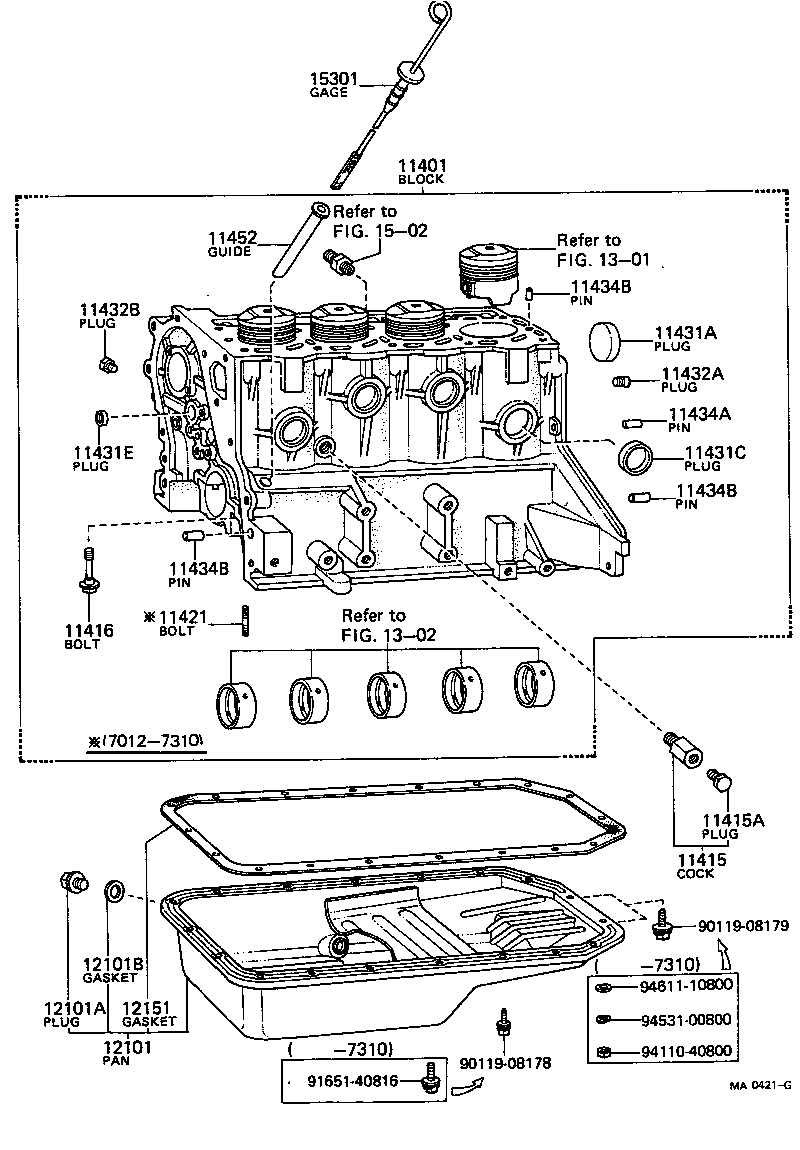

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-29115 |
2T..TA14 |
1 | ||
| 11401-29116 |
2T..TA14 |
1 | ||
| 11401-29048 |
2TB..TA14 |
1 | ||
| 11401-29145 |
2TB..TA14 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-03833 |
T,2T#..TA1# |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
T,2T#..TA1# |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02032 |
T,2T#..TA1# 12-1.25PX62-21 |
10 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-08057 |
T,2T..TA1# L=29,S=13&13 |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90331-50015 |
T,2T#..TA1# OD=50 |
2 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90331-35026 |
T,2T#..TA1# OD=35 |
4 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 96411-01800 |
T,2T#..TA1# OD=18 |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90344-53008 |
T,2T..TA1# |
1 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90345-51005 |
T,2T#..TA1# |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-10113 |
T,2T#..TA1# L=22,OD=10,L=22 OD=10 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-08120 |
T,2T#..TA1# L=18,OD=8,L=18,OD=8 |
6 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-08120 |
T,2T#..TA1# L=18,OD=8,L=18,OD=8 |
6 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-08120 |
T,2T#..TA1# L=18,OD=8,L=18,OD=8 |
6 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-40010 |
T,2T#..TA1# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-29025 |
T,2T#..TA1# |
1 | ||
| 12101-29026 |
2T#..TA14 |
1 | ||
| 12101-29075 |
2T#..TA14 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-25054 |
T,2T#..TA1# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-25013 |
T,2T#..TA1# |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-25010 |
T,2T#..TA1# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-28010 |
2T#..TA14 |
1 | ||
| 15301-25011 |
T,2T#..TA1# |
1 | ||
| Common parts | ||||
| 90119-08178 | ||||
| 90119-08179 | ||||
| 91651-40816 | ||||
| 94110-40800 | ||||
| 94531-00800 | ||||
| 94611-10800 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1302 | ||||
| 1502 | ||||
