TA14R-KRF (1975)

Toyota Carina

Production Oct 1975 - Jul 1977
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)RHD

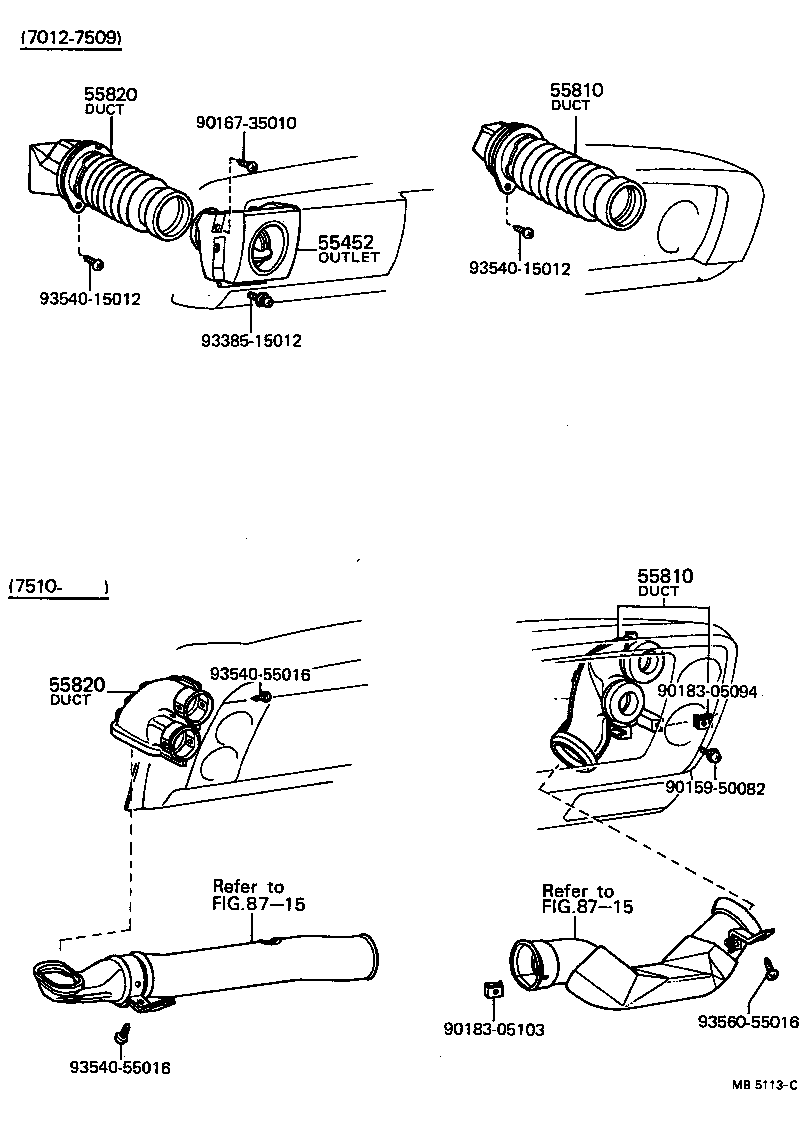

Click highlighted areas on diagram

diagram 55452 55810 55810 55820 55820 8715 8715 9015950082 9016735010 9018305094 9018305103 9338515012 9354015012 9354015012 9354055016 9354055016 9356055016
Part # Description Qty Price
55452 - OUTLET, AIR OUTER, LH
55403-14010

TA1#..RHD

 1
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55805-14010

TA1#

 1
55084-14010

TA14..RHD

 1
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55805-14010

TA1#

 1
55084-14010

TA14..RHD

 1
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55087-14010

TA14..RHD

 1
55806-14010

TA1#

 1
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55087-14010

TA14..RHD

 1
55806-14010

TA1#

 1
Common parts
90159-50082
90167-35010
90183-05094
90183-05103
93385-15012
93540-15012
93540-55016
93560-55016
Linked diagrams
8715
