TA14R-KR (1975)
Toyota Carina
Production
Oct 1975
-
Jul 1977
Engine
2T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7510-7707)

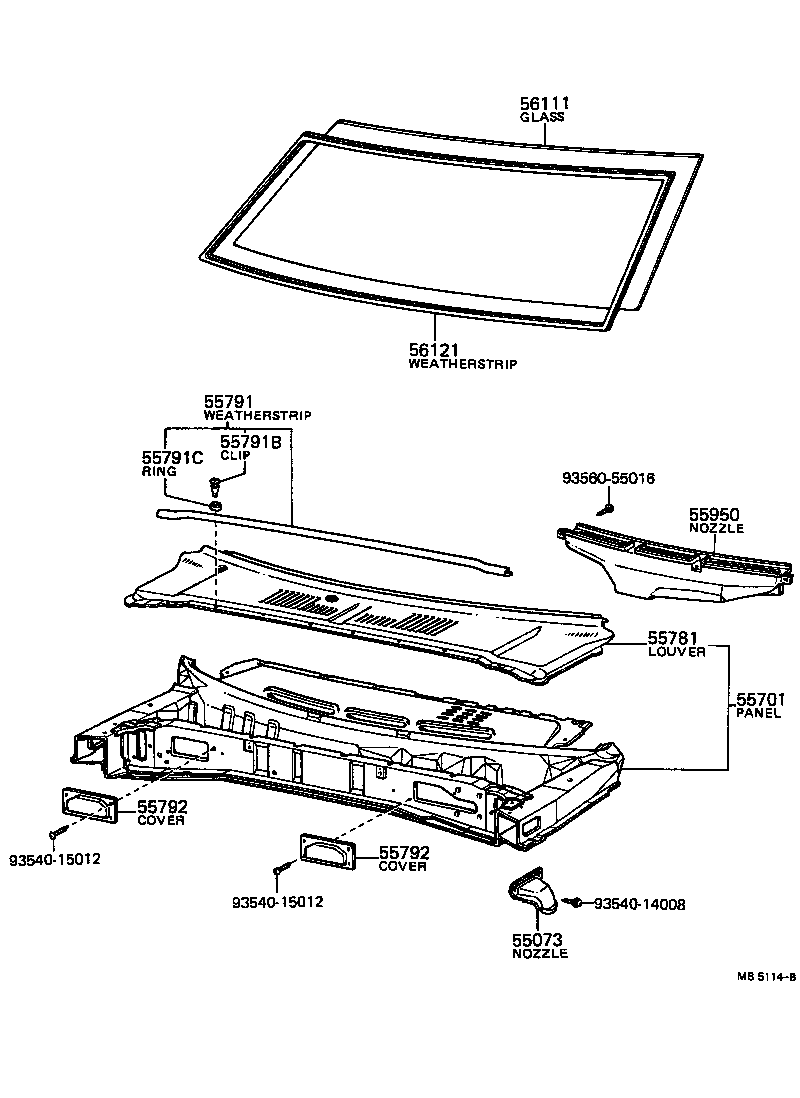

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55073 - NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT | ||||
| 55073-14020 |
TA14 |
2 | ||
| 55073-14010 |
TA1# |
2 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-14010 |
TA1#..RHD |
1 | ||
| 55700-14011 |
TA14..RHD |
1 | ||
| 55781 - LOUVER, COWL VENTILATOR | ||||
| 55711-20040 |
TA1#..RHD |
1 | ||
| 55711-14030 |
TA14..RHD |
1 | ||
| 55791 - WEATHERSTRIP, HOOD TO COWL TOP | ||||
| 53383-20902 |
TA1# |
1 | ||
| 53383-14020 |
TA14 |
1 | ||
| 55791B - CLIP(FOR HOOD TO COWL TOP WEATHERSTRIP) | ||||
| 90467-07050 |
TA1# |
8 | ||
| 90467-08008 |
TA14 |
8 | ||
| 55791C - RING(FOR HOOD TO COWL TOP WEATHERSTRIP) | ||||
| 90562-04066 |
TA14 |
2 | ||
| 55792 - COVER, WIPER MOTOR SERVICE HOLE | ||||
| 55071-20010 |
TA1# |
3 | ||
| 55071-20010 |
TA14 |
2 | ||
| 55792 - COVER, WIPER MOTOR SERVICE HOLE | ||||
| 55071-20010 |
TA1# |
3 | ||
| 55071-20010 |
TA14 |
2 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-14010 |
TA14..RHD |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-20110 |
TA1#..ST,STD ZN.TP. T=5.0 |
1 | ||
| 56111-20130 |
TA1# TN.LM. T=6.6 |
1 | ||
| 56111-20120 |
TA1# TN.ZN.TP. T=5.0 |
1 | ||
| 56111-20141 |
TA14..STD LM.T=5.7 |
1 | ||
| 56111-20140 |
TA1#..ST,STD LM.T=6.6 |
1 | ||
| 56111-20110 |
TA14..STD ZN.TP. T=5.0 |
1 | ||
| 56121 - WEATHERSTRIP, WINDSHIELD | ||||
| 56121-14070 |
TA1# |
1 | ||
| Common parts | ||||
| 93540-14008 | ||||
| 93540-15012 | ||||
| 93560-55016 | ||||
