TA14R-KDF (1975)

Toyota Carina

Production Oct 1975 - Jul 1977
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7510-7707)4D

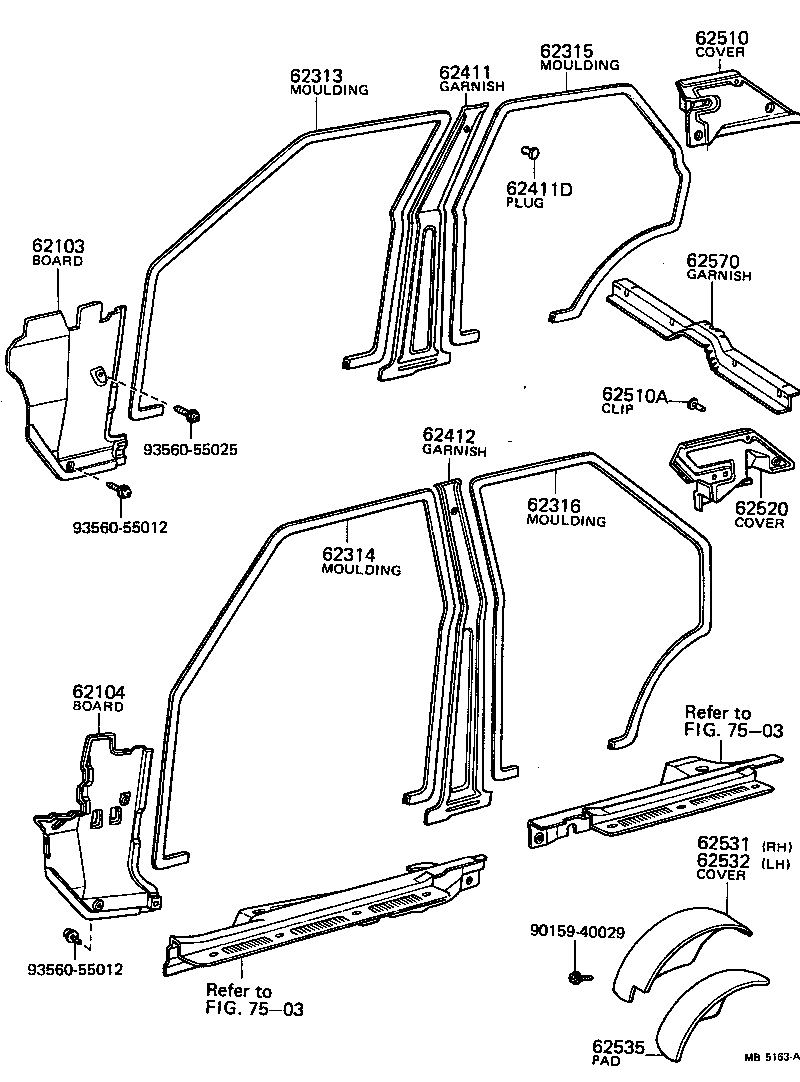

Click highlighted areas on diagram

diagram 62103 62104 62313 62314 62315 62316 62411 62411D 62412 62510 62510A 62520 62531 62532 62535 62570 7503 7503 9015940029 9356055012 9356055012 9356055025
Part # Description Qty Price
62103 - BOARD SUB-ASSY, COWL SIDE TRIM, RH
62101-1404006

TA14..RHD

BROWN,BROWN,TRIM0#,4#

 1
62101-1404001

TA14..RHD

BLACK,BLACK,TRIM0#,2#,4#

 1
62101-1490201

TA1#..RHD

BLACK,BLACK,TRIM0#,2#,4#

 1
62104 - BOARD SUB-ASSY, COWL SIDE TRIM, LH
62102-1403001

TA1#..RHD

BLACK,BLACK,TRIM0#,2#,4#

 1
62112-1407001

TA14..RHD

BLACK,BLACK,TRIM0#,2#,4#

 1
62112-1407006

TA14..RHD

BROWN,BROWN,TRIM0#,4#

 1
62313 - MOULDING, FRONT DOOR OPENING TRIM, RH
62313-2002005

TA1#..4D

BEIGE,BEIGE

 1
62313-2002004

TA1#..4D

BLUE,BLUE,TRIM8#

 1
62313-2002006

TA1#..4D

BROWN,BROWN,TRIM4#

 1
62313-2002009

TA1#..4D

GOLD,YELLOW

 1
62313-2002001

TA1#..4D

BLACK,BLACK,TRIM2#

 1
62314 - MOULDING, FRONT DOOR OPENING TRIM, LH
62313-2002005

TA1#..4D

BEIGE,BEIGE

 1
62313-2002006

TA1#..4D

BROWN,BROWN,TRIM4#

 1
62313-2002009

TA1#..4D

GOLD,YELLOW

 1
62313-2002004

TA1#..4D

BLUE,BLUE,TRIM8#

 1
62313-2002001

TA1#..4D

BLACK,BLACK,TRIM2#

 1
62315 - MOULDING, REAR DOOR OPENING TRIM, RH
62343-1401004

TA1#..4D

BLUE,BLUE,TRIM8#

 1
62343-1401005

TA1#..4D

BEIGE,BEIGE

 1
62343-1401009

TA1#..4D

GOLD,YELLOW

 1
62343-1401006

TA1#..4D

BROWN,BROWN,TRIM4#

 1
62343-1401001

TA1#..4D

BLACK,BLACK,TRIM2#

 1
62316 - MOULDING, REAR DOOR OPENING TRIM, LH
62343-1401001

TA1#..4D

BLACK,BLACK,TRIM2#

 1
62343-1401009

TA1#..4D

GOLD,YELLOW

 1
62343-1401006

TA1#..4D

BROWN,BROWN,TRIM4#

 1
62343-1401005

TA1#..4D

BEIGE,BEIGE

 1
62343-1401004

TA1#..4D

BLUE,BLUE,TRIM8#

 1
62411 - GARNISH, CENTER PILLAR, RH
62411-1401001

TA1#..4D

BLACK,BLACK,TRIM2#

 1
62411-1401006

TA1#..4D

BROWN,BROWN,TRIM4#

 1
62411-1401004

TA1#..4D

BLUE,BLUE,TRIM8#

 1
62411-1401009

TA1#..4D

GOLD,YELLOW

 1
62411-1401306

TA14..4D

BROWN,BROWN,TRIM4#

 1
62411-1401008

TA1#..4D

IVORY,IVORY,TRIM0#

 1
62411-1401301

TA14..4D

BLACK,BLACK,TRIM2#

 1
62411-1401308

TA14..4D

IVORY,IVORY,TRIM0#

 1
62412 - GARNISH, CENTER PILLAR, LH
62412-1401004

TA1#..4D

BLUE,BLUE,TRIM8#

 1
62412-1401008

TA1#..4D

IVORY,IVORY,TRIM0#

 1
62412-1401001

TA1#..4D

BLACK,BLACK,TRIM2#

 1
62412-1401006

TA1#..4D

BROWN,BROWN,TRIM4#

 1
62412-1401009

TA1#..4D

GOLD,YELLOW

 1
62412-1401308

TA14..4D

IVORY,IVORY,TRIM0#

 1
62412-1401306

TA14..4D

BROWN,BROWN,TRIM4#

 1
62412-1401301

TA14..4D

BLACK,BLACK,TRIM2#

 1
62510A - CLIP, BACK WINDOW SIDE GARNISH COVER
90467-0908416

TA14

BROWN,BROWN,TRIM0#,4#

 6
62531 - COVER, WHEEL HOUSE TRIM, RH
62530-1401006

TA1#

BROWN,BROWN,TRIM4#

 1
62530-1401008

TA1#

IVORY,IVORY,TRIM0#

 1
62530-1401001

TA1#

BLACK,BLACK,TRIM2#

 1
62530-1401004

TA1#

BLUE,BLUE,TRIM8#

 1
62530-1401009

TA1#

GOLD,YELLOW

 1
62532 - COVER, WHEEL HOUSE TRIM, LH
62540-1401004

TA1#

BLUE,BLUE,TRIM8#

 1
62540-1401006

TA1#

BROWN,BROWN,TRIM4#

 1
62540-1401008

TA1#

IVORY,IVORY,TRIM0#

 1
62540-1401001

TA1#

BLACK,BLACK,TRIM2#

 1
62540-1401009

TA1#

GOLD,YELLOW

 1
62535 - PAD, QUARTER WHEEL HOUSE TRIM
62531-14010

TA1#

 2
62570 - GARNISH ASSY, CENTER FLOOR CROSS MEMBER
62575-1401004

TA1#

BLUE,BLUE,TRIM8#

 1
62575-1401101

TA14

BLACK,BLACK,TRIM2#

 1
62575-1401106

TA14

BROWN,BROWN,TRIM0#,4#

 1
62575-1401006

TA1#

BROWN,BROWN,TRIM0#,4#

 1
62575-1401007

TA1#

OLIVE,GREEN,TRIM4#

 1
62575-1401001

TA1#

BLACK,BLACK,TRIM2#

 1
Common parts
90159-40029
93560-55012
93560-55025
Linked diagrams
7503
