TA14R-HDF (1975)
Toyota Carina
Production
Oct 1975
-
Jul 1977
Engine
2T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7012-7707)

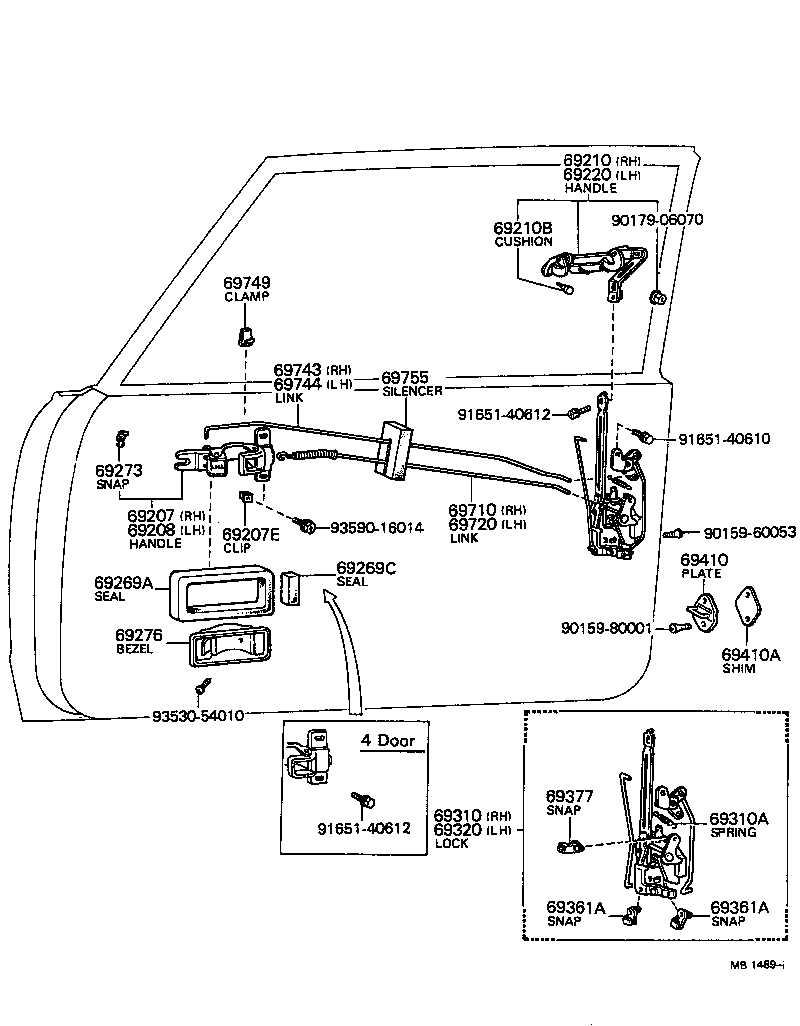

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69207-20020 |
TA1# |
1 | ||
| 69207-2002106 |
TA14 BROWN,BROWN,TRIM4# |
1 | ||
| 69207-2002108 |
TA14 IVORY,IVORY,TRIM0# |
1 | ||
| 69207-2002101 |
TA14 BLACK,BLACK,TRIM2# |
1 | ||
| 69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69208-20010 |
TA1# |
1 | ||
| 69208-2001101 |
TA14 BLACK,BLACK,TRIM2# |
1 | ||
| 69208-2001106 |
TA14 BROWN,BROWN,TRIM4# |
1 | ||
| 69208-2001108 |
TA14 IVORY,IVORY,TRIM0# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-29035 |
TA1# |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-02006 |
TA1# |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-29035 |
TA1# |
1 | ||
| 69269A - SEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR) | ||||
| 69269-12020 |
TA14 ARCTIC |
2 | ||
| 69269C - SEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR) | ||||
| 69289-12010 |
TA14 ARCTIC |
2 | ||
| 69273 - SNAP, DOOR INSIDE HANDLE ROD | ||||
| 69273-10010 |
TA1# |
2 | ||
| 69276 - BEZEL, FRONT DOOR INSIDE HANDLE | ||||
| 69276-2001106 |
TA14 BROWN,BROWN,TRIM4# |
2 | ||
| 69276-2001101 |
TA14 BLACK,BLACK,TRIM2# |
2 | ||
| 69276-2001108 |
TA14 IVORY,IVORY,TRIM0# |
2 | ||
| 69276-20010 |
TA1# |
2 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-14020 |
TA1#..4D |
1 | ||
| 69310A - SPRING(FOR FRONT DOOR LOCK) | ||||
| 90506-10415 |
TA1# |
2 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-14020 |
TA1#..4D |
1 | ||
| 69361A - SNAP, DOOR LOCK CONNECTING ROD(FOR FRONT DOOR) | ||||
| 69759-12030 |
TA14 |
4 | ||
| 69361A - SNAP, DOOR LOCK CONNECTING ROD(FOR FRONT DOOR) | ||||
| 69759-12030 |
TA14 |
4 | ||
| 69377 - SNAP, FRONT DOOR LOCK CONTROL ROD | ||||
| 69377-30020 |
TA14 |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-14010 |
TA1# |
2 | ||
| 69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH | ||||
| 69710-20030 |
TA1#..4D |
1 | ||
| 69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH | ||||
| 69720-20030 |
TA1#..4D |
1 | ||
| 69743 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH | ||||
| 69743-20010 |
TA1#..4D |
1 | ||
| 69744 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH | ||||
| 69744-20010 |
TA1#..4D |
1 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-22010 |
TA1# |
2 | ||
| 69755 - SILENCER, FRONT DOOR LOCK LINK | ||||
| 69759-20010 |
TA1# |
2 | ||
| Common parts | ||||
| 90159-60053 | ||||
| 90159-80001 | ||||
| 90179-06070 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 93530-54010 | ||||
| 93590-16014 | ||||
