TA14R-HDF (1975)
Toyota Carina
Production
Oct 1975
-
Jul 1977
Engine
2T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7510-7707)

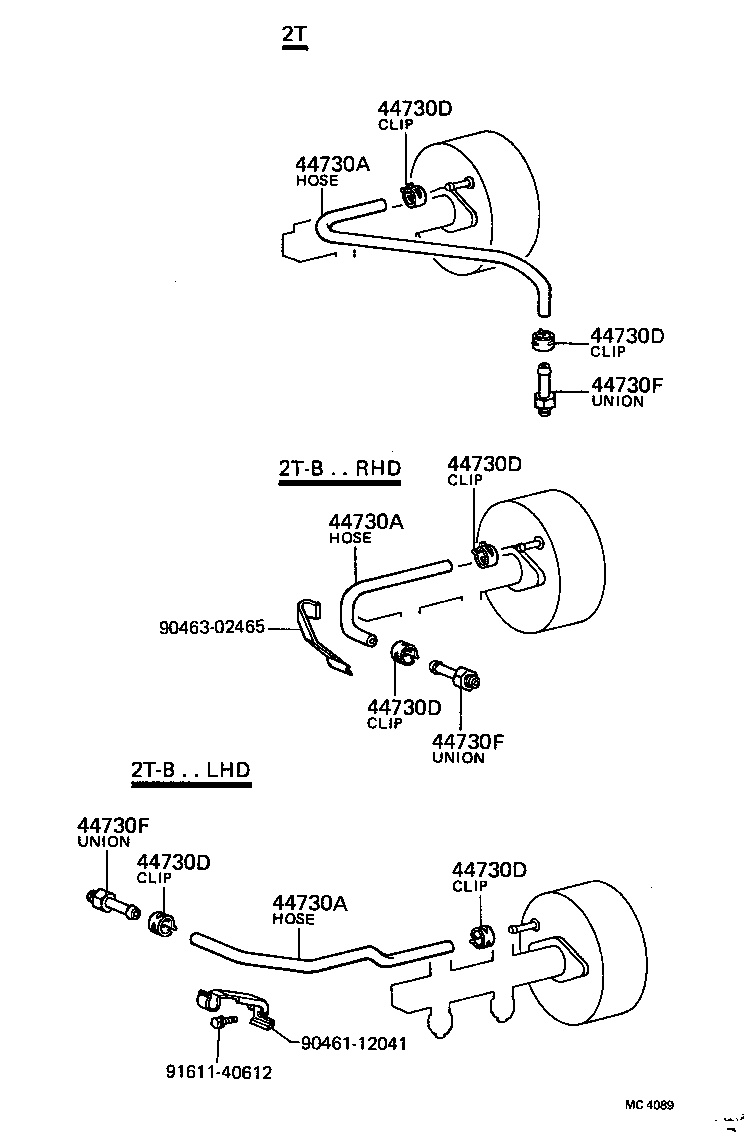

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44722-14010 |
TA1#..RHD |
1 | ||
| 44772-14011 |
TA1#..RHD |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44772-14011 |
TA1#..RHD |
1 | ||
| 44722-14010 |
TA1#..RHD |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44772-14011 |
TA1#..RHD |
1 | ||
| 44722-14010 |
TA1#..RHD |
1 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-13015 |
TA1# |
4 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-13015 |
TA1# |
4 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-13015 |
TA1# |
4 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-13015 |
TA1# |
4 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-13015 |
TA1# |
4 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-13015 |
TA1# |
4 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51096 |
TA1# |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51096 |
TA1# |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51096 |
TA1# |
1 | ||
| Common parts | ||||
| 90461-12041 | ||||
| 90463-02465 | ||||
| 91611-40612 | ||||

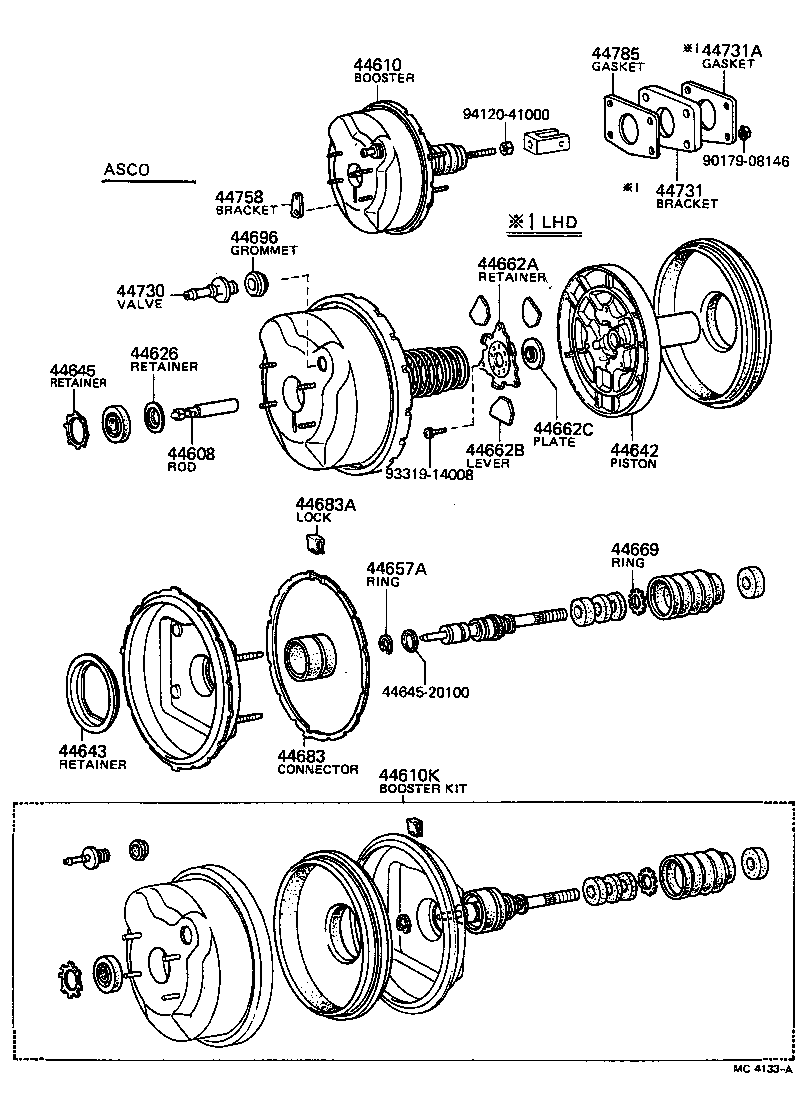

(7510-7707)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-14040 |
TA1# JKK |
1 | ||
| 44606-30050 |
TA14 ASCO |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-14050 |
TA1# JKK,SINGLE M/C |
1 | ||
| 44610-14210 |
TA14..RHD ASCO |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04441-22021 |
TA1# JKK.MINOR KIT |
1 | ||
| 04443-14160 |
TA14..RHD ASCO |
1 | ||
| 04443-20070 |
TA14..RHD JKK |
1 | ||
| 04443-14030 |
TA1# JKK FOR MINOR |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
TA14 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-14170 |
TA14 ASCO |
1 | ||
| 44642-22020 |
TA1# JKK |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
TA14 |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
TA1# JKK |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
TA14 |
1 | ||
| 44662A - RETAINER, REACTION, NO.2 | ||||
| 44662-20100 |
TA14 |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-60010 |
TA14 |
3 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44653-20150 |
TA14 |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-60010 |
TA14 |
1 | ||
| 44683 - CONNECTOR, BOOSTER BODY | ||||
| 44682-20150 |
TA14 |
1 | ||
| 44683A - LOCK, CONNECTOR | ||||
| 44683-20100 |
TA14 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-14010 |
TA1# ASCO |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-14010 |
TA1# |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 47278-14010 |
TA1# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-22010 |
TA14 |
1 | ||
| 44785-14010 |
TA1# |
1 | ||
| Common parts | ||||
| 44645-20100 | ||||
| 90179-08146 | ||||
| 93319-14008 | ||||
| 94120-41000 | ||||

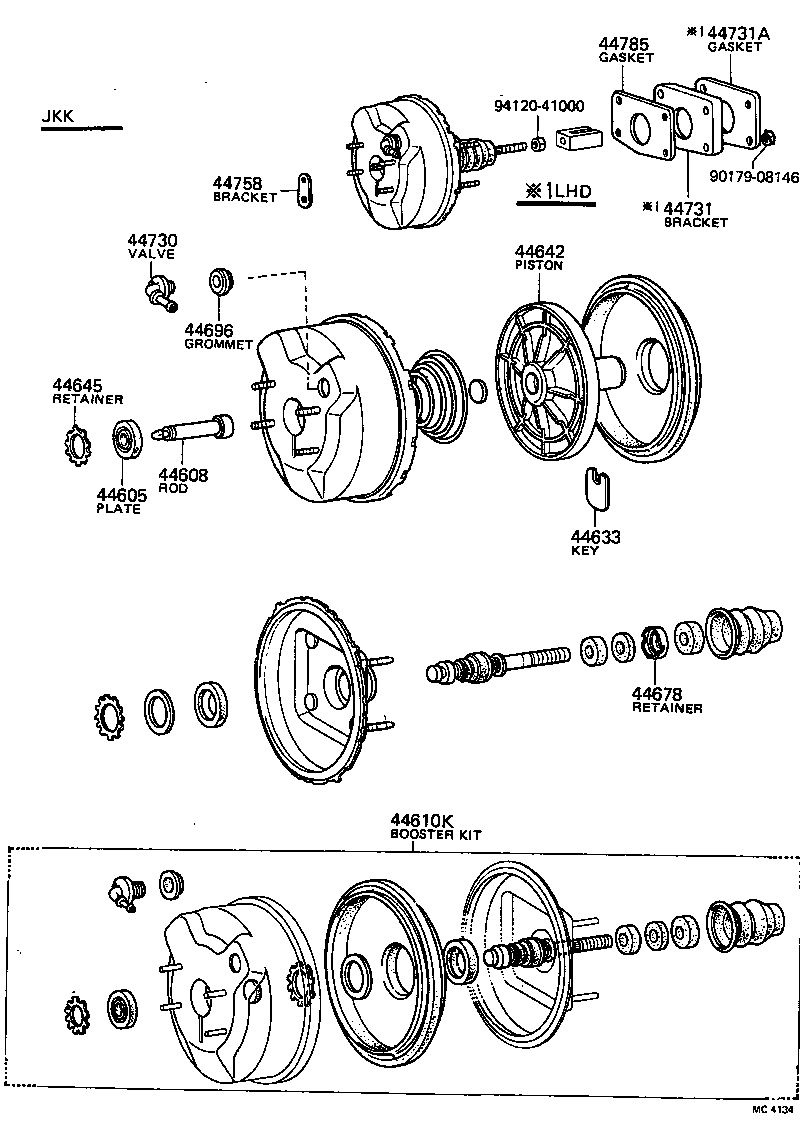

(7510-7707)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
TA1# |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-14040 |
TA1# JKK |
1 | ||
| 44606-30050 |
TA14 ASCO |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04441-22021 |
TA1# JKK.MINOR KIT |
1 | ||
| 04443-14160 |
TA14..RHD ASCO |
1 | ||
| 04443-20070 |
TA14..RHD JKK |
1 | ||
| 04443-14030 |
TA1# JKK FOR MINOR |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-22020 |
TA1# |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-14170 |
TA14 ASCO |
1 | ||
| 44642-22020 |
TA1# JKK |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
TA1# JKK |
1 | ||
| 44678 - RETAINER, BOOSTER AIR CLEANER | ||||
| 44678-22020 |
TA1# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-14010 |
TA1# ASCO |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-14010 |
TA1# |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 47278-14010 |
TA1# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-22010 |
TA14 |
1 | ||
| 44785-14010 |
TA1# |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 94120-41000 | ||||
