TA14L-MSB (1975)
Toyota Carina
Production
Oct 1975
-
Jul 1977
Engine
2TB
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7510-7707)

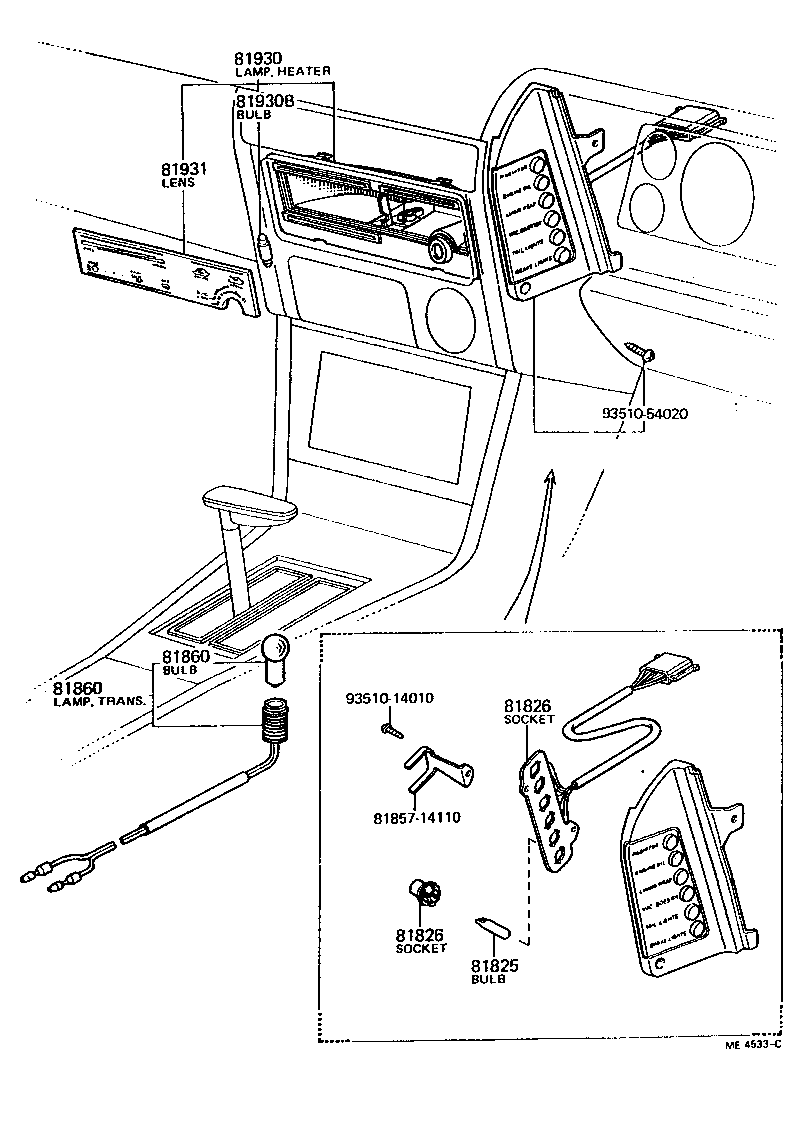

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1 | ||||
| 81930-14040 |
TA14..LHD..(DLX,ST) |
1 | ||
| 81930-22012 |
TA1# |
1 | ||
| 81930-14060 |
TA14..LHD..(DLX,ST) BOOST VENTILATOR ONLY |
1 | ||
| 81930B - BULB, HEATER CONTROL INDICATOR LAMP | ||||
| 90981-11010 |
TA1# 12V 2W,12V 2W |
1 | ||
| 90981-11010 |
TA14 12V 2W,12V 2W |
1 | ||
| 81931 - LENS, HEATER CONTROL INDICATOR | ||||
| 81931-14040 |
TA14..LHD |
1 | ||
| 81931-14060 |
TA14..LHD BOOST VENTILATOR ONLY |
1 | ||
| Common parts | ||||
| 81857-14110 | ||||
| 93510-14010 | ||||
| 93510-54020 | ||||
