TA14L-MSB (1975)
Toyota Carina
Production
Oct 1975
-
Jul 1977
Engine
2TB
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

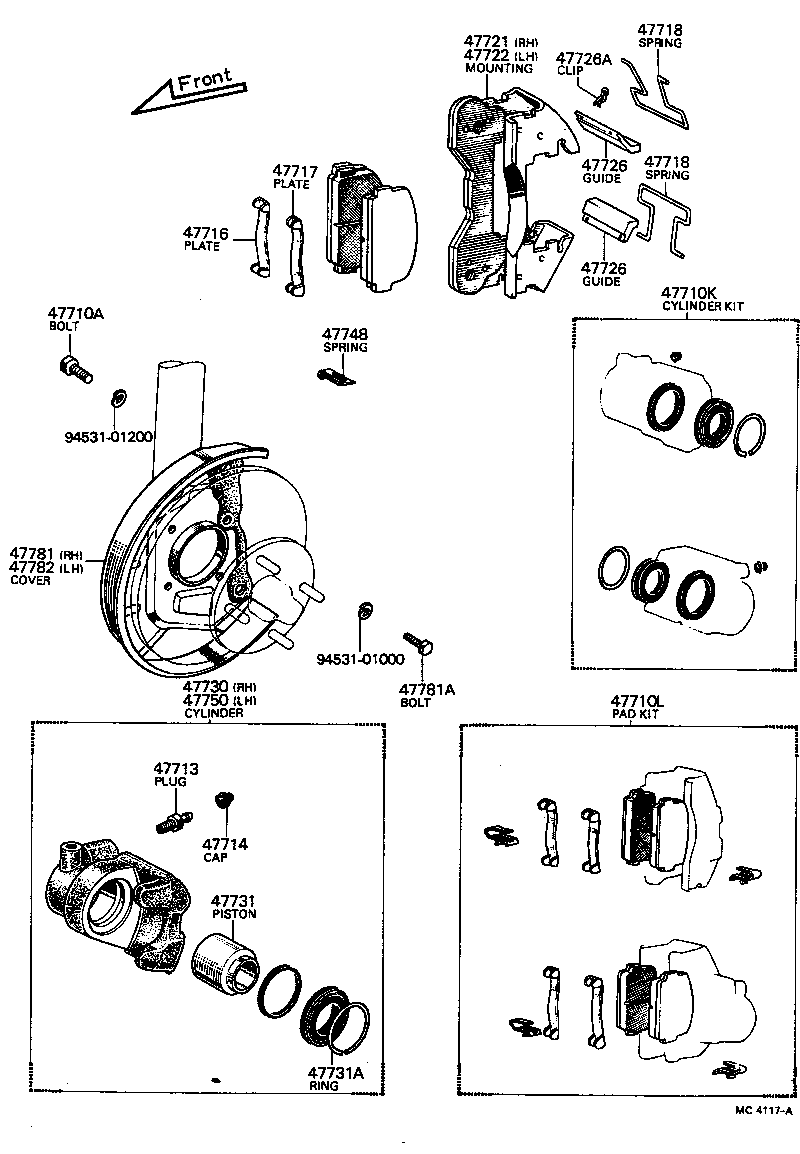

ILLUST NO. 1 OF 2(7510-7611)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12332 |
TA1# *12-1.25PX15.7-10 |
4 | ||
| 47710K - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-12030 |
TA1# |
2 | ||
| 47710L - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-20031 |
TA1# S21 |
1 | ||
| 04491-14030 |
TA14 |
1 | ||
| 04491-14032 |
TA14 |
1 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12020 |
TA1# |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
TA1# |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-12011 |
TA1# |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-12011 |
TA1# |
2 | ||
| 47718 - SPRING, FRONT DISC BRAKE CYLINDER SUPPORT | ||||
| 47718-20010 |
TA1# |
4 | ||
| 47718 - SPRING, FRONT DISC BRAKE CYLINDER SUPPORT | ||||
| 47718-20010 |
TA1# |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-14010 |
TA1# |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-14010 |
TA1# |
1 | ||
| 47726 - GUIDE, FRONT DISC BRAKE CYLINDER | ||||
| 47726-20010 |
TA1# |
4 | ||
| 47726 - GUIDE, FRONT DISC BRAKE CYLINDER | ||||
| 47726-20010 |
TA1# |
4 | ||
| 47726A - CLIP(FOR FRONT DISC BRAKE CYLINDER) | ||||
| 90468-12039 |
TA1# |
8 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47750-12030 |
TA1# |
1 | ||
| 47730-14100 |
TA14 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-14010 |
TA1# |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-14010 |
TA14 |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-14100 |
TA14 |
1 | ||
| 47730-12030 |
TA1# |
1 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47703-14010 |
TA1# |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90101-10366 |
TA1# |
8 | ||
| 90101-10020 |
TA14 |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47704-14010 |
TA1# |
1 | ||
| Common parts | ||||
| 94531-01000 | ||||
| 94531-01200 | ||||

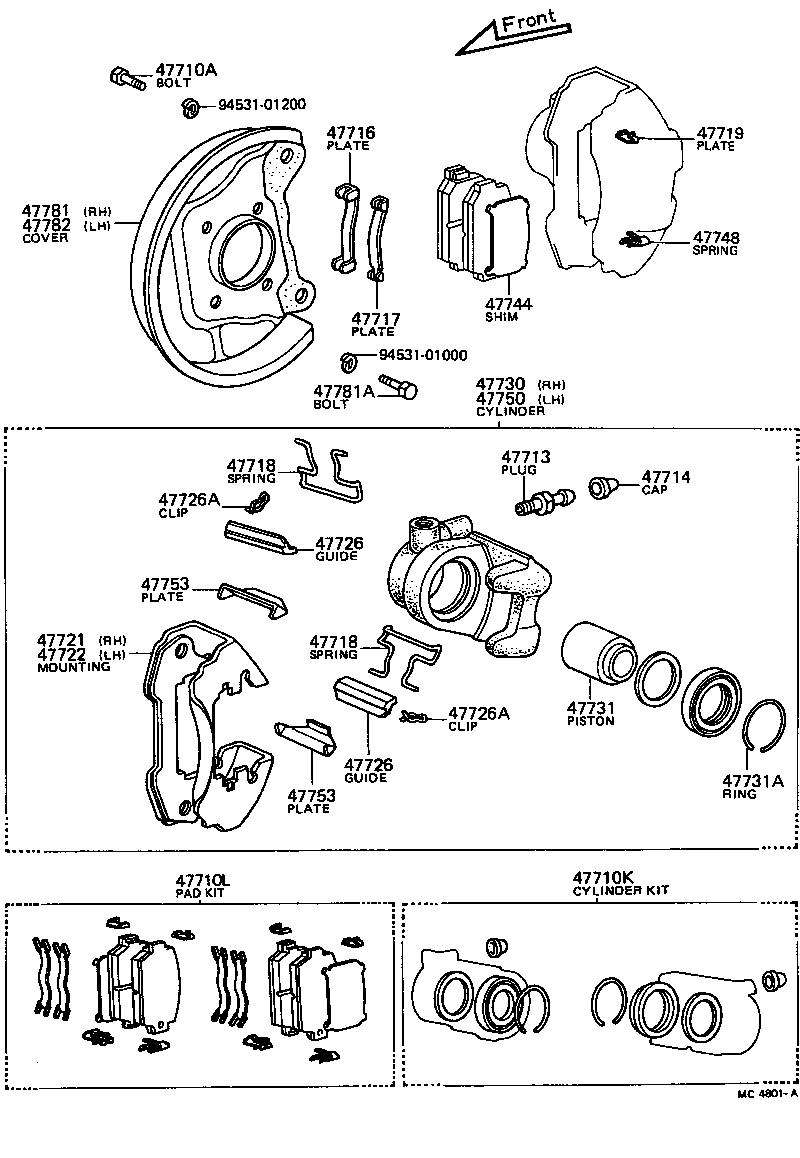

ILLUST NO. 1 OF 2(7611-7707)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12332 |
TA1# *12-1.25PX15.7-10 |
4 | ||
| 47710K - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-12030 |
TA1# |
2 | ||
| 47710L - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-20031 |
TA1# S21 |
1 | ||
| 04491-14030 |
TA14 |
1 | ||
| 04491-14032 |
TA14 |
1 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12020 |
TA1# |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
TA1# |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-12011 |
TA1# |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-12011 |
TA1# |
2 | ||
| 47718 - SPRING, FRONT DISC BRAKE CYLINDER SUPPORT | ||||
| 47718-20010 |
TA1# |
4 | ||
| 47718 - SPRING, FRONT DISC BRAKE CYLINDER SUPPORT | ||||
| 47718-20010 |
TA1# |
4 | ||
| 47719 - PLATE, FRONT DISC BRAKE PAD GUIDE | ||||
| 47719-12010 |
TA14 |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-14010 |
TA1# |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-14010 |
TA1# |
1 | ||
| 47726 - GUIDE, FRONT DISC BRAKE CYLINDER | ||||
| 47726-20010 |
TA1# |
4 | ||
| 47726 - GUIDE, FRONT DISC BRAKE CYLINDER | ||||
| 47726-20010 |
TA1# |
4 | ||
| 47726A - CLIP(FOR FRONT DISC BRAKE CYLINDER) | ||||
| 90468-12039 |
TA1# |
8 | ||
| 47726A - CLIP(FOR FRONT DISC BRAKE CYLINDER) | ||||
| 90468-12039 |
TA1# |
8 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47750-12030 |
TA1# |
1 | ||
| 47730-14100 |
TA14 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-14010 |
TA1# |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-14010 |
TA14 FOR OUTER |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-14010 |
TA14 |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-14100 |
TA14 |
1 | ||
| 47730-12030 |
TA1# |
1 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47703-14010 |
TA1# |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90101-10366 |
TA1# |
8 | ||
| 90101-10020 |
TA14 |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47704-14010 |
TA1# |
1 | ||
| Common parts | ||||
| 94531-01000 | ||||
| 94531-01200 | ||||
