TA14L-MSB (1975)

Toyota Carina

Production Oct 1975 - Jul 1977
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7510-7707)LHD..MTM

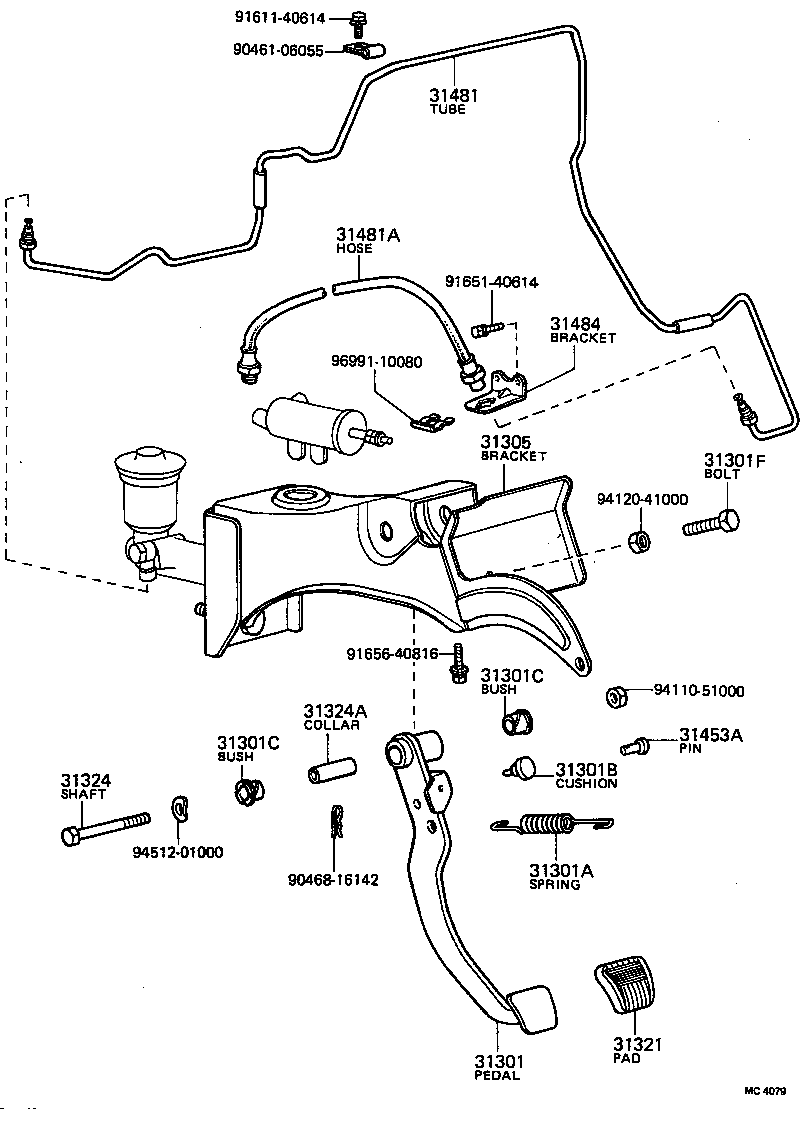

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31305 31321 31324 31324A 31453A 31481 31481A 31484 9046106055 9046816142 9161140614 9165140614 9165640816 9411051000 9412041000 9451201000 9699110080
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-14023

TA14..LHD..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-16148

TA1#..MTM

 1
90506-14002

TA14..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

TA1#..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

TA1#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

TA1#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

TA1#..MTM

 1
31305 - BRACKET SUB-ASSY, CLUTCH PEDAL
55107-14010

TA14..LHD..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14010

TA1#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

TA1#..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

TA1#..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08001

TA14..MTM

 1
90240-08040

TA1#..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-14023

TA14..LHD..MTM

 1
31481-14022

TA14..LHD..MTM

 1
31481A - HOSE, CLUTCH, NO.1
96930-31242

TA1#..MTM

 1
96940-31244

TA14..MTM

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-14050

TA14..MTM

 1
31484-14021

TA14..MTM

 1
Common parts
90461-06055
90468-16142
91611-40614
91651-40614
91656-40816
94110-51000
94120-41000
94512-01000
96991-10080
