TA14L-KRF (1975)

Toyota Carina

Production Oct 1975 - Jul 1977
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7510-7707)2T

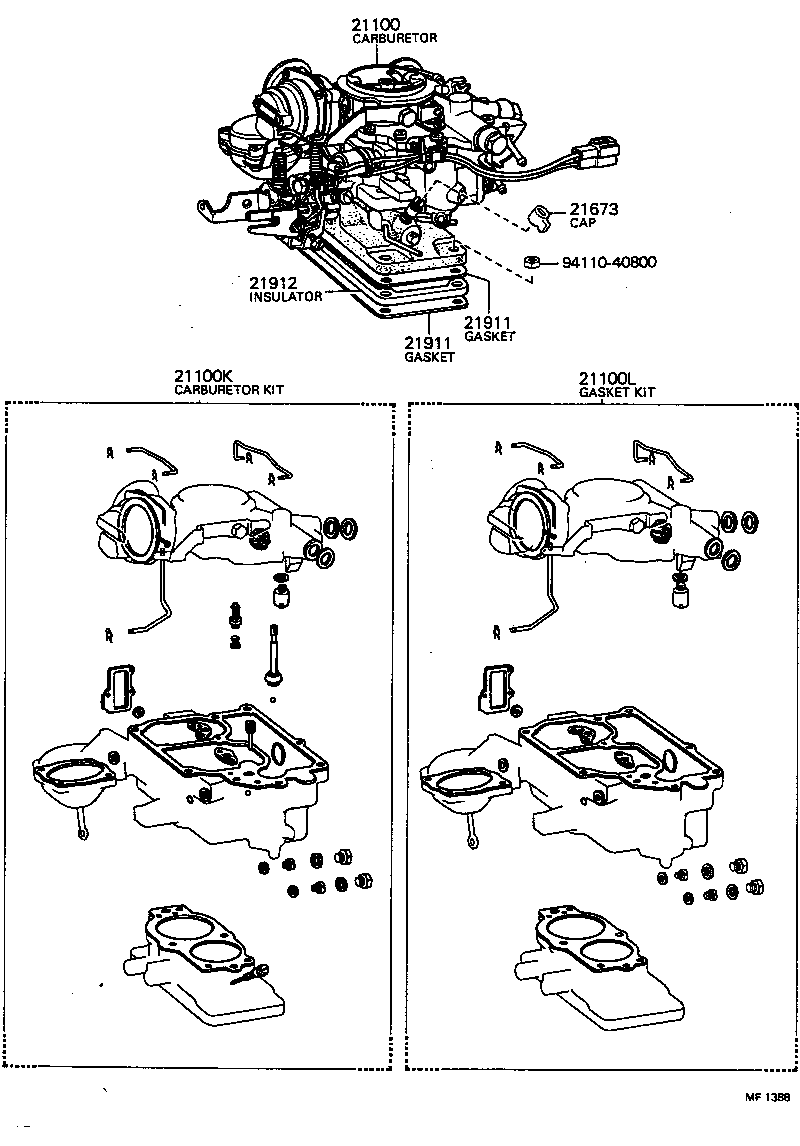

Click highlighted areas on diagram

diagram 21100 21100K 21100L 21673 21911 21911 21912 9411040800
Part # Description Qty Price
21100 - CARBURETOR ASSY
21100-26480

2T..TA14

 1
21100-26483

2T..TA14

 1
21100-26484

2T..TA14

 1
21100-26481

2T..TA14

 1
21100K - CARBURETOR KIT
04211-26120

2T..TA14

 1
21100L - GASKET KIT, CARBURETOR
04212-25010

T,2T..TA1#

 1
04212-26040

2T..TA14

 1
21673 - CAP, IDLE LIMIT
21673-24010

2T..TA14

 1
21911 - GASKET, CARBURETOR
21911-25010

T,2T#..TA1#

 2
21911-26010

2T..TA14

 2
21911 - GASKET, CARBURETOR
21911-25010

T,2T#..TA1#

 2
21911-26010

2T..TA14

 2
21912 - INSULATOR, CARBURETOR HEAT
21912-25010

T,2T..TA1#

 1
21912-26020

2T..TA14

 1
Common parts
94110-40800
