TA14L-KR (1975)
Toyota Carina
Production
Oct 1975
-
Jul 1977
Engine
2T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7510-7707)LHD

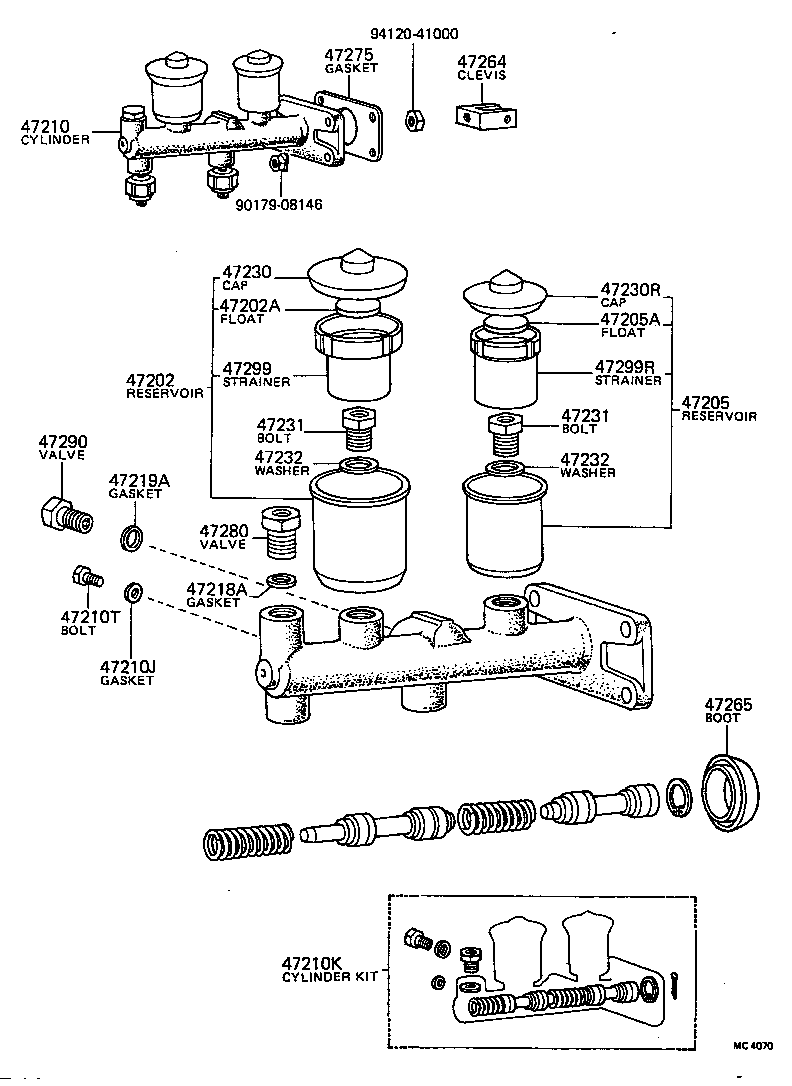

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47202-12010 |
TA1# FOR FRONT DRUM BRAKE |
1 | ||
| 47202-30010 |
TA1#..LHD FOR FRONT DISC BRAKE |
1 | ||
| 47202-14100 |
TA14..LHD |
1 | ||
| 47202A - FLOAT, MASTER CYLINDER RESERVOIR | ||||
| 31426-20010 |
TA14 |
1 | ||
| 31426-30011 |
TA1# |
1 | ||
| 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) | ||||
| 47202-20120 |
TA14..LHD |
1 | ||
| 47202-20121 |
TA14..LHD |
1 | ||
| 47205A - FLOAT, BRAKE MASTER CYLINDER RESERVOIR(FOR REAR SIDE) | ||||
| 31426-20010 |
TA14 |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47200-14010 |
TA1# SINGLE |
1 | ||
| 47201-14020 |
TA1#..LHD SINGLE,FOR BOOSTER |
1 | ||
| 47200-14100 |
TA1#..LHD SINGLE |
1 | ||
| 47201-14230 |
TA14..LHD BRAKE WARNING |
1 | ||
| 47201-14200 |
TA14..LHD |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04471-14021 |
TA1# SINGLE W/BOOSTER |
1 | ||
| 04471-12043 |
TA1# FOR SINGLE MASTER |
1 | ||
| 04493-14050 |
TA14 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
TA14 |
1 | ||
| 90109-06011 |
TA14 |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-20018 |
TA1# |
1 | ||
| 90430-09253 |
TA14 |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-09253 |
TA14 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12011 |
TA1# |
1 | ||
| 47230-20030 |
TA14..LHD |
1 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 47230-20040 |
TA14..LHD |
1 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-35010 |
TA1# |
2 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-35010 |
TA1# |
2 | ||
| 47232 - WASHER, BRAKE RESERVOIR SET BOLT | ||||
| 47232-35010 |
TA1# |
2 | ||
| 47232 - WASHER, BRAKE RESERVOIR SET BOLT | ||||
| 47232-35010 |
TA1# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 31453-40010 |
TA1#..LHD |
1 | ||
| 47264-30020 |
TA14 |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-12020 |
TA1#..DLX,STD FOR L/BOOSTER |
1 | ||
| 47265-20050 |
TA14 |
1 | ||
| 47265-14010 |
TA1# |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-14010 |
TA1# |
1 | ||
| 47275-22010 |
TA14 |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-12010 |
TA1# |
1 | ||
| 47280-30030 |
TA14 |
1 | ||
| 47280-12020 |
TA1# SINGLE M/C |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47280-30030 |
TA14 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20010 |
TA14 |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-20020 |
TA14 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 94120-41000 | ||||
