TA14L-KDF (1975)

Toyota Carina

Production Oct 1975 - Jul 1977
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7510-7707)

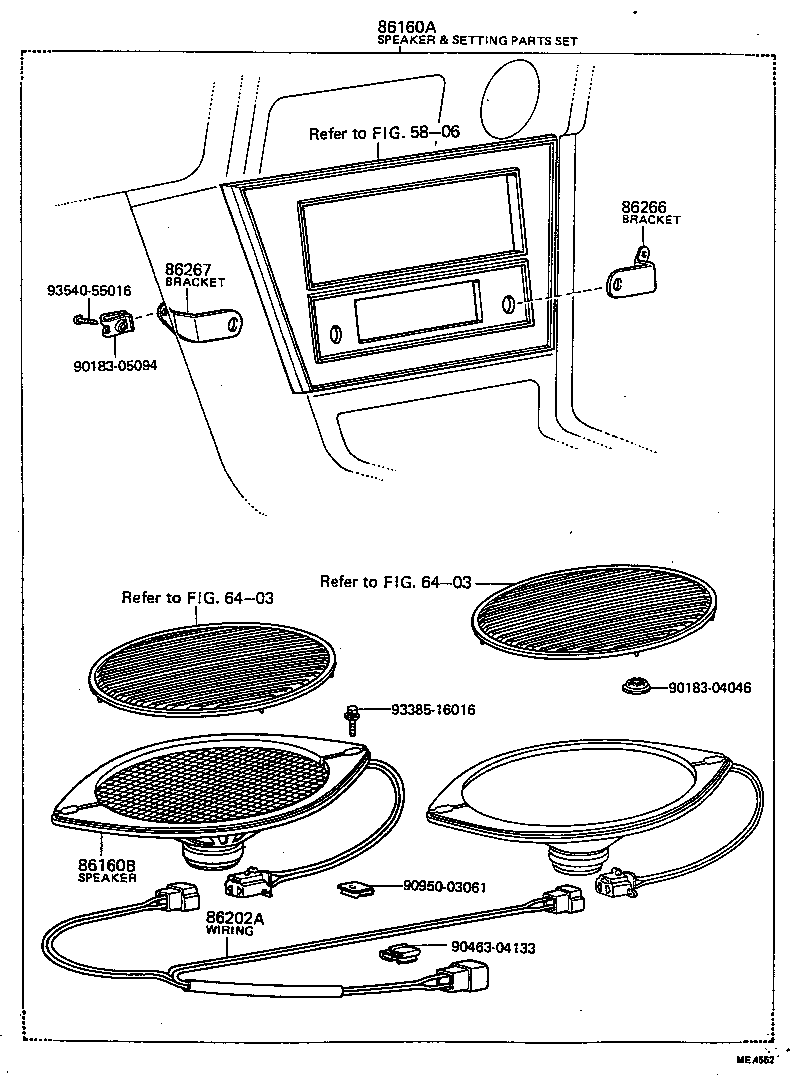

Click highlighted areas on diagram

diagram 5806 6403 6403 86160A 86160B 86202A 86266 86267 9018304046 9018305094 9046304133 9095003061 9338516016 9354055016
Part # Description Qty Price
86160A - SPEAKER SET, FRONT
86160-19035

TA14

 1
86160B - SPEAKER ASSY, REAR
86160-20050

TA1#

 1
86202A - WIRE, SPEAKER, NO.2
86202-14041

TA14

 1
86202-20010

TA1#

 1
86266 - BRACKET, TAPE PLAYER, NO.2
55367-14010

TA14

 1
86267 - BRACKET, TAPE PLAYER, NO.3
55366-14010

TA14

 1
Common parts
90183-04046
90183-05094
90463-04133
90950-03061
93385-16016
93540-55016
Linked diagrams
5806
6403

(7510-7707)

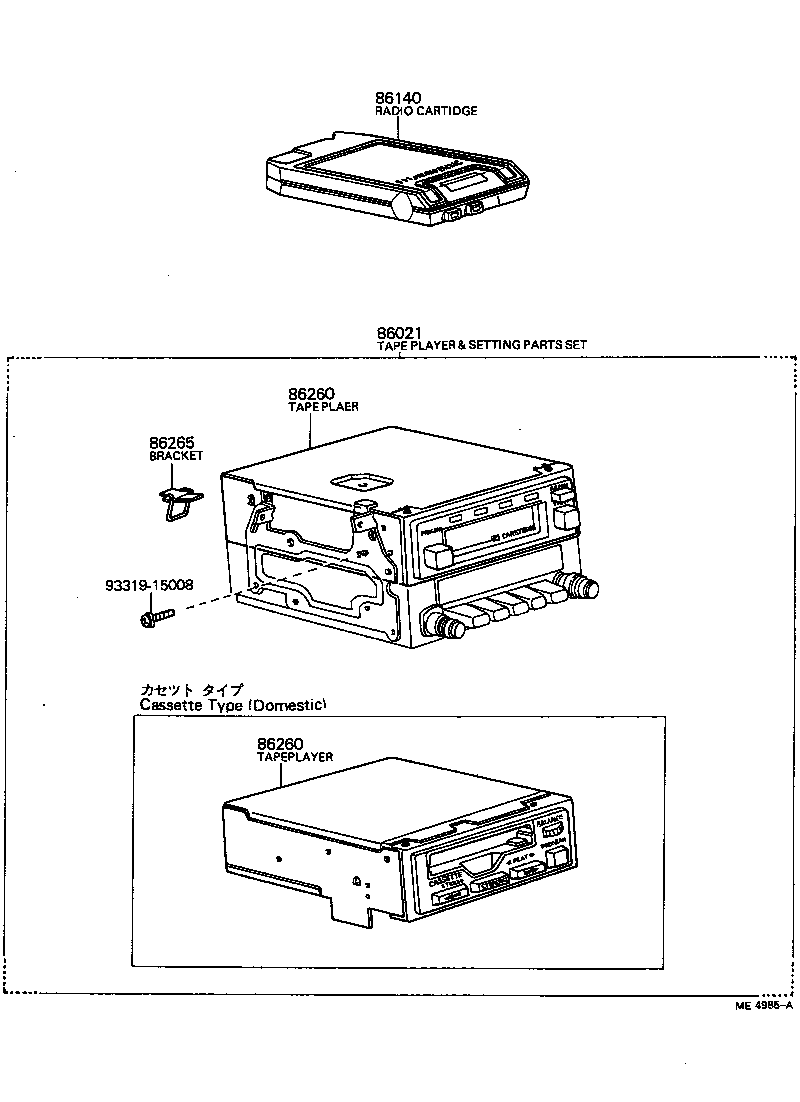

Click highlighted areas on diagram

diagram 86021 86140 86260 86260 86265 9331915008
Part # Description Qty Price
86021 - TAPE PLAYER AND SETTING PARTS SET
86021-14010

TA1#

 1
86021-29015

TA14

8 TRACK TYPE

 1
86260 - TAPE PLAYER ASSY
86260-14010

TA1#

 1
86260-20030

TA14

8 TRACK TYPE

 1
86260 - TAPE PLAYER ASSY
86260-14010

TA1#

 1
86260-20030

TA14

8 TRACK TYPE

 1
86265 - BRACKET, TAPE PLAYER, NO.1
86239-20010

TA14

 1
86211-20010

TA1#

 1
Common parts
93319-15008
