TA14L-KDF (1975)
Toyota Carina
Production
Oct 1975
-
Jul 1977
Engine
2T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7510-7707)DLX,STD

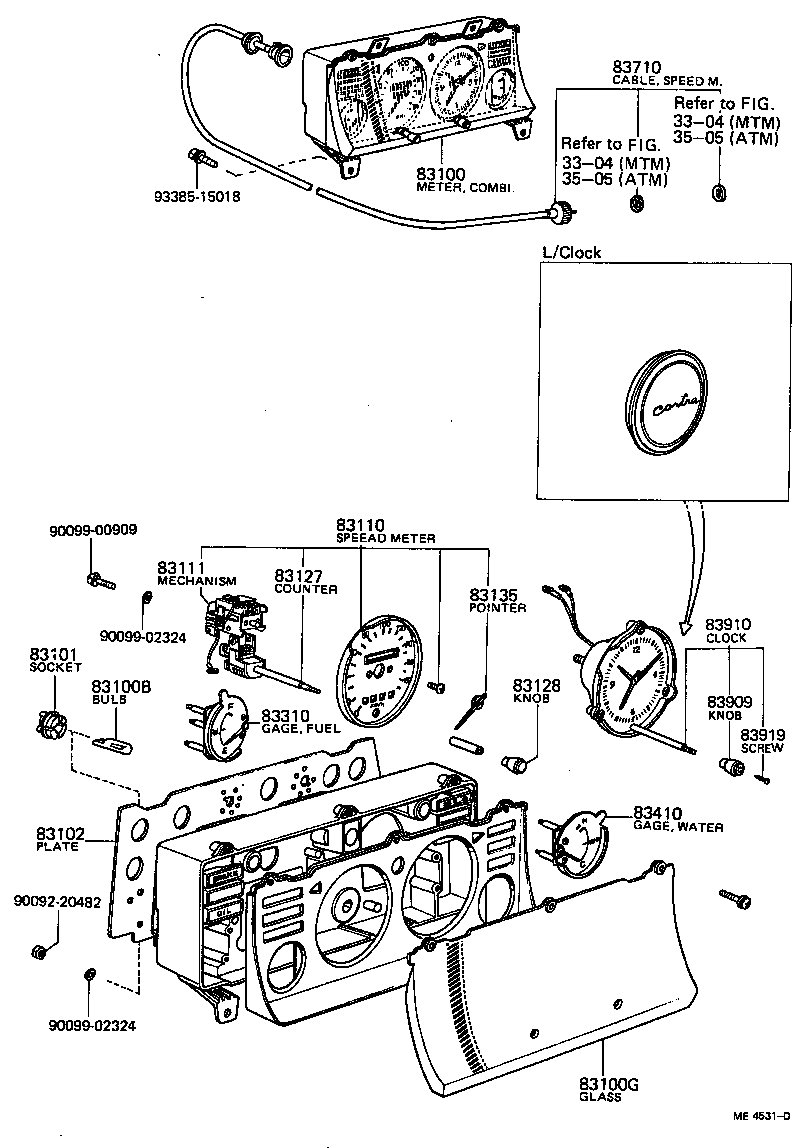

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83100-14020 |
TA1#..LHD |
1 | ||
| 83100-14350 |
TA14..LHD..(DLX,STD) KM.L/CLOCK |
1 | ||
| 83100-14390 |
TA14..LHD..(DLX,STD) MILE,L/CLOCK |
1 | ||
| 83100-14430 |
TA14..LHD..(DLX,STD) KM.W/CLOCK |
1 | ||
| 83100-14470 |
TA14..LHD..(DLX,STD) MILE,W/CLOCK |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
TA14 12V 3.4W,12V 3.4W |
9 | ||
| 99132-12034 |
TA1# 12V 3.4W,12V 3.4W |
4 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-14250 |
TA14..DLX,STD |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-12010 |
TA1# |
12 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-14040 |
TA14..LHD..(DLX,STD) |
1 | ||
| 83102-14090 |
TA1#..LHD |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-14070 |
TA1# MILE |
1 | ||
| 83241-14020 |
TA14..DLX,STD KM. |
1 | ||
| 83110-14060 |
TA1# KM. |
1 | ||
| 83241-14040 |
TA14..DLX,STD MILE |
1 | ||
| 83111 - MECHANISM, SPEEDOMETER | ||||
| 83111-12560 |
TA14 MILE |
1 | ||
| 83111-12540 |
TA14 KM. |
1 | ||
| 83127 - COUNTER, TRIP | ||||
| 83127-12860 |
TA14 |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-10260 |
TA14 |
1 | ||
| 83135 - POINTER, SPEEDOMETER | ||||
| 83135-14250 |
TA14 |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83310-14030 |
TA1# |
1 | ||
| 83243-14010 |
TA14 |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83410-14050 |
TA1# |
1 | ||
| 83244-14010 |
TA14 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-19105 |
TA1#..LHD..MTM L=1700 |
1 | ||
| 83710-19115 |
TA1#..DLX,STD L=1550 |
1 | ||
| 83710-19265 |
TA14..LHD..MTM L=1800 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-14022 |
TA14..DLX,STD |
1 | ||
| Common parts | ||||
| 90092-20482 | ||||
| 90099-00909 | ||||
| 90099-02324 | ||||
| 93385-15018 | ||||
| Linked diagrams | ||||
| 3304 | ||||
| 3505 | ||||
