TA14L-KDF (1975)

Toyota Carina

Production Oct 1975 - Jul 1977
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)

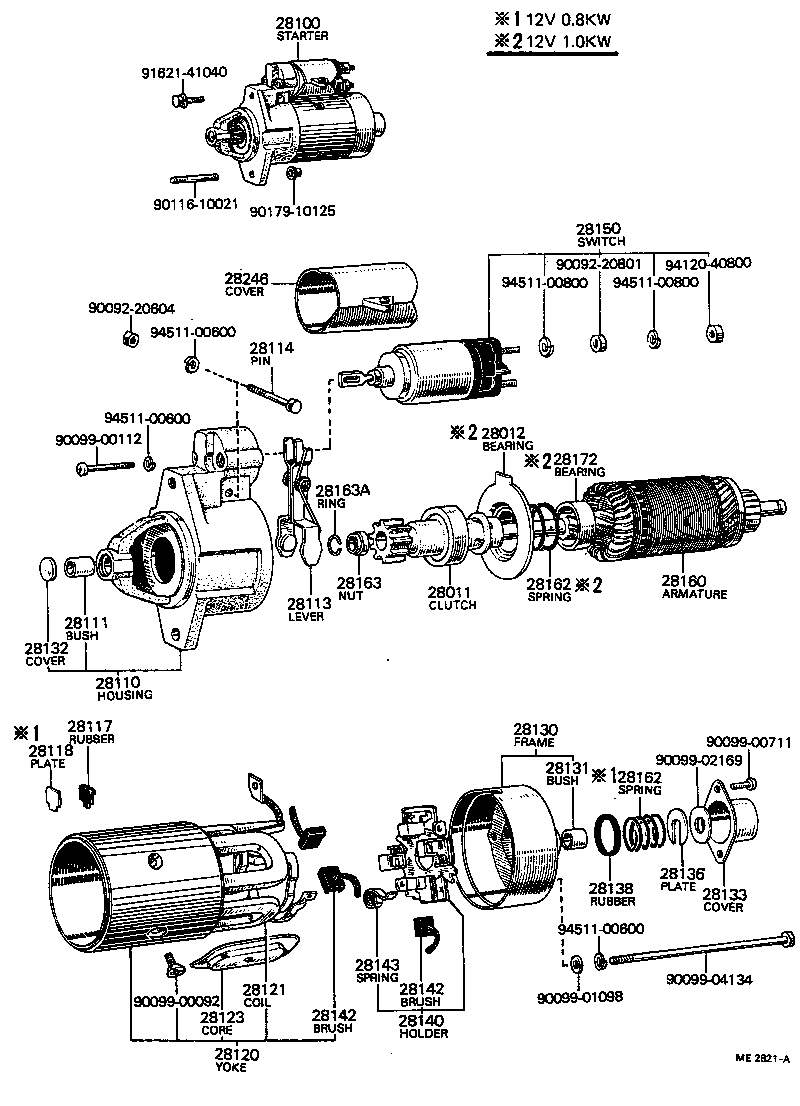

Click highlighted areas on diagram

diagram 28011 28012 28100 28110 28111 28113 28114 28117 28118 28120 28121 28123 28130 28131 28132 28133 28136 28138 28140 28142 28142 28143 28150 28160 28162 28162 28163 28163A 28172 28246 9009220604 9009220801 9009900092 9009900112 9009900711 9009901098 9009902169 9009904134 9011610021 9017910125 9162141040 9412040800 9451100600 9451100600 9451100600 9451100800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-41020

T,2T#..TA1#

12V 1.0KW

 1
28011-22022

2T#..TA14

12V 0.8KW

 1
28011-22020

T,2T#..TA1#

12V 0.8KW

 1
28012 - BEARING SUB-ASSY, CENTER
28126-33021

T,2T#..TA1#

12V 1.0KW

 1
28100 - STARTER ASSY
28100-25021

T,2T#..TA1#

12V 1.0KW

 1
28100-26021

2T#..TA14..LHD

12V 0.8KW

 1
28100-25032

2T#..TA14..LHD

12V 1.0KW

 1
28100-25012

T,2T#..TA1#

12V 0.8KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-25011

T,2T#..TA1#

12V 0.8KW

 1
28110-25020

T,2T#..TA1#

12V 1.0KW

 1
28111 - BUSH(FOR STARTER HOUSING)
28111-51011

T,2T#..TA1#

 1
28113 - LEVER, STARTER PINION DRIVE
28113-25010

T,2T#..TA1#

12V 0.8KW

 1
28113-25010

2T#..TA14..LHD

12V 0.8KW

 1
28114 - PIN, STARTER DRIVE LEVER SET
28114-25010

2T#..TA14..LHD

12V 0.8KW

 1
28114-25010

T,2T#..TA1#

12V 0.8KW

 1
28117 - RUBBER(FOR STARTER YOKE)
28117-41012

2T#..TA14..LHD

12V 1.0KW

 1
28117-25010

T,2T#..TA1#

12V 0.8KW

 1
28117-41020

T,2T#..TA1#

12V 1.0KW

 1
28118 - PLATE(FOR STARTER YOKE)
28118-25010

T,2T#..TA1#

12V 0.8KW

 1
28120 - YOKE ASSY, STARTER
28120-25021

T,2T#..TA1#

12V 1.0KW

 1
28120-25011

T,2T#..TA1#

12V 0.8KW

 1
28121 - COIL, STARTER FIELD
28121-25012

2T#..TA14

12V 0.8KW

 1
28121-25010

T,2T..TA1#

12V 0.8KW

 1
28121-41020

T,2T#..TA1#

12V 1.0KW

 1
28123 - CORE, STARTER POLE
28123-40012

T,2T#..TA1#

12V 0.8KW

 4
28123-41020

T,2T#..TA1#

12V 1.0KW

 4
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-21011

T,2T#..TA1#

12V 0.8KW

 1
28130-41020

T,2T#..TA1#

12V 1.0KW

 1
28131 - BUSH, COMMUTATOR END FRAME
28131-20010

T,2T#..TA1#

STD

 1
90099-10039

T,2T#..TA1#

U/S 0.3

 1
90099-10040

T,2T#..TA1#

U/S 0.5

 1
28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING)
28132-41010

T,2T..TA1#

 1
28133 - COVER, BEARING(FOR END FRAME)
28132-40010

T,2T#..TA1#

12V 1.0KW

 1
28132-40010

2T#..TA14..LHD

12V 1.0KW

 1
28132-41011

T,2T#..TA1#

12V 0.8KW

 1
28136 - PLATE, STARTER LOCK
28136-41011

T,2T#..TA1#

12V 0.8KW

 1
28136-40010

T,2T#..TA1#

12V 1.0KW

 1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-40010

T,2T#..TA1#

12V 1.0KW

 1
28138-41011

T,2T#..TA1#

12V 0.8KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-25010

T,2T#..TA1#

12V 0.8KW

 1
28140-25010

2T#..TA14

12V 0.8KW

 1
28140-25020

T,2T#..TA1#

12V 1.0KW

 1
28142 - BRUSH, STARTER
28142-25020

T,2T#..TA1#

12V 1.0KW

 4
28142-25010

T,2T#..TA1#

12V 0.8KW

 4
28142 - BRUSH, STARTER
28142-25020

T,2T#..TA1#

12V 1.0KW

 4
28142-25010

T,2T#..TA1#

12V 0.8KW

 4
28143 - SPRING, STARTER BRUSH
28143-40010

T,2T#..TA1#

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-25032

2T#..TA14..LHD

12V 0.8KW,1.0KW

 1
28150-25010

T,2T#..TA1#

 1
28160 - ARMATURE ASSY, STARTER
28160-41020

T,2T#..TA1#

12V 1.0KW

 1
28160-22021

T,2T#..TA1#

12V 0.8KW

 1
28162 - SPRING, STARTER BRAKE
28162-41011

T,2T#..TA1#

12V 0.8KW

 1
28162-41022

T,2T#..TA1#

12V 1.0KW

 1
28162 - SPRING, STARTER BRAKE
28162-41011

T,2T#..TA1#

12V 0.8KW

 1
28162-41022

T,2T#..TA1#

12V 1.0KW

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011

T,2T#..TA1#

 1
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07047

T,2T#..TA1#

 1
28172 - HOLDER, STARTER SPRING
28172-41021

T,2T#..TA1#

12V 1.0KW

 1
28246 - COVER, MAGNET SWITCH
28246-25010

T,2T#..TA1#

12V 0.8KW

 1
Common parts
90092-20604
90092-20801
90099-00092
90099-00112
90099-00711
90099-01098
90099-02169
90099-04134
90116-10021
90179-10125
91621-41040
94120-40800
94511-00600
94511-00800
