TA14L-KDF (1975)
Toyota Carina
(7012-7707)

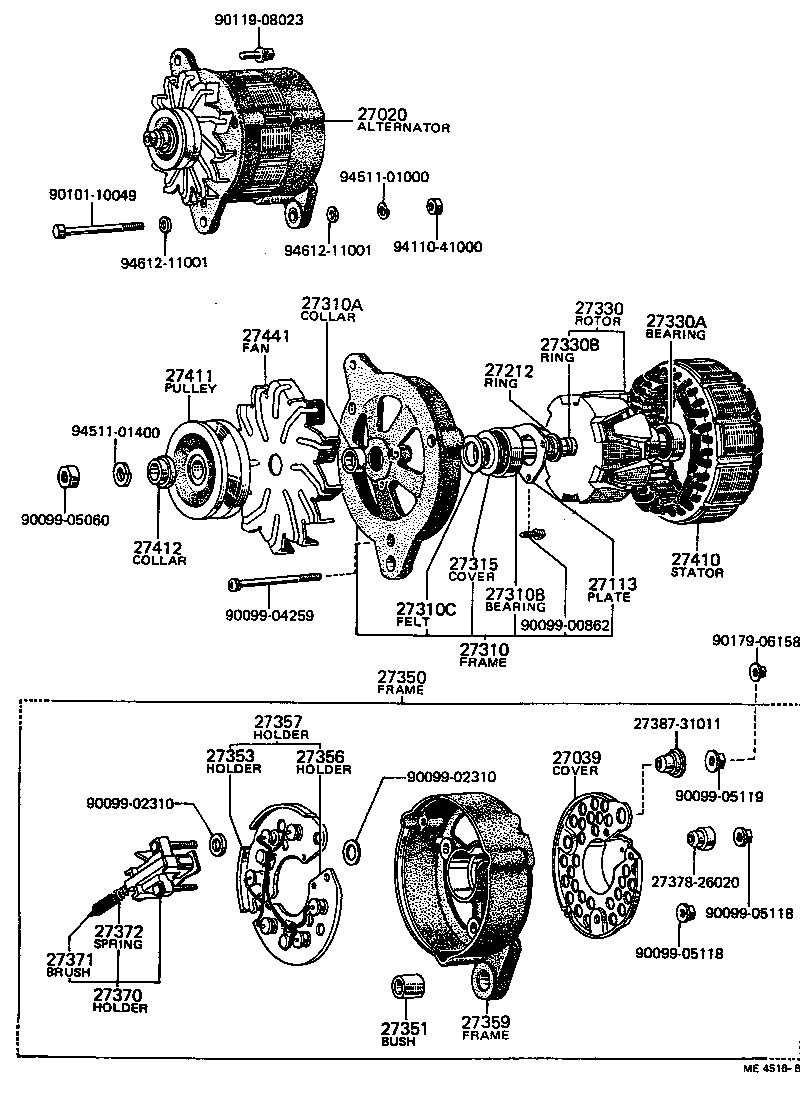

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-25010 |
T,2T#..TA1# 12V 40A |
1 | ||
| 27020-26061 |
2T#..TA14..LHD 12V 50A |
1 | ||
| 27020-26032 |
2T#..TA14 12V 45A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-33011 |
T,2T#..TA1# |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-31011 |
T,2T#..TA1# |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
T,2T#..TA1# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-34030 |
2T#..TA14..LHD 12V 50A |
1 | ||
| 27310-31011 |
T,2T#..TA1# |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-19203 |
T,2T#..TA1# |
1 | ||
| 27412-31040 |
2T#..TA14..LHD 12V 50A |
1 | ||
| 27412-44030 |
2T#..TA14..LHD 12V 50A |
1 | ||
| 27412-19075 |
2T#..TA14 12V 45A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10013 |
T,2T#..TA1# 6203Z |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02004 |
T,2T#..TA1# |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27313-31011 |
T,2T#..TA1# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-33010 |
T,2T#..TA1# |
1 | ||
| 27330-43012 |
2T#..TA14 12V 45A |
1 | ||
| 27330-45020 |
2T#..TA14..LHD 12V 50A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10103 |
2T#..TA14..LHD 6201ZZ |
1 | ||
| 97110-06201 |
T,2T#..TA1# 6201Z |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07048 |
T,2T#..TA1# |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-25010 |
T,2T#..TA1# |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
2T#..TA14..LHD 12V 50A |
1 | ||
| 27351-25010 |
2T#..TA14 12V 45A |
1 | ||
| 27351-25010 |
T,2T#..TA1# |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-31012 |
T,2T#..TA1# |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-31012 |
T,2T#..TA1# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-31012 |
T,2T#..TA1# |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-44032 |
2T#..TA14..LHD 12V 50A |
1 | ||
| 27359-31080 |
2T#..TA14 12V 45A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31012 |
T,2T#..TA1# |
1 | ||
| 27370-45061 |
2T#..TA14 |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
T,2T#..TA1# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
T,2T#..TA1# |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-26030 |
2T#..TA14 |
1 | ||
| 27410-33010 |
T,2T#..TA1# |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31042 |
2T#..TA14..LHD 12V 50A |
1 | ||
| 27411-25010 |
T,2T#..TA1# |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-31011 |
T,2T#..TA1# |
1 | ||
| 27441-34030 |
2T#..TA14 |
1 | ||
| Common parts | ||||
| 27378-26020 | ||||
| 27387-31011 | ||||
| 90099-00862 | ||||
| 90099-02310 | ||||
| 90099-04259 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90119-08023 | ||||
| 90179-06158 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
| 94612-11001 | ||||
