TA14L-KDF (1975)
Toyota Carina
Production
Oct 1975
-
Jul 1977
Engine
2T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7012-7707)

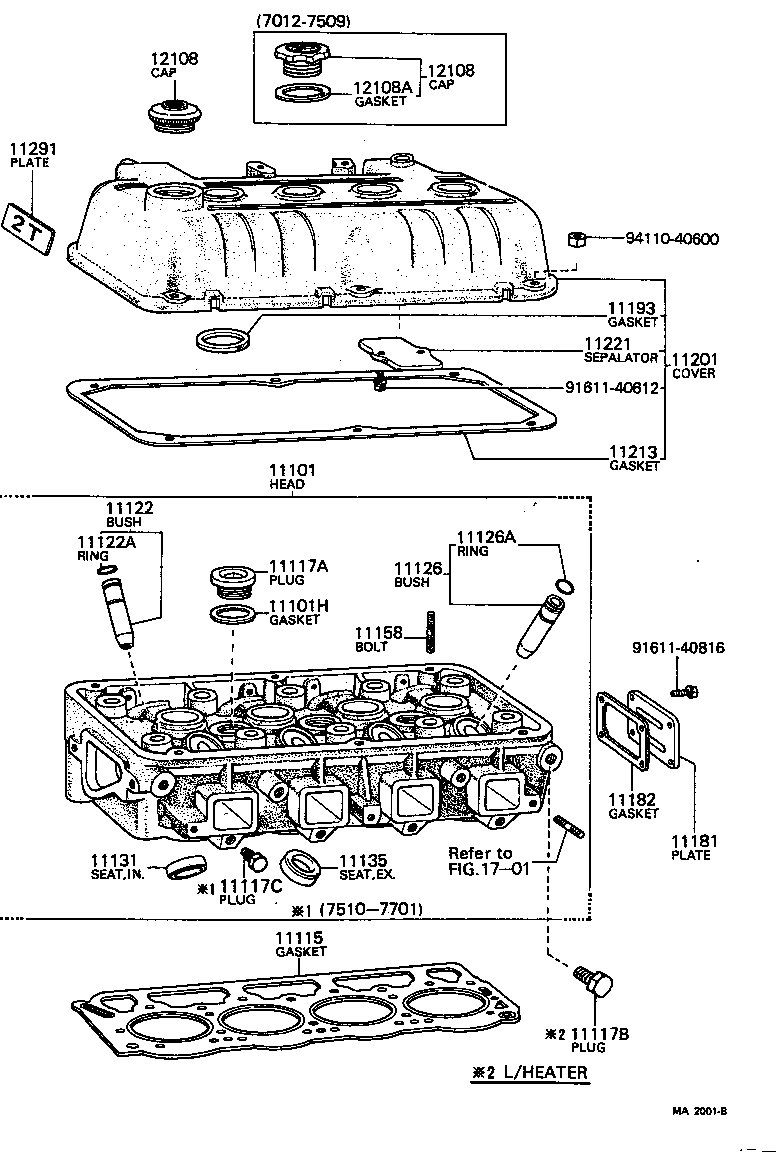

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-29226 |
2T..TA14 |
1 | ||
| 11101-29245 |
2T..TA14 |
1 | ||
| 11101-29085 |
T,2T..TA1# |
1 | ||
| 11101-29228 |
2T..TA14 |
1 | ||
| 11101-29227 |
2T..TA14 |
1 | ||
| 11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-33133 |
T,2T#..TA1# ID=32.5,OD=41 |
6 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90341-32028 |
T,2T#..TA1# D=32,P=1.5 |
3 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90345-53007 |
T,2T#..TA1# L/HEATER |
1 | ||
| 11117C - PLUG, W/HEAD TAPER SCREW, NO.3 | ||||
| 90341-14004 |
2T#..TA14 |
4 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-25040 |
T,2T..TA1# O/S 0.05 |
4 | ||
| 11122-25040 |
T,2T..TA1# STD |
4 | ||
| 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
T,2T#..TA1# |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-25040 |
T,2T..TA1# STD |
4 | ||
| 11127-25040 |
T,2T..TA1# O/S 0.05 |
4 | ||
| 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
T,2T#..TA1# |
4 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-25010 |
T,2T#..TA1# O/S 0.03 |
4 | ||
| 11131-25010 |
T,2T#..TA1# STD |
4 | ||
| 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) | ||||
| 90116-06115 |
T,2T#..TA1# L=28,S=10&10 |
6 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-25010 |
T,2T#..TA1# |
1 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-25010 |
T,2T#..TA1# |
1 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-25010 |
T,2T#..TA1# |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-29035 |
T,2T..TA1# W/P.C.V. |
1 | ||
| 11201-29075 |
T,2T..TA1# L/P.C.V. |
1 | ||
| 11201-29125 |
2T#..TA14 |
1 | ||
| 11201-29038 |
2T#..TA14 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-25010 |
T,2T#..TA1# |
1 | ||
| 11221 - SEPARATOR, CYLINDER HEAD COVER, NO.1 | ||||
| 11221-25010 |
T,2T#..TA1# |
1 | ||
| 11291 - PLATE, ENGINE NAME | ||||
| 11291-26020 |
2T..TA12,14 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12181-31020 |
2T#..TA14 |
1 | ||
| 12181-12903 |
T,2T#..TA1# |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12181-31020 |
2T#..TA14 |
1 | ||
| 12181-12903 |
T,2T#..TA1# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
T,2T#..TA1# |
1 | ||
| Common parts | ||||
| 91611-40612 | ||||
| 91611-40816 | ||||
| 94110-40600 | ||||
| Linked diagrams | ||||
| 1701 | ||||
