TA14L-HDF (1975)
Toyota Carina
Production
Oct 1975
-
Jul 1977
Engine
2T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7510-7707)

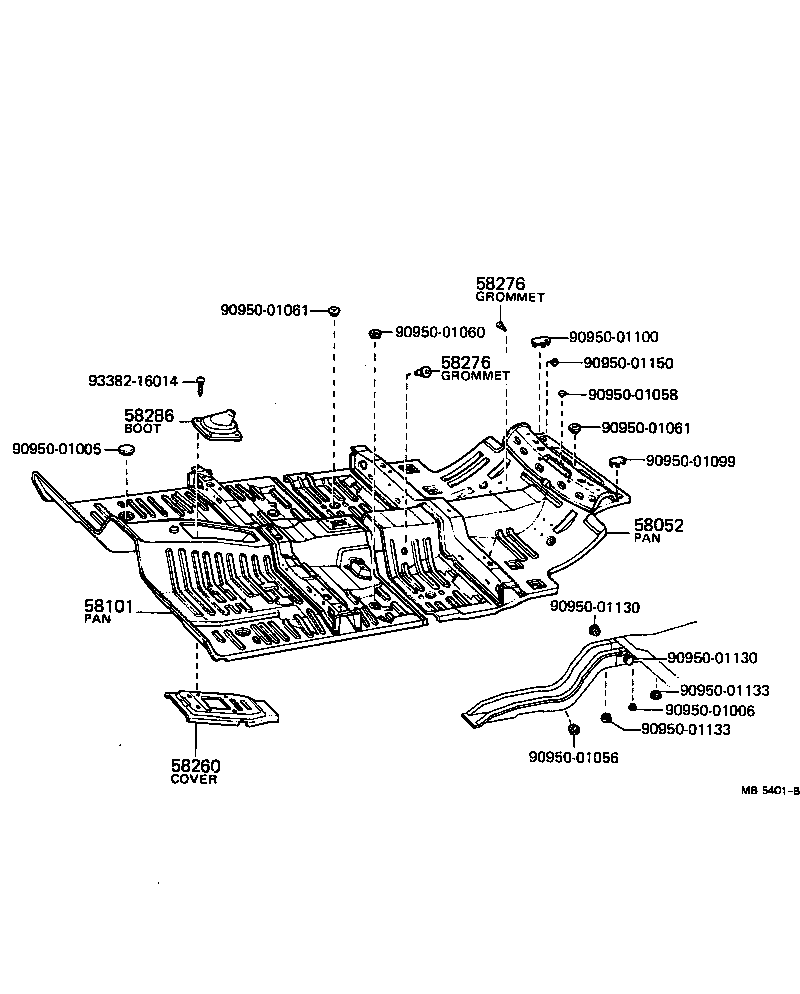

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58052 - PAN SUB-ASSY, CENTER FLOOR | ||||
| 58202-14031 |
TA14 |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58101-14012 |
TA14 |
1 | ||
| 58260 - COVER ASSY, TRANSMISSION, FRONT | ||||
| 58281-14032 |
TA14..3FC |
1 | ||
| 58276 - GROMMET, SAFETY BAND ANCHORAGE NUT | ||||
| 90950-01126 |
TA1# OD=12 |
6 | ||
| 58276 - GROMMET, SAFETY BAND ANCHORAGE NUT | ||||
| 90950-01126 |
TA1# OD=12 |
6 | ||
| Common parts | ||||
| 90950-01005 | ||||
| 90950-01006 | ||||
| 90950-01056 | ||||
| 90950-01058 | ||||
| 90950-01060 | ||||
| 90950-01061 | ||||
| 90950-01099 | ||||
| 90950-01100 | ||||
| 90950-01130 | ||||
| 90950-01133 | ||||
| 90950-01150 | ||||
| 93382-16014 | ||||
(7510-7707)

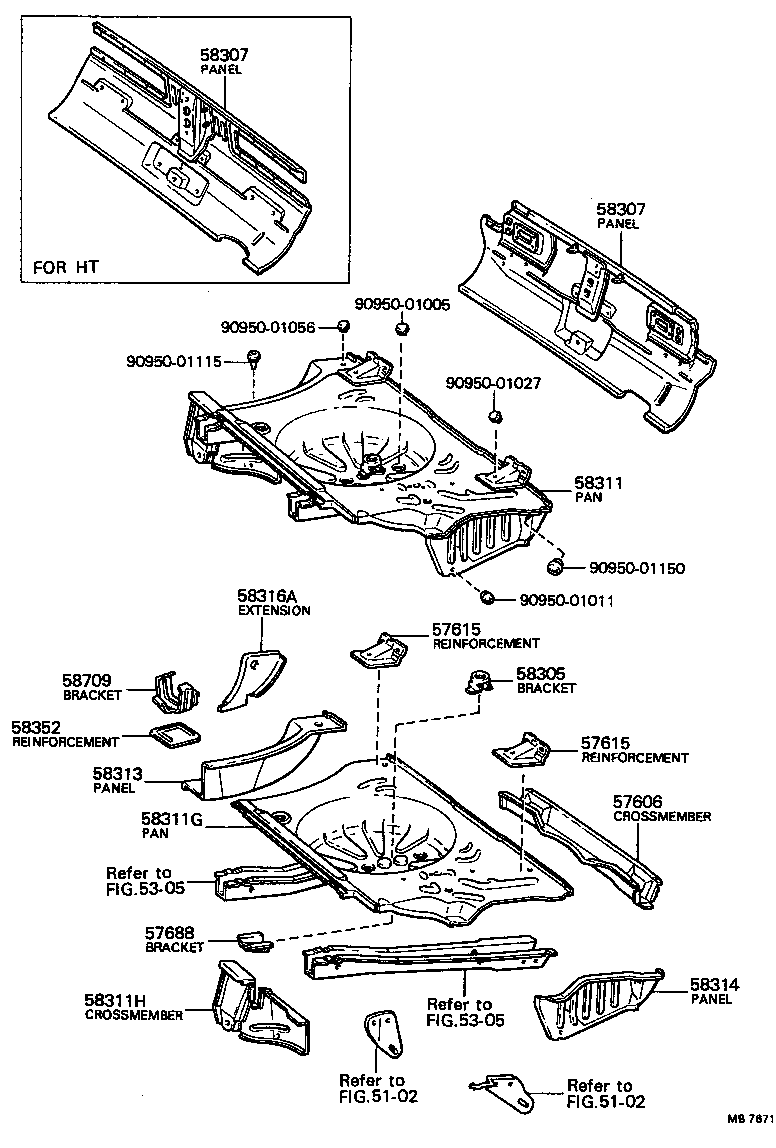

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57606 - CROSSMEMBER SUB-ASSY, REAR FLOOR REAR, INNER | ||||
| 57606-14010 |
TA14 |
1 | ||
| 57615 - REINFORCEMENT, REAR BUMPER STAY SUPPORT | ||||
| 57615-14010 |
TA1# RH. |
1 | ||
| 57616-14010 |
TA1# LH. |
1 | ||
| 57615 - REINFORCEMENT, REAR BUMPER STAY SUPPORT | ||||
| 57615-14010 |
TA1# RH. |
1 | ||
| 57616-14010 |
TA1# LH. |
1 | ||
| 57688 - BRACKET, EXHAUST PIPE CLAMP, NO.2 | ||||
| 57688-14012 |
TA14 |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
TA14 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-14010 |
TA1# |
1 | ||
| 58307-14900 |
TA14 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-14010 |
TA1# |
1 | ||
| 58307-14900 |
TA14 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58301-14010 |
TA1# |
1 | ||
| 58301-14911 |
TA14 |
1 | ||
| 58301-14012 |
TA14 |
1 | ||
| 58311G - PAN,REAR FLOOR | ||||
| 58311-14012 |
TA14 |
1 | ||
| 58311H - CROSSMEMBER SUB-ASSY, REAR FLOOR, FRONT | ||||
| 57605-14011 |
TA14 |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-14010 |
TA1# |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-14010 |
TA1# |
1 | ||
| 58316A - EXTENSION, REAR FLOOR SIDE PANEL, REAR RH | ||||
| 58316-14010 |
TA1# |
1 | ||
| 58352 - REINFORCEMENT, JACK CLAMP | ||||
| 58352-14040 |
TA14 |
1 | ||
| 58709 - BRACKET SUB-ASSY, JACK CLAMP | ||||
| 58709-14010 |
TA1# |
1 | ||
| Common parts | ||||
| 90950-01005 | ||||
| 90950-01011 | ||||
| 90950-01027 | ||||
| 90950-01056 | ||||
| 90950-01115 | ||||
| 90950-01150 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5305 | ||||
