TA14L-HDF (1975)

Toyota Carina

Production Oct 1975 - Jul 1977
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7510-7707)

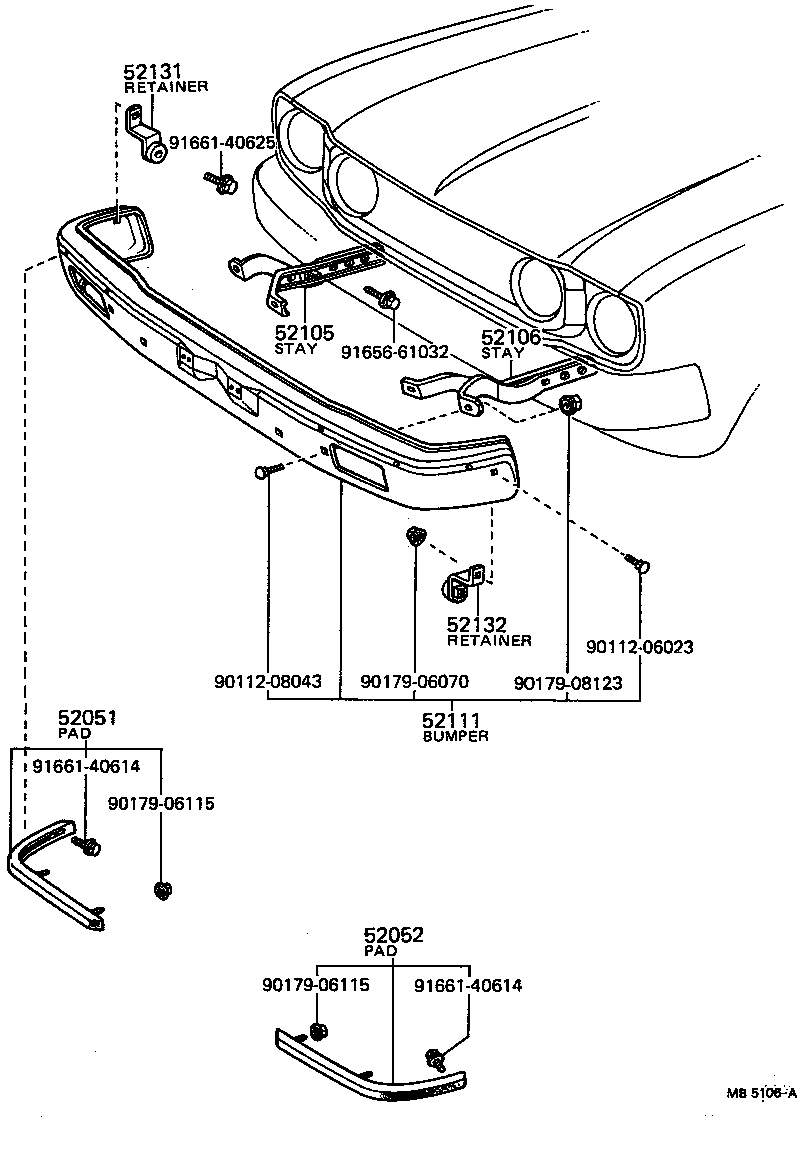

Click highlighted areas on diagram

diagram 52051 52052 52105 52106 52111 52131 52132 9011206023 9011208043 9017906070 9017906115 9017906115 9017908123 9165661032 9166140614 9166140614 9166140625
Part # Description Qty Price
52051 - PAD SUB-ASSY, FRONT BUMPER, RH
52051-19025

TA14

 1
52052 - PAD SUB-ASSY, FRONT BUMPER, LH
52052-19025

TA14

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-14010

TA1#

 1
52011-14012

TA14

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-14012

TA14

 1
52012-14010

TA1#

 1
52111 - BUMPER ASSY, FRONT
52111-19085

TA1#

 1
52111-19245

TA14

FOR PAD

 1
52111-19086

TA14..DLX,STD

 1
52131 - RETAINER, FRONT BUMPER SIDE, RH
52131-14010

TA1#

 1
52145-14050

TA14

 1
52132 - RETAINER, FRONT BUMPER SIDE, LH
52145-14050

TA14

 1
52132-14010

TA1#

 1
Common parts
90112-06023
90112-08043
90179-06070
90179-06115
90179-08123
91656-61032
91661-40614
91661-40625
