TA14L-HDF (1975)

Toyota Carina

Production Oct 1975 - Jul 1977
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)

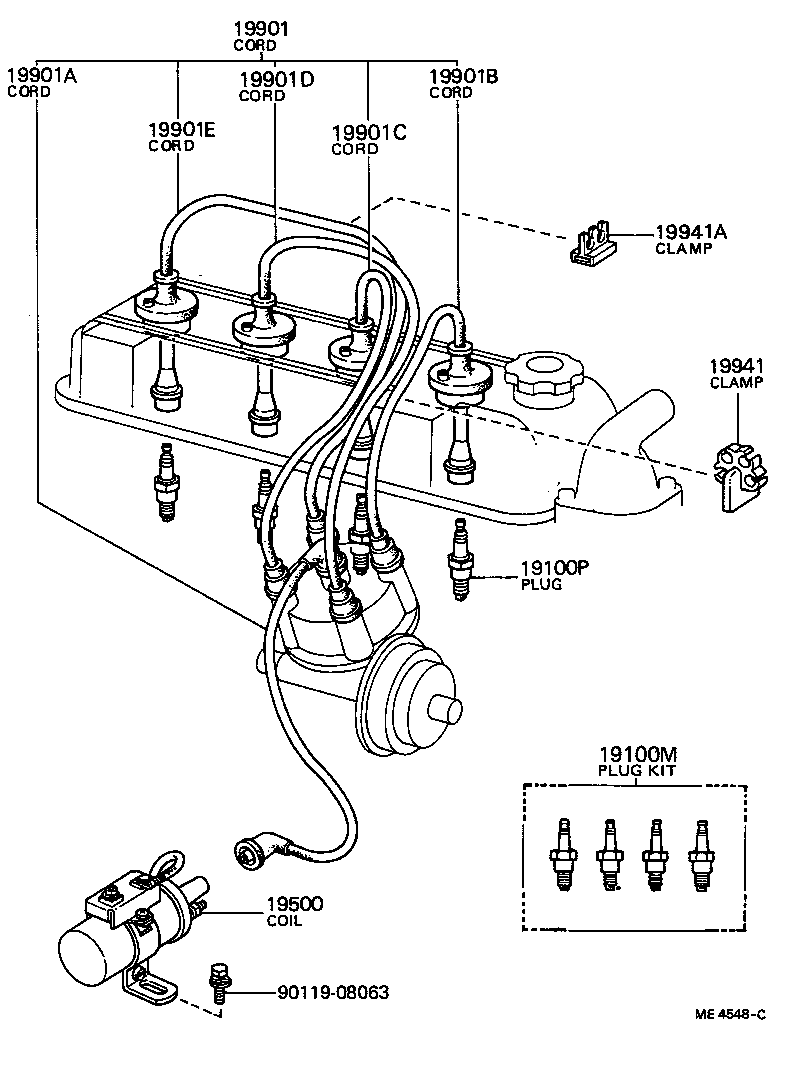

Click highlighted areas on diagram

diagram 19100M 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19941 19941A 9011908063
Part # Description Qty Price
19100M - PLUG KIT, SPARK
04195-34020

T,2T..TA1#

W20EP

 1
19100P - PLUG, SPARK
90919-01051

2T#..TA14

W16EPR OR W16EXR-U,W16EPR

 4
90999-09001

T,2T..TA1#

W20EP

 4
19500 - COIL ASSY, IGNITION
90919-02014

T,2T#..TA1#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21023

T,2T..TA1#

ARCTIC

 1
90919-21021

T,2T..TA1#

 1
19901A - CORD, COIL RESISTIVE
99231-20320

T,2T..TA1#

 1
90919-13026

2T#..TA14

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12055

T,2T#..TA1#

 1
90919-12067

T,2T..TA1#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12056

T,2T#..TA1#

 1
90919-12067

T,2T..TA1#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12070

T,2T..TA1#

 1
90919-12057

T,2T..TA1#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12066

T,2T..TA1#

 1
90919-12058

T,2T..TA1#

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00009

T,2T..TA1#

 1
19941A - CLAMP(FOR RESISTIVE CORD)
90464-00001

T,2T#..TA1#

 1
Common parts
90119-08063
