TA14L-HD (1975)
Toyota Carina
Production
Oct 1975
-
Jul 1977
Engine
2T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7510-7707)

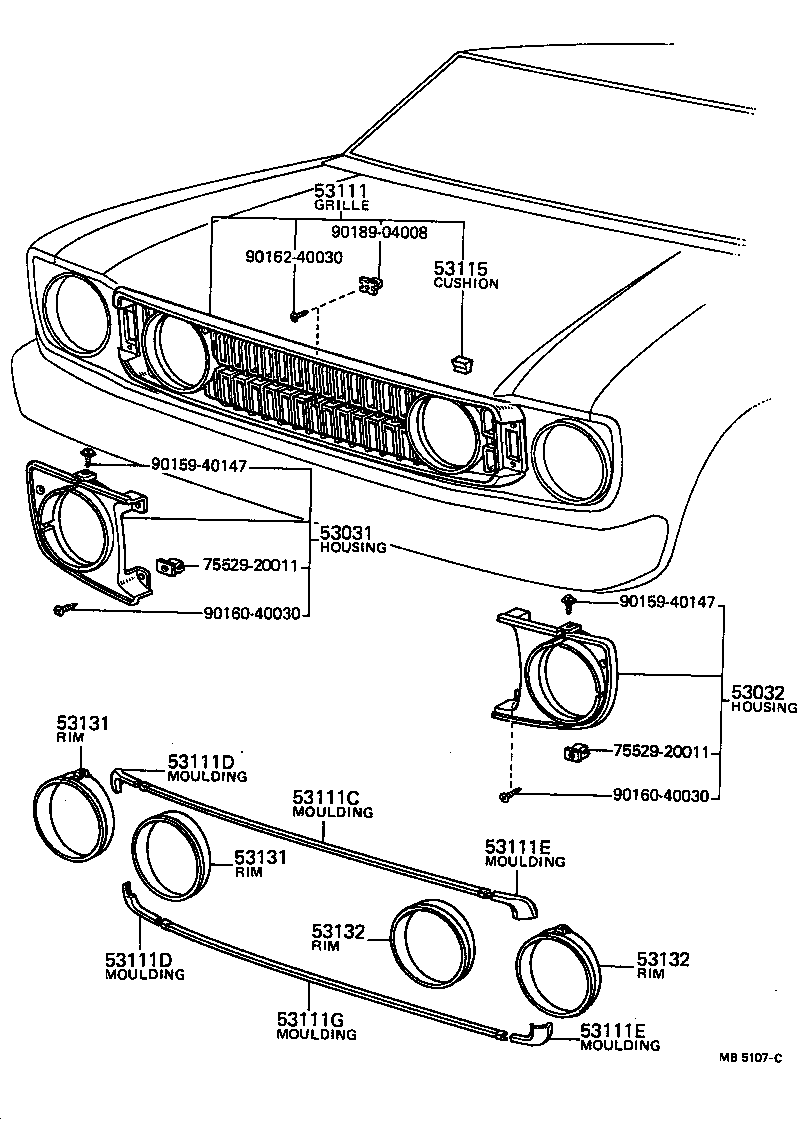

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53031 - HOUSING, HEADLAMP, RH | ||||
| 53131-19245 |
TA14 |
1 | ||
| 53032 - HOUSING, HEADLAMP, LH | ||||
| 53132-19245 |
TA14 |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53111-19015 |
TA1# |
1 | ||
| 53111-14917 |
TA14..DLX,STD |
1 | ||
| 53115 - CUSHION, RUBBER(FOR RADIATOR GRILLE) | ||||
| 53193-14010 |
TA14 |
2 | ||
| 53131 - RIM, HEADLAMP, RH | ||||
| 53157-14010 |
TA14 INNER |
1 | ||
| 53027-14030 |
TA14 INNER |
1 | ||
| 53131-19075 |
TA1# |
1 | ||
| 53025-14020 |
TA14 OUTER |
1 | ||
| 53131 - RIM, HEADLAMP, RH | ||||
| 53157-14010 |
TA14 INNER |
1 | ||
| 53027-14030 |
TA14 INNER |
1 | ||
| 53131-19075 |
TA1# |
1 | ||
| 53025-14020 |
TA14 OUTER |
1 | ||
| 53132 - RIM, HEADLAMP, LH | ||||
| 53027-14030 |
TA14 INNER |
1 | ||
| 53026-14020 |
TA14 OUTER |
1 | ||
| 53132-19075 |
TA1# |
1 | ||
| 53157-14010 |
TA14 INNER |
1 | ||
| 53132 - RIM, HEADLAMP, LH | ||||
| 53027-14030 |
TA14 INNER |
1 | ||
| 53026-14020 |
TA14 OUTER |
1 | ||
| 53132-19075 |
TA1# |
1 | ||
| 53157-14010 |
TA14 INNER |
1 | ||
| Common parts | ||||
| 75529-20011 | ||||
| 90159-40147 | ||||
| 90160-40030 | ||||
| 90162-40030 | ||||
| 90189-04008 | ||||
