TA12L-MS (1972)

Toyota Carina

Production Aug 1972 - Sep 1975
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7509)

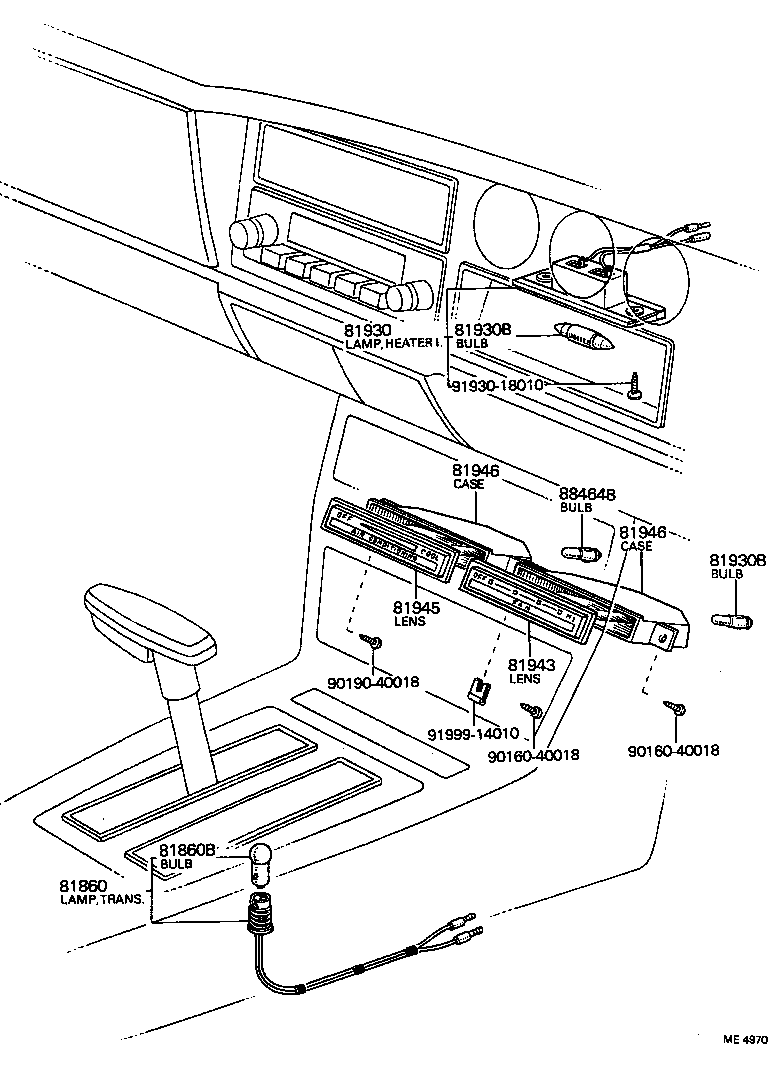

Click highlighted areas on diagram

diagram 81860 81860B 81930 81930B 81930B 81943 81945 81946 81946 88464B 9016040018 9016040018 9019040018 9193018010 9199914010
Part # Description Qty Price
81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1
81930-22012

TA1#

 1
81930B - BULB, HEATER CONTROL INDICATOR LAMP
90981-11010

TA1#

12V 2W,12V 2W

 1
90981-11009

TA1#

12V 1.5W

 1
81930B - BULB, HEATER CONTROL INDICATOR LAMP
90981-11010

TA1#

12V 2W,12V 2W

 1
90981-11009

TA1#

12V 1.5W

 1
81943 - LENS, HEATER CONTROL INDICATOR
81943-14020

TA1#

 1
81945 - LENS, COOLER CONTROL INDICATOR LAMP
81943-14030

TA1#

 1
81946 - CASE, LAMP
81946-14010

TA1#

 2
81946 - CASE, LAMP
81946-14010

TA1#

 2
88464B - BULB, COOLER INDICATOR LAMP
90981-11009

TA1#

12V 1.5W

 1
Common parts
90160-40018
90190-40018
91930-18010
91999-14010
