TA12L-MS (1972)
Toyota Carina
Production
Aug 1972
-
Sep 1975
Engine
2TB
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7012-7509)

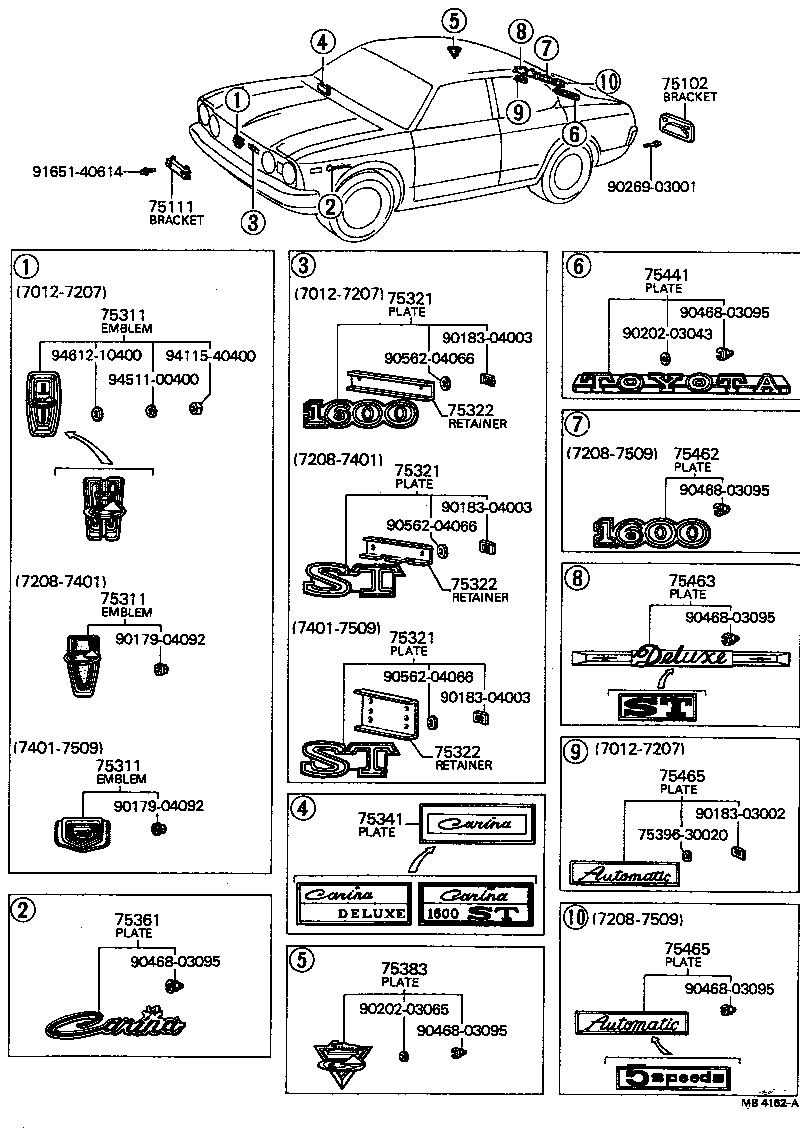

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE | ||||
| 75102-14020 |
TA1# |
1 | ||
| 75111 - BRACKET, FRONT LICENSE PLATE | ||||
| 75101-14010 |
TA1# |
1 | ||
| 75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) | ||||
| 75311-19076 |
TA1# |
1 | ||
| 75311-19077 |
TA1# |
1 | ||
| 75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) | ||||
| 75311-19076 |
TA1# |
1 | ||
| 75311-19077 |
TA1# |
1 | ||
| 75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) | ||||
| 75311-19076 |
TA1# |
1 | ||
| 75311-19077 |
TA1# |
1 | ||
| 75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME | ||||
| 75321-19085 |
TA12 1600 |
1 | ||
| 75321-19087 |
TA12..ST ST |
1 | ||
| 75321-19086 |
TA12..ST ST |
1 | ||
| 75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME | ||||
| 75321-19085 |
TA12 1600 |
1 | ||
| 75321-19087 |
TA12..ST ST |
1 | ||
| 75321-19086 |
TA12..ST ST |
1 | ||
| 75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME | ||||
| 75321-19085 |
TA12 1600 |
1 | ||
| 75321-19087 |
TA12..ST ST |
1 | ||
| 75321-19086 |
TA12..ST ST |
1 | ||
| 75322 - RETAINER, RADIATOR GRILLE NAME PLATE | ||||
| 75325-14120 |
TA12..ST |
1 | ||
| 75325-14010 |
TA12 |
1 | ||
| 75325-14011 |
TA12..ST |
1 | ||
| 75322 - RETAINER, RADIATOR GRILLE NAME PLATE | ||||
| 75325-14120 |
TA12..ST |
1 | ||
| 75325-14010 |
TA12 |
1 | ||
| 75325-14011 |
TA12..ST |
1 | ||
| 75322 - RETAINER, RADIATOR GRILLE NAME PLATE | ||||
| 75325-14120 |
TA12..ST |
1 | ||
| 75325-14010 |
TA12 |
1 | ||
| 75325-14011 |
TA12..ST |
1 | ||
| 75341 - PLATE, INSTRUMENT PANEL NAME, NO.1 | ||||
| 55461-14050 |
TA12..ST CARINA 1600 ST |
1 | ||
| 55461-14010 |
TA1# CARINA |
1 | ||
| 75361 - PLATE, FRONT FENDER NAME, NO.1 (MODEL MARK) | ||||
| 75361-14901 |
TA1# CARINA |
2 | ||
| 75441 - PLATE, REAR NAME, NO.1 | ||||
| 75461-14901 |
TA1# TOYOTA |
1 | ||
| 75461-14902 |
TA1# TOYOTA |
1 | ||
| 75462 - PLATE, REAR NAME, NO.3 (DISPLACEMENT) | ||||
| 75441-20906 |
TA12..ST 1600 |
1 | ||
| 75465 - PLATE, REAR NAME, NO.5 (MECHANISM) | ||||
| 75442-20030 |
TA12..ST 5 SPEEDS |
1 | ||
| 75465 - PLATE, REAR NAME, NO.5 (MECHANISM) | ||||
| 75442-20030 |
TA12..ST 5 SPEEDS |
1 | ||
| Common parts | ||||
| 75396-30020 | ||||
| 90179-04092 | ||||
| 90183-03002 | ||||
| 90183-04003 | ||||
| 90202-03043 | ||||
| 90202-03065 | ||||
| 90269-03001 | ||||
| 90468-03095 | ||||
| 90562-04066 | ||||
| 91651-40614 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
| 94612-10400 | ||||
