TA12L-MS (1972)

Toyota Carina

Production Aug 1972 - Sep 1975
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)2D

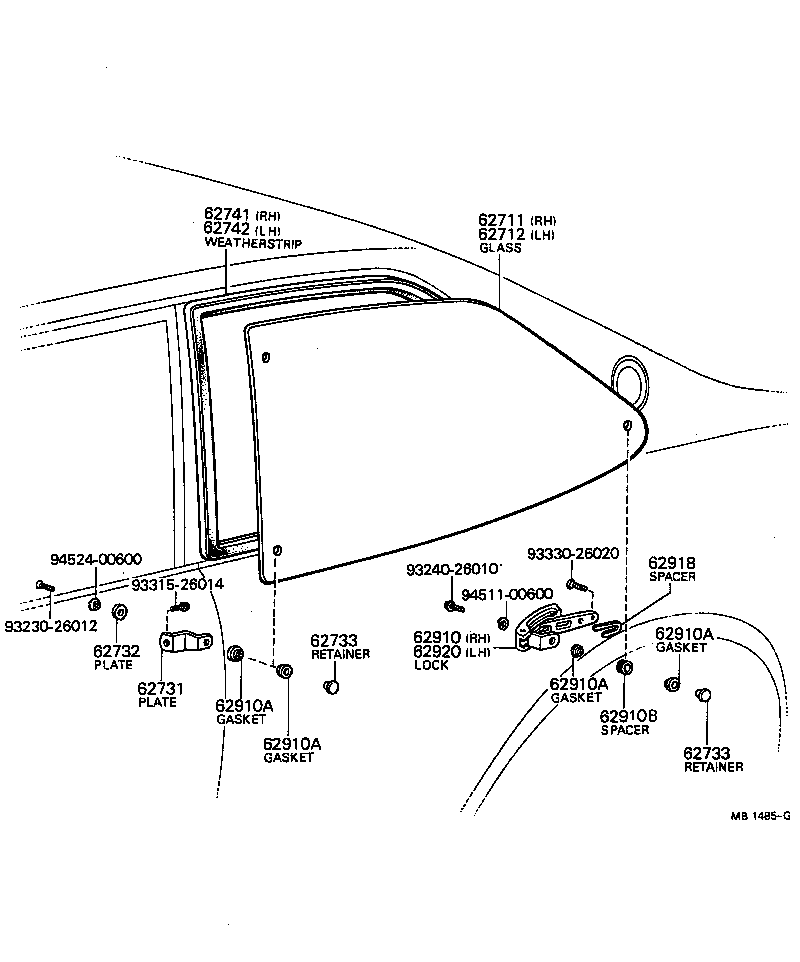

Click highlighted areas on diagram

diagram 62711 62712 62731 62732 62733 62733 62741 62742 62910 62910A 62910A 62910A 62910A 62910B 62918 62920 9323026012 9324026010 9331526014 9333026020 9451100600 9452400600
Part # Description Qty Price
62711 - GLASS, QUARTER WINDOW, RH
62711-14010

TA1#..(ST,STD)..2D

TP.T=4.0

 1
62711-14020

TA1#..2D

TN.TP. T=4.0

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-14020

TA1#..2D

TN.TP. T=4.0

 1
62712-14010

TA1#..(ST,STD)..2D

TP.T=4.0

 1
62731 - PLATE, QUARTER OR SIDE WINDOW HINGE
62731-14010

TA1#..2D

 4
62732 - PLATE, QUARTER OR SIDE WINDOW HINGE FINISH
62732-12010

TA1#..2D

 4
62733 - RETAINER, QUARTER OR SIDE WINDOW HINGE
62733-12010

TA1#..2D

 6
62733 - RETAINER, QUARTER OR SIDE WINDOW HINGE
62733-12010

TA1#..2D

 6
62741 - WEATHERSTRIP, QUARTER WINDOW, RH
62741-14010

TA1#..2D

 1
62742 - WEATHERSTRIP, QUARTER WINDOW, LH
62742-14010

TA1#..2D

 1
62910 - LOCK ASSY, QUARTER OR SIDE WINDOW, RH
62910-14010

TA1#..2D

 1
62910A - GASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)
62734-12010

TA1#..2D

 12
62910A - GASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)
62734-12010

TA1#..2D

 12
62910A - GASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)
62734-12010

TA1#..2D

 12
62910A - GASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)
62734-12010

TA1#..2D

 12
62910B - SPACER, QUARTER WINDOW LOCK SET
90560-08210

TA1#..2D

 2
62918 - SPACER, QUARTER WINDOW LOCK SUPPORT
62918-14010

TA1#..2D

 6
62920 - LOCK ASSY, QUARTER WINDOW, LH
62910-14010

TA1#..2D

 1
Common parts
93230-26012
93240-26010
93315-26014
93330-26020
94511-00600
94524-00600
