TA12L-KDF (1970)
Toyota Carina
Production
Dec 1970
-
Sep 1975
Engine
2T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

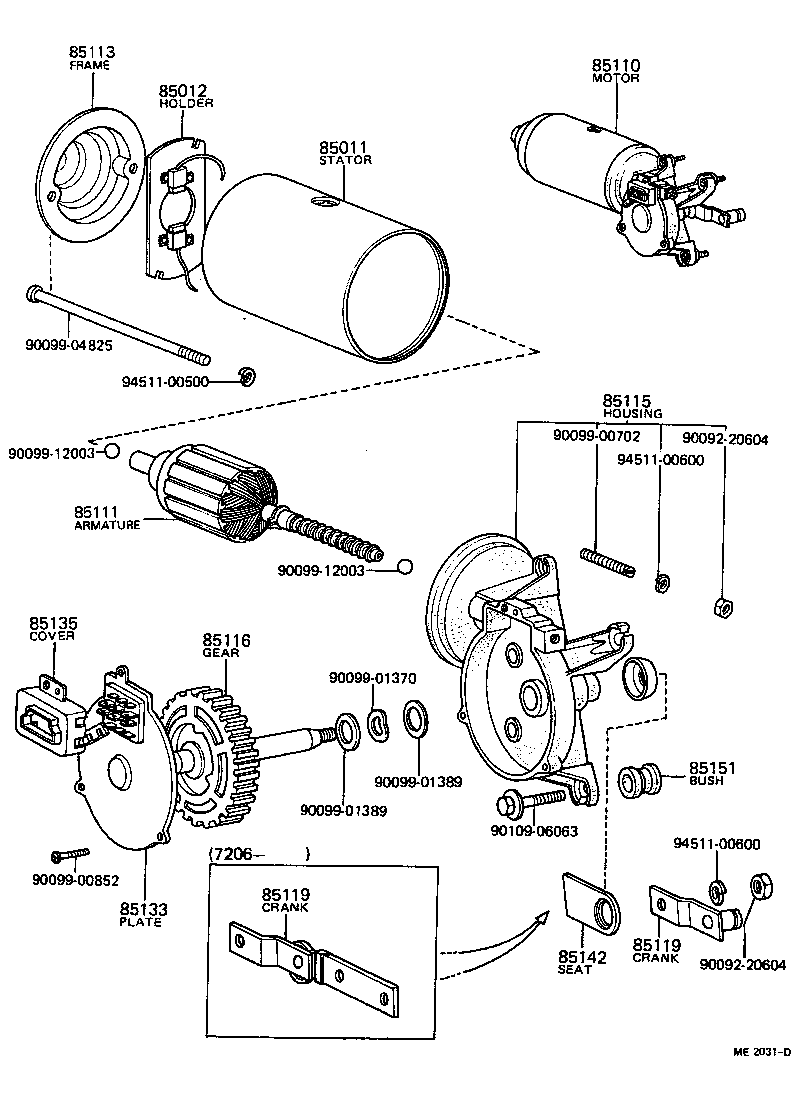

(7012-7509)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85011 - STATOR SUB-ASSY, WINDSHIELD WIPER MOTOR | ||||
| 85011-20040 |
TA1# |
1 | ||
| 85012 - HOLDER SUB-ASSY, WINDSHIELD WIPER MOTOR BRUSH | ||||
| 85012-10010 |
TA1# |
1 | ||
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-20052 |
TA1#..LHD |
1 | ||
| 85110-20051 |
TA1#..LHD |
1 | ||
| 85110-20050 |
TA1#..LHD |
1 | ||
| 85111 - ARMATURE, WINDSHIELD WIPER MOTOR | ||||
| 85111-22010 |
TA1# |
1 | ||
| 85113 - FRAME, WINDSHIELD WIPER MOTOR END | ||||
| 85113-30020 |
TA1# |
1 | ||
| 85115 - HOUSING, WINDSHIELD WIPER MOTOR GEAR | ||||
| 85115-20050 |
TA1#..LHD |
1 | ||
| 85116 - GEAR, WINDSHIELD WIPER MOTOR | ||||
| 85014-20040 |
TA1# |
1 | ||
| 85119 - CRANK, WINDSHIELD WIPER MOTOR | ||||
| 85124-20042 |
TA1# |
1 | ||
| 85124-20040 |
TA1# |
1 | ||
| 85119-20040 |
TA1# |
1 | ||
| 85119 - CRANK, WINDSHIELD WIPER MOTOR | ||||
| 85124-20042 |
TA1# |
1 | ||
| 85124-20040 |
TA1# |
1 | ||
| 85119-20040 |
TA1# |
1 | ||
| 85133 - PLATE, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER | ||||
| 85133-20050 |
TA1#..LHD |
1 | ||
| 85135 - COVER, TERMINAL | ||||
| 85135-20040 |
TA1# |
1 | ||
| 85135-30070 |
TA1# |
1 | ||
| 85142 - SEAT, WINDSHIELD WIPER MOTOR RUBBER | ||||
| 85142-20040 |
TA1# |
1 | ||
| 85151 - BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER | ||||
| 85151-20040 |
TA1# |
4 | ||
| Common parts | ||||
| 90092-20604 | ||||
| 90099-00702 | ||||
| 90099-00852 | ||||
| 90099-01370 | ||||
| 90099-01389 | ||||
| 90099-04825 | ||||
| 90099-12003 | ||||
| 90109-06063 | ||||
| 94511-00500 | ||||
| 94511-00600 | ||||

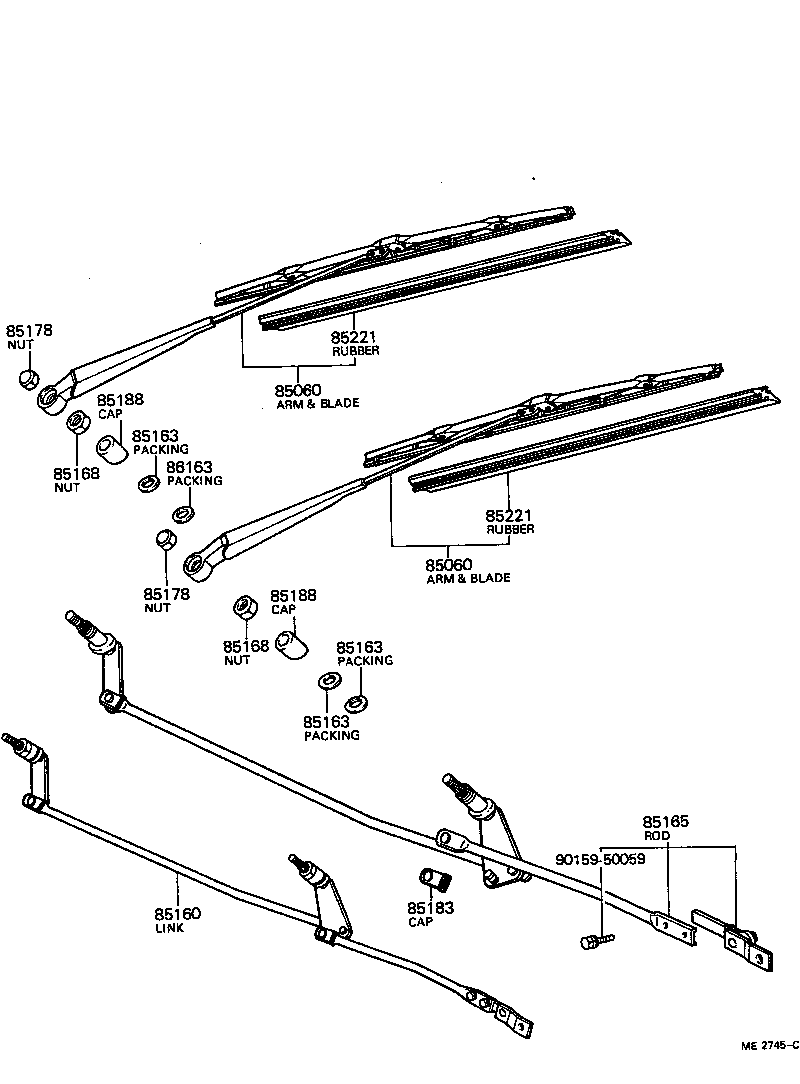

(7401-7509)DLX,STD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85060 - ARM AND BLADE ASSY, WINDSHIELD WIPER | ||||
| 85060-14040 |
TA1#..LHD..(DLX,STD) |
2 | ||
| 85060 - ARM AND BLADE ASSY, WINDSHIELD WIPER | ||||
| 85060-14040 |
TA1#..LHD..(DLX,STD) |
2 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85160-20051 |
TA1#..LHD |
1 | ||
| 85160-20052 |
TA1#..LHD |
1 | ||
| 85160-20050 |
TA1#..LHD |
1 | ||
| 85163 - PACKING, WINDSHIELD WIPER PIVOT | ||||
| 85163-20040 |
TA1# |
4 | ||
| 85163 - PACKING, WINDSHIELD WIPER PIVOT | ||||
| 85163-20040 |
TA1# |
4 | ||
| 85163 - PACKING, WINDSHIELD WIPER PIVOT | ||||
| 85163-20040 |
TA1# |
4 | ||
| 85165 - ROD, WINDSHIELD WIPER LINK W/CRANK | ||||
| 85166-20052 |
TA1#..LHD |
1 | ||
| 85166-20050 |
TA1#..LHD |
1 | ||
| 85168 - NUT, WINDSHIELD WIPER LINK PIVOT | ||||
| 85186-20040 |
TA1# |
2 | ||
| 85186-12090 |
TA1# |
2 | ||
| 85168 - NUT, WINDSHIELD WIPER LINK PIVOT | ||||
| 85186-20040 |
TA1# |
2 | ||
| 85186-12090 |
TA1# |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-08018 |
TA1# |
2 | ||
| 90176-08008 |
TA1# |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-08018 |
TA1# |
2 | ||
| 90176-08008 |
TA1# |
2 | ||
| 85183 - CAP OR ROD, WINDSHIELD WIPER SHIELD | ||||
| 85183-30030 |
TA1# |
2 | ||
| 85183-30031 |
TA1# |
2 | ||
| 85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1 | ||||
| 85185-20040 |
TA1# |
2 | ||
| 85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1 | ||||
| 85185-20040 |
TA1# |
2 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-20050 |
TA1#..DLX,STD |
2 | ||
| 85221-14010 |
TA1#..DLX,STD |
2 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-20050 |
TA1#..DLX,STD |
2 | ||
| 85221-14010 |
TA1#..DLX,STD |
2 | ||
| Common parts | ||||
| 90159-50059 | ||||

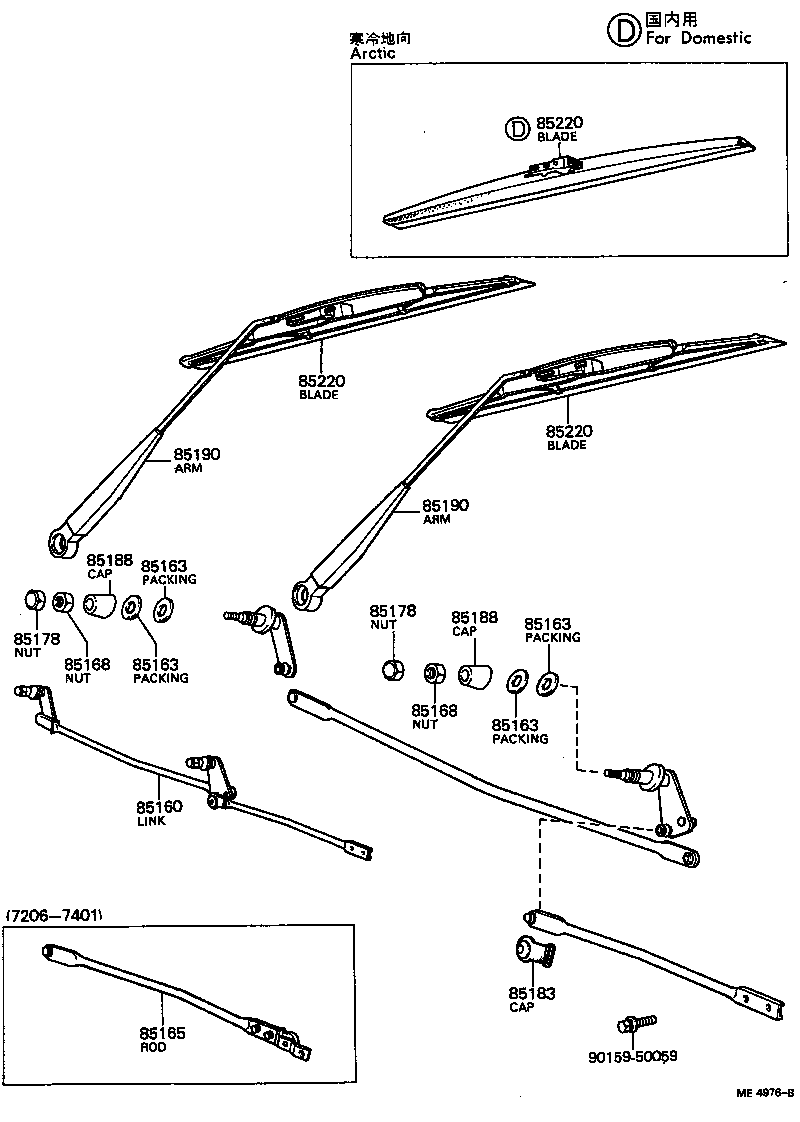

(7012-7401)DLX,STD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85160-20051 |
TA1#..LHD |
1 | ||
| 85160-20052 |
TA1#..LHD |
1 | ||
| 85160-20050 |
TA1#..LHD |
1 | ||
| 85163 - PACKING, WINDSHIELD WIPER PIVOT | ||||
| 85163-20040 |
TA1# |
4 | ||
| 85163 - PACKING, WINDSHIELD WIPER PIVOT | ||||
| 85163-20040 |
TA1# |
4 | ||
| 85163 - PACKING, WINDSHIELD WIPER PIVOT | ||||
| 85163-20040 |
TA1# |
4 | ||
| 85163 - PACKING, WINDSHIELD WIPER PIVOT | ||||
| 85163-20040 |
TA1# |
4 | ||
| 85165 - ROD, WINDSHIELD WIPER LINK W/CRANK | ||||
| 85166-20052 |
TA1#..LHD |
1 | ||
| 85166-20050 |
TA1#..LHD |
1 | ||
| 85168 - NUT, WINDSHIELD WIPER LINK PIVOT | ||||
| 85186-20040 |
TA1# |
2 | ||
| 85186-12090 |
TA1# |
2 | ||
| 85168 - NUT, WINDSHIELD WIPER LINK PIVOT | ||||
| 85186-20040 |
TA1# |
2 | ||
| 85186-12090 |
TA1# |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-08018 |
TA1# |
2 | ||
| 90176-08008 |
TA1# |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-08018 |
TA1# |
2 | ||
| 90176-08008 |
TA1# |
2 | ||
| 85183 - CAP OR ROD, WINDSHIELD WIPER SHIELD | ||||
| 85183-30030 |
TA1# |
2 | ||
| 85183-30031 |
TA1# |
2 | ||
| 85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1 | ||||
| 85185-20040 |
TA1# |
2 | ||
| 85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1 | ||||
| 85185-20040 |
TA1# |
2 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85190-20150 |
TA1#..LHD..(DLX,STD) |
2 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85190-20150 |
TA1#..LHD..(DLX,STD) |
2 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-20050 |
TA1#..DLX,STD |
2 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-20050 |
TA1#..DLX,STD |
2 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-20050 |
TA1#..DLX,STD |
2 | ||
| Common parts | ||||
| 90159-50059 | ||||
