TA12L-KDF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7509)

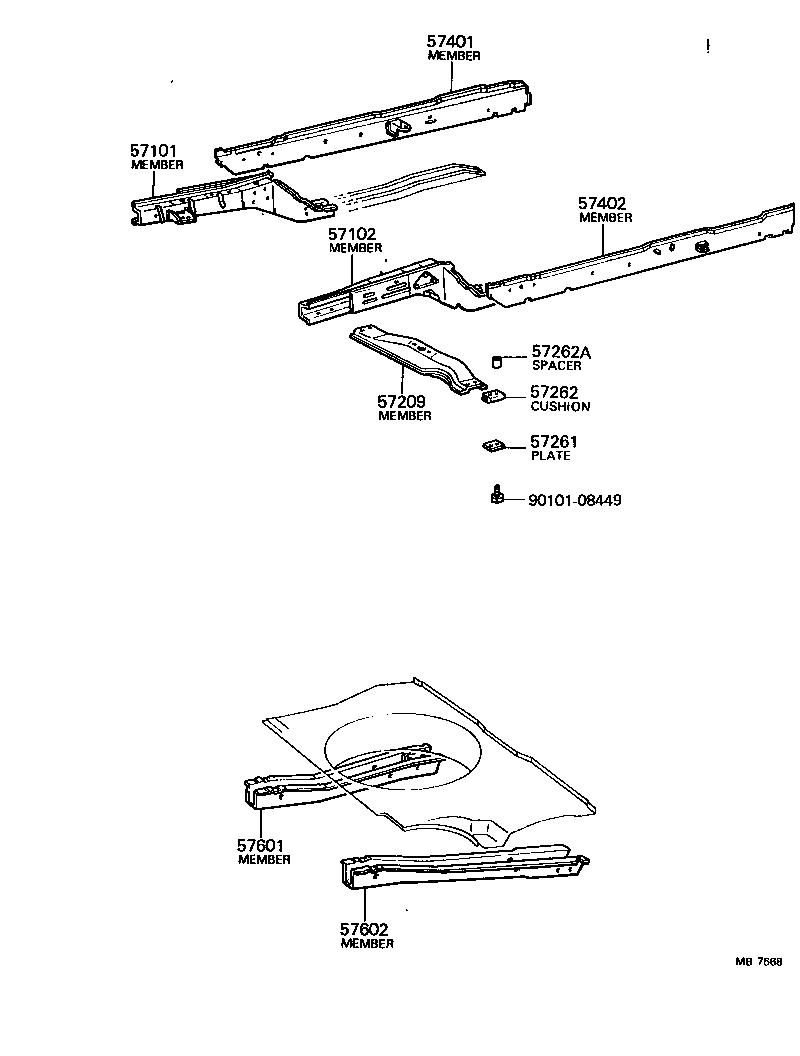

Click highlighted areas on diagram

diagram 57101 57102 57209 57261 57262 57262A 57401 57402 57601 57602 9010108449
Part # Description Qty Price
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-14010

TA1#

 1
57101-14031

TA1#

 1
57101-14030

TA1#

 1
57101-14011

TA1#

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-14012

TA1#

 1
57102-14010

TA1#

 1
57102-14011

TA1#

 1
57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57209-14020

TA1#..MTM

 1
57261 - PLATE, ENGINE REAR SUPPORT MEMBER BOLT LOCK
57026-22010

TA1#

 2
57262 - CUSHION, ENGINE REAR SUPPORT MEMBER
57262-20020

TA1#

 2
57262A - SPACER(FOR ENGINE REAR SUPPORT)
90560-08325

TA1#

 4
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-14010

TA1#

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-14010

TA1#

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-14040

TA1#

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-14040

TA1#

 1
Common parts
90101-08449
