TA12L-KDF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)

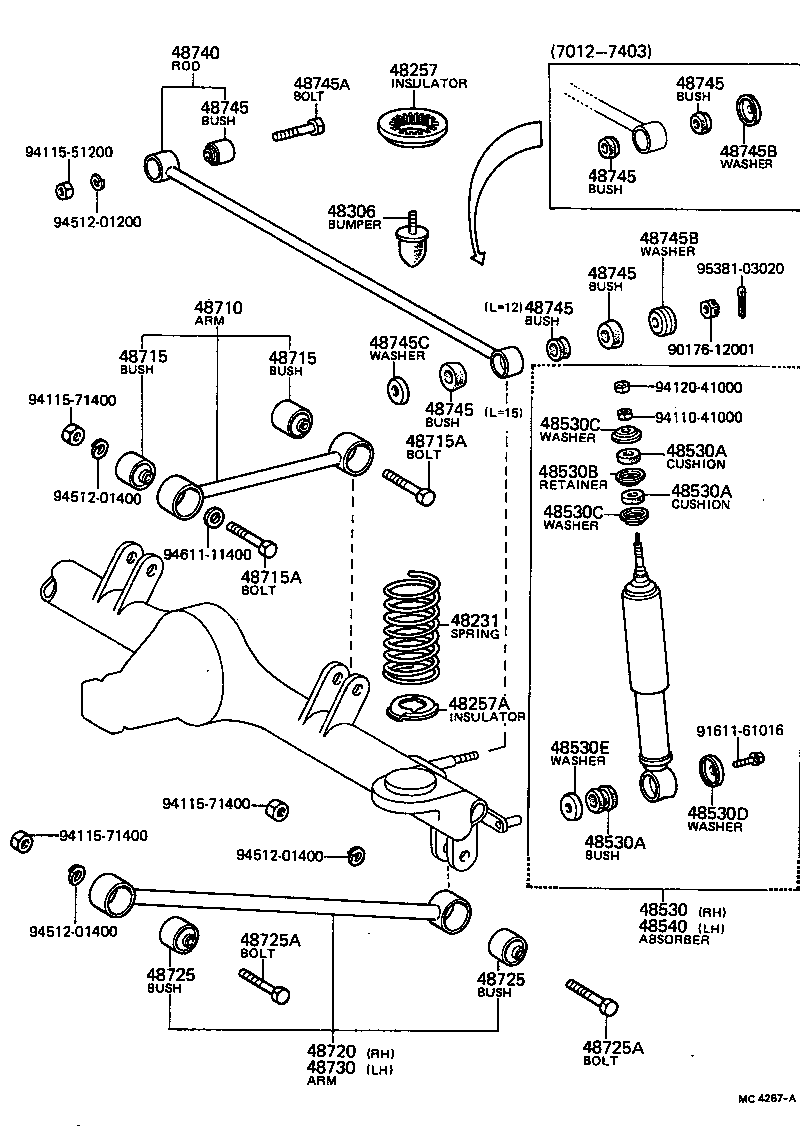

Click highlighted areas on diagram

diagram 48231 48257 48257A 48306 48530 48530A 48530A 48530A 48530B 48530C 48530C 48530D 48530E 48540 48710 48715 48715 48715A 48715A 48720 48725 48725 48725A 48725A 48730 48740 48745 48745 48745 48745 48745 48745 48745A 48745B 48745B 48745C 9017612001 9161161016 9411041000 9411551200 9411571400 9411571400 9411571400 9412041000 9451201200 9451201400 9451201400 9451201400 9461111400 9538103020
Part # Description Qty Price
48231 - SPRING, COIL, REAR
48231-14011

TA1#

 2
48257 - INSULATOR, REAR COIL SPRING
48257-14010

TA1#

 2
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-14010

TA1#

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-19145

TA1#

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

TA1#

LOWER

 4
90948-01003

TA1#

UPPER

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

TA1#

LOWER

 4
90948-01003

TA1#

UPPER

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

TA1#

LOWER

 4
90948-01003

TA1#

UPPER

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-02007

TA1#

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-02002

TA1#

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-02002

TA1#

 4
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03007

TA1#

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

TA1#

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-19145

TA1#

 1
48710 - ARM ASSY, UPPER CONTROL
48710-14010

TA1#

 2
48715 - BUSH, UPPER CONTROL ARM
48702-14010

TA1#

 4
48715 - BUSH, UPPER CONTROL ARM
48702-14010

TA1#

 4
48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM)
90101-14364

TA1#

14-1.5PX130

 2
90101-14363

TA1#

14-1.5PX78

 2
48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM)
90101-14364

TA1#

14-1.5PX130

 2
90101-14363

TA1#

14-1.5PX78

 2
48720 - ARM ASSY, LOWER CONTROL, RH
48720-14010

TA1#

 1
48725 - BUSH, LOWER CONTROL ARM
48702-14020

TA1#

 4
48725 - BUSH, LOWER CONTROL ARM
48702-14020

TA1#

 4
48725A - BOLT(FOR LOWER CONTROL ARM)
90101-14363

TA1#

 4
48725A - BOLT(FOR LOWER CONTROL ARM)
90101-14363

TA1#

 4
48730 - ARM ASSY, LOWER CONTROL, LH
48720-14010

TA1#

 1
48740 - ROD ASSY, REAR LATERAL CONTROL
48740-14010

TA1#

 1
48745 - BUSH, LATERAL CONTROL ROD
90385-16007

TA1#

HOUSING SIDE

 2
48706-14010

TA1#

BODY SIDE

 1
48745 - BUSH, LATERAL CONTROL ROD
90385-16007

TA1#

HOUSING SIDE

 2
48706-14010

TA1#

BODY SIDE

 1
48745 - BUSH, LATERAL CONTROL ROD
90385-16007

TA1#

HOUSING SIDE

 2
48706-14010

TA1#

BODY SIDE

 1
48745 - BUSH, LATERAL CONTROL ROD
90385-16007

TA1#

HOUSING SIDE

 2
48706-14010

TA1#

BODY SIDE

 1
48745 - BUSH, LATERAL CONTROL ROD
90385-16007

TA1#

HOUSING SIDE

 2
48706-14010

TA1#

BODY SIDE

 1
48745 - BUSH, LATERAL CONTROL ROD
90385-16007

TA1#

HOUSING SIDE

 2
48706-14010

TA1#

BODY SIDE

 1
48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD)
91171-71263

TA1#

 1
48745B - WASHER, LATERAL CONTROL ROD CUSHION
90560-12447

TA1#

 1
90948-03003

TA1#

 1
48745B - WASHER, LATERAL CONTROL ROD CUSHION
90560-12447

TA1#

 1
90948-03003

TA1#

 1
48745C - WASHER, LATERAL CONTROL ROD CUSHION
90948-03004

TA1#

 1
Common parts
90176-12001
91611-61016
94110-41000
94115-51200
94115-71400
94120-41000
94512-01200
94512-01400
94611-11400
95381-03020
