TA12L-KDF (1970)
Toyota Carina
Production
Dec 1970
-
Sep 1975
Engine
2T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7012-7509)

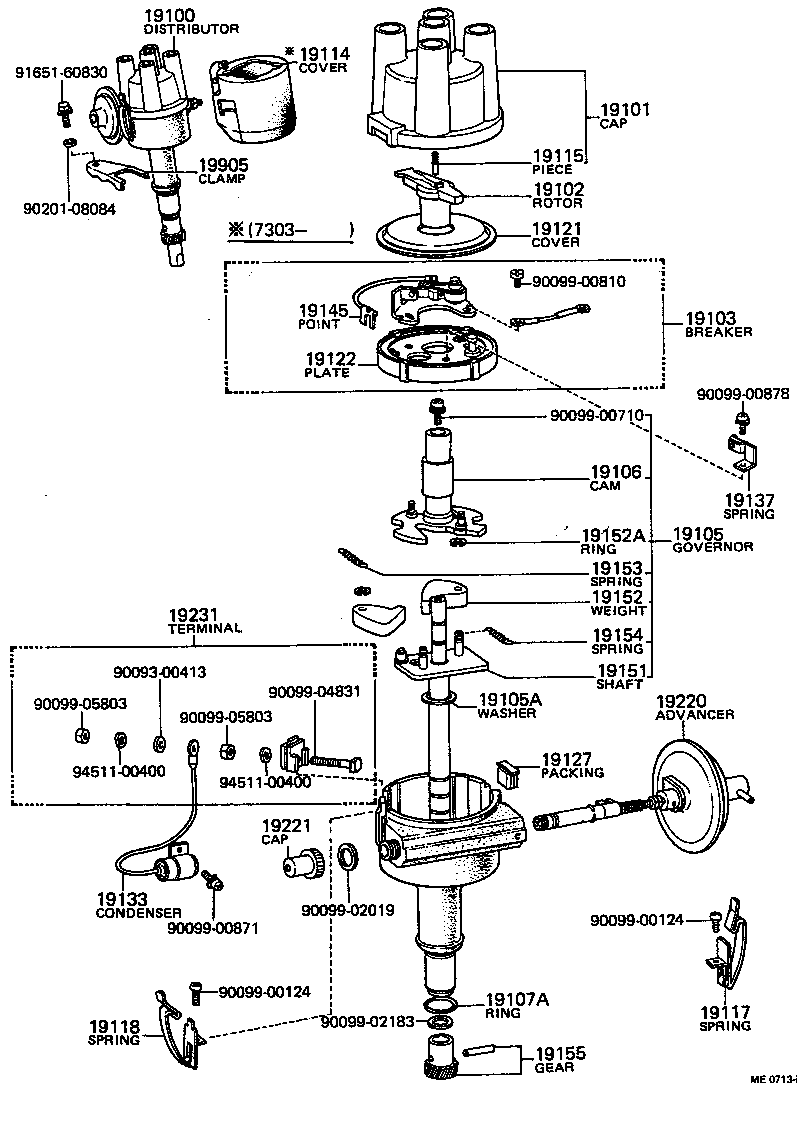

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-25011 |
T,2T..TA1# |
1 | ||
| 19100-25012 |
2T..TA12 |
1 | ||
| 19100-25012 |
T,2T..TA1# |
1 | ||
| 19100-25010 |
T,2T..TA1# |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-33011 |
T,2T..TA1# |
1 | ||
| 19101-33013 |
T,2T#..TA1# |
1 | ||
| 19101-33012 |
T,2T#..TA1# |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-33011 |
T,2T..TA1# |
1 | ||
| 19103 - BREAKER SUB-ASSY, DISTRIBUTOR | ||||
| 19103-33011 |
T,2T#..TA1# |
1 | ||
| 19103-33012 |
T,2T#..TA1# |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-25012 |
2T..TA12 |
1 | ||
| 19105-25010 |
T,2T..TA1# |
1 | ||
| 19105-25011 |
T,2T..TA1# |
1 | ||
| 19105-25012 |
T,2T..TA1# |
1 | ||
| 19105A - WASHER(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01386 |
T,2T#..TA1# T=2.7,T=2.7 |
1 | ||
| 90099-01385 |
T,2T#..TA1# T=2.5,T=2.5 |
1 | ||
| 90099-01387 |
T,2T#..TA1# T=2.9,T=2.9 |
1 | ||
| 19106 - CAM SUB-ASSY, DISTRIBUTOR | ||||
| 19106-88220 |
2T..TA12 |
1 | ||
| 19106-88220 |
T,2T..TA1# |
1 | ||
| 19106-25010 |
T,2T#..TA1# |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14020 |
T,2T#..TA1# |
1 | ||
| 19114 - COVER, WATER PROOF(FOR DISTRIBUTOR) | ||||
| 19114-25010 |
T,2T#..TA1# |
1 | ||
| 19117 - SPRING, DISTRIBUTOR CAP, A | ||||
| 19117-33011 |
T,2T#..TA1# |
1 | ||
| 19118 - SPRING, DISTRIBUTOR CAP, B | ||||
| 19118-33011 |
T,2T#..TA1# |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-33011 |
T,2T#..TA1# |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-33011 |
T,2T#..TA1# |
1 | ||
| 19122-33012 |
T,2T#..TA1# |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-25010 |
2T#..TA12 |
2 | ||
| 19127-25010 |
T,2T#..TA1# |
2 | ||
| 19133 - CONDENSER, DISTRIBUTOR | ||||
| 90099-52050 |
T,2T#..TA1# |
1 | ||
| 19137 - SPRING SUB-ASSY, DAMPER | ||||
| 19137-33011 |
T,2T#..TA1# |
1 | ||
| 19145 - POINT, DISTRIBUTOR | ||||
| 19145-26060 |
T,2T#..TA1# |
1 | ||
| 19151 - SHAFT, GOVERNOR | ||||
| 19151-25010 |
T,2T..TA1# |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-33011 |
T,2T#..TA1# |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07011 |
T,2T#..TA1# |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-25012 |
T,2T..TA1# |
1 | ||
| 19153-25012 |
2T..TA12 |
1 | ||
| 19153-25010 |
T,2T..TA1# |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-25010 |
T,2T..TA1# |
1 | ||
| 19153-25012 |
T,2T..TA1# |
1 | ||
| 19153-25012 |
2T..TA12 |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-25010 |
T,2T..TA1# |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-25010 |
T,2T..TA1# |
1 | ||
| 19221 - CAP, ADJUSTER, DISTRIBUTOR | ||||
| 19221-30030 |
T,2T#..TA1# |
1 | ||
| 19231 - TERMINAL, DISTRIBUTOR | ||||
| 19231-33011 |
T,2T#..TA1# |
1 | ||
| 19905 - CLAMP SUB-ASSY, DISTRIBUTOR | ||||
| 19955-25010 |
T,2T#..TA1# |
1 | ||
| Common parts | ||||
| 90093-00413 | ||||
| 90099-00124 | ||||
| 90099-00710 | ||||
| 90099-00810 | ||||
| 90099-00871 | ||||
| 90099-00878 | ||||
| 90099-02019 | ||||
| 90099-02183 | ||||
| 90099-04831 | ||||
| 90099-05803 | ||||
| 90201-08084 | ||||
| 91651-60830 | ||||
| 94511-00400 | ||||
