TA12L-KDF (1970)
Toyota Carina

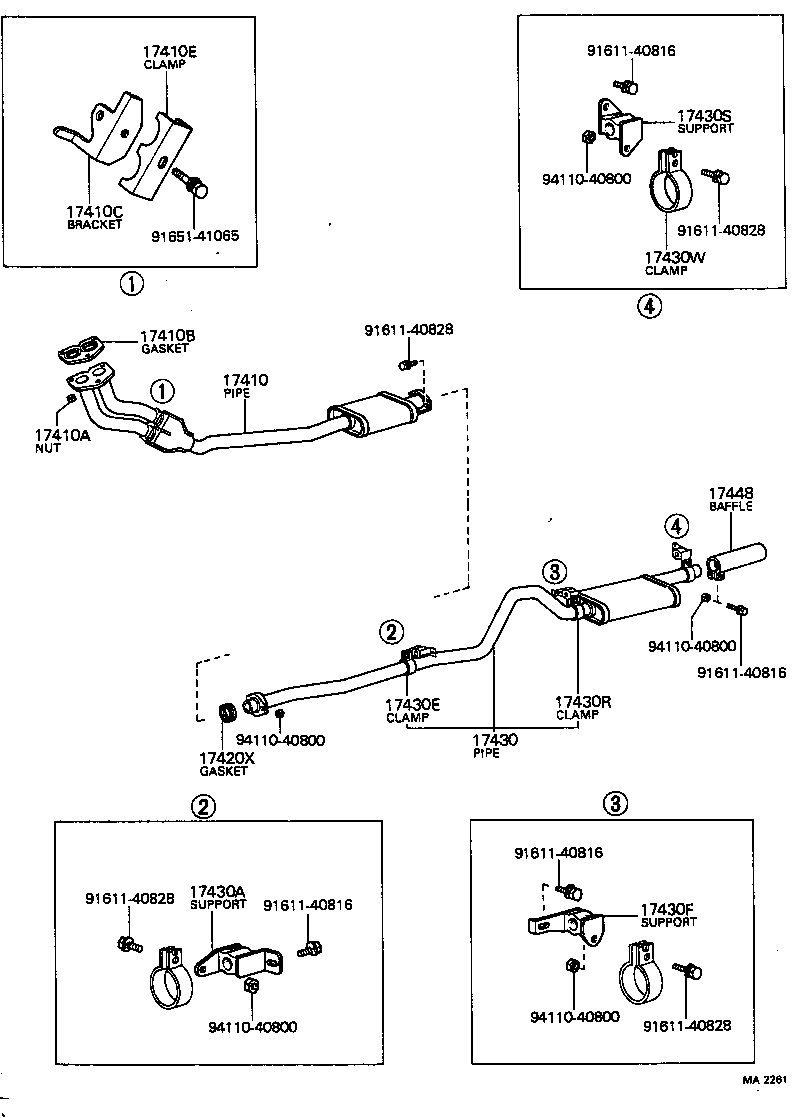

(7012-7208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-25022 |
T,2T..TA1# |
1 | ||
| 17410-25021 |
T,2T..TA1# |
1 | ||
| 17410-25020 |
T,2T..TA1# |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 94181-11000 |
T,2T..TA1# |
3 | ||
| 90179-10118 |
T,2T#..TA1# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-41010 |
T,2T#..TA1# |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-25010 |
T,2T..TA1# |
1 | ||
| 17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17578-25010 |
T,2T..TA1# |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06001 |
T,2T..TA1# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-25020 |
T,2T..TA1# |
1 | ||
| 17430-25071 |
T,2T..TA1# |
1 | ||
| 17430-25080 |
2T..TA12..LHD ALUMINIZED |
1 | ||
| 17430-25070 |
T,2T..TA1# |
1 | ||
| 17430-34021 |
T,2T..TA1# |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17561-25011 |
T,2T#..TA1# |
1 | ||
| 17561-25010 |
T,2T..TA1# |
1 | ||
| 17430E - CLAMP NO.2, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 90461-23556 |
T,2T..TA1# |
1 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17507-25010 |
T,2T#..TA1# |
1 | ||
| 17562-25010 |
T,2T..TA1# |
1 | ||
| 17430R - CLAMP NO.2, EXHAUST TAIL PIPE (FOR CENTER) | ||||
| 90461-23556 |
T,2T..TA1# |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17508-25011 |
T,2T#..TA1# |
1 | ||
| 17563-25010 |
T,2T..TA1# |
1 | ||
| 17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90461-23556 |
T,2T..TA1# |
1 | ||
| 17448 - BAFFLE, TAIL PIPE | ||||
| 17448-25010 |
2T..TA12..DLX |
1 | ||
| 17448-25010 |
T,2T..TA1#..DLX |
1 | ||
| Common parts | ||||
| 91611-40816 | ||||
| 91611-40828 | ||||
| 91651-41065 | ||||
| 94110-40800 | ||||

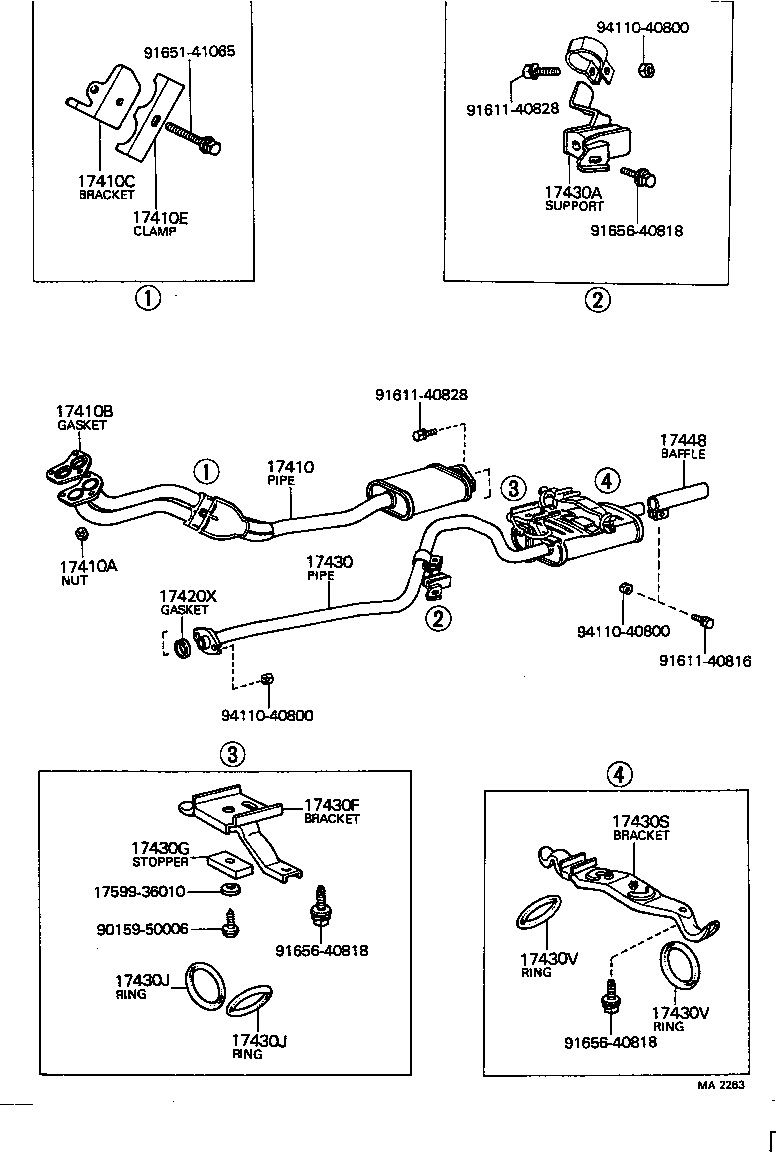

(7208-7312)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-25022 |
T,2T..TA1# |
1 | ||
| 17410-25021 |
T,2T..TA1# |
1 | ||
| 17410-25020 |
T,2T..TA1# |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 94181-11000 |
T,2T..TA1# |
3 | ||
| 90179-10118 |
T,2T#..TA1# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-41010 |
T,2T#..TA1# |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-25010 |
T,2T..TA1# |
1 | ||
| 17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17578-25010 |
T,2T..TA1# |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06001 |
T,2T..TA1# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-25020 |
T,2T..TA1# |
1 | ||
| 17430-25071 |
T,2T..TA1# |
1 | ||
| 17430-25080 |
2T..TA12..LHD ALUMINIZED |
1 | ||
| 17430-25070 |
T,2T..TA1# |
1 | ||
| 17430-34021 |
T,2T..TA1# |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17561-25011 |
T,2T#..TA1# |
1 | ||
| 17561-25010 |
T,2T..TA1# |
1 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17507-25010 |
T,2T#..TA1# |
1 | ||
| 17562-25010 |
T,2T..TA1# |
1 | ||
| 17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17591-36010 |
T,2T#..TA1# |
1 | ||
| 17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 90301-34172 |
T,2T#..TA1# |
2 | ||
| 17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 90301-34172 |
T,2T#..TA1# |
2 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17508-25011 |
T,2T#..TA1# |
1 | ||
| 17563-25010 |
T,2T..TA1# |
1 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-34172 |
T,2T#..TA1# |
2 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-34172 |
T,2T#..TA1# |
2 | ||
| 17448 - BAFFLE, TAIL PIPE | ||||
| 17448-25010 |
2T..TA12..DLX |
1 | ||
| 17448-25010 |
T,2T..TA1#..DLX |
1 | ||
| Common parts | ||||
| 17599-36010 | ||||
| 90169-50006 | ||||
| 91611-40816 | ||||
| 91611-40828 | ||||
| 91651-41065 | ||||
| 91656-40818 | ||||
| 94110-40800 | ||||

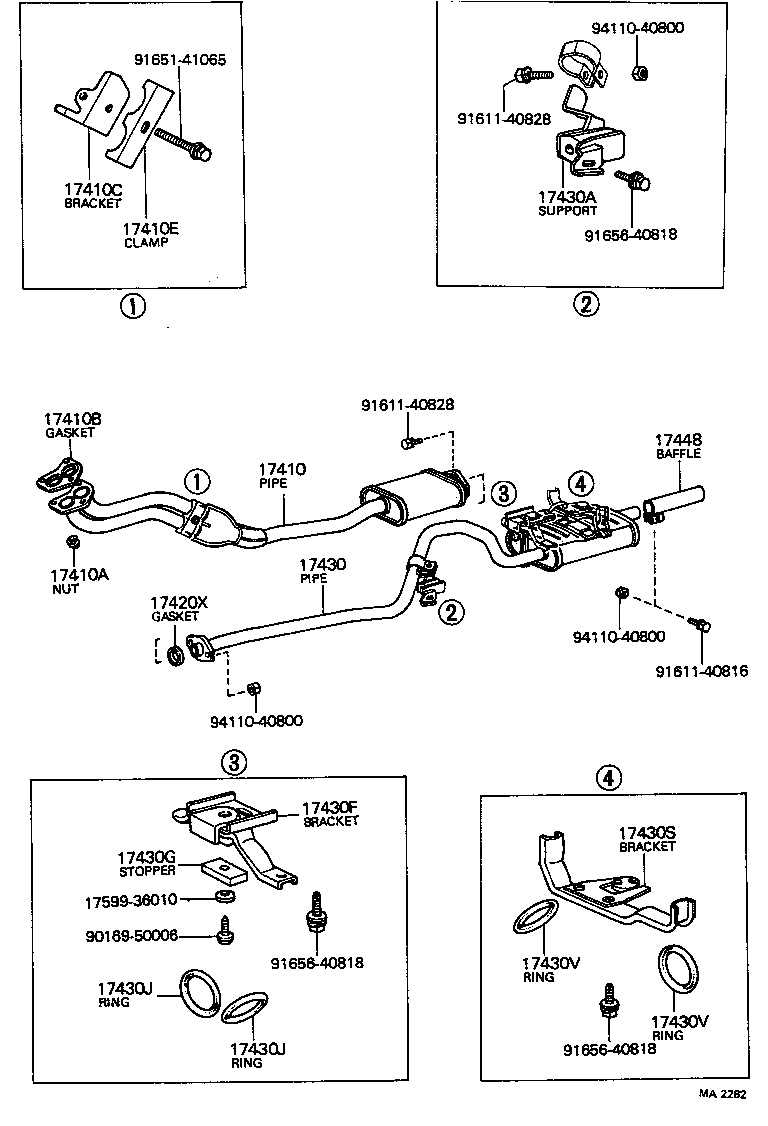

(7401-7509)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-25021 |
T,2T..TA1# |
1 | ||
| 17410-25022 |
T,2T..TA1# |
1 | ||
| 17410-25020 |
T,2T..TA1# |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 94181-11000 |
T,2T..TA1# |
3 | ||
| 90179-10118 |
T,2T#..TA1# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-41010 |
T,2T#..TA1# |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-25010 |
T,2T..TA1# |
1 | ||
| 17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17578-25010 |
T,2T..TA1# |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06001 |
T,2T..TA1# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-25020 |
T,2T..TA1# |
1 | ||
| 17430-25071 |
T,2T..TA1# |
1 | ||
| 17430-25080 |
2T..TA12..LHD ALUMINIZED |
1 | ||
| 17430-25070 |
T,2T..TA1# |
1 | ||
| 17430-34021 |
T,2T..TA1# |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17561-25011 |
T,2T#..TA1# |
1 | ||
| 17561-25010 |
T,2T..TA1# |
1 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17507-25010 |
T,2T#..TA1# |
1 | ||
| 17562-25010 |
T,2T..TA1# |
1 | ||
| 17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17591-36010 |
T,2T#..TA1# |
1 | ||
| 17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 90301-34172 |
T,2T#..TA1# |
2 | ||
| 17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 90301-34172 |
T,2T#..TA1# |
2 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17508-25011 |
T,2T#..TA1# |
1 | ||
| 17563-25010 |
T,2T..TA1# |
1 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-34172 |
T,2T#..TA1# |
2 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-34172 |
T,2T#..TA1# |
2 | ||
| 17448 - BAFFLE, TAIL PIPE | ||||
| 17448-25010 |
2T..TA12..DLX |
1 | ||
| 17448-25010 |
T,2T..TA1#..DLX |
1 | ||
| Common parts | ||||
| 17599-36010 | ||||
| 90159-50006 | ||||
| 91611-40816 | ||||
| 91611-40828 | ||||
| 91651-41065 | ||||
| 91656-40818 | ||||
| 94110-40800 | ||||
