TA12L-K (1970)
Toyota Carina
Production
Dec 1970
-
Sep 1975
Engine
2T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

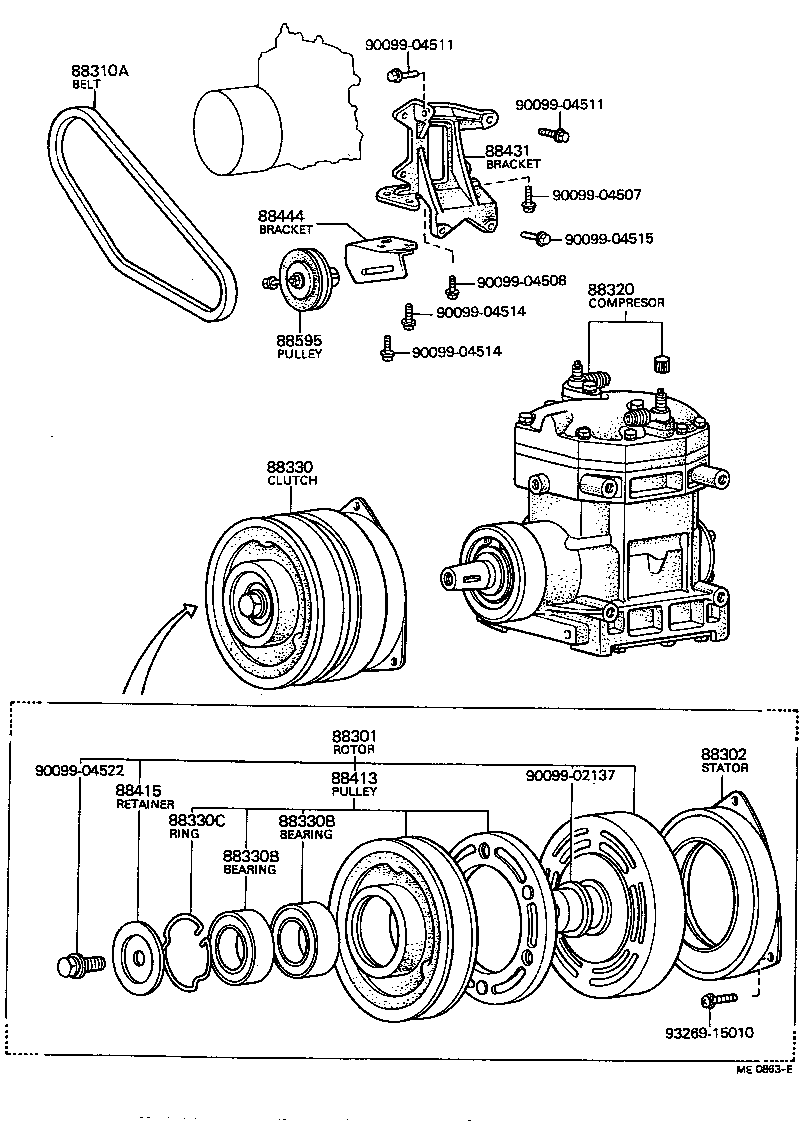

(7012-7401)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88401-12032 |
TA1# |
1 | ||
| 88401-20040 |
TA1# |
1 | ||
| 88401-14020 |
TA1# |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-12021 |
TA1# |
1 | ||
| 88411-20010 |
TA1# |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99522-10951 |
TA1# |
1 | ||
| 99522-10938 |
TA1# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-14010 |
TA1# |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-14011 |
TA1# |
1 | ||
| 88410-12022 |
TA1# |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10083 |
TA1# |
2 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10083 |
TA1# |
2 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07100 |
TA1# |
1 | ||
| 88413 - PULLEY SUB-ASSY, MAGNET CLUTCH | ||||
| 88402-14010 |
TA1# |
1 | ||
| 88402-14011 |
TA1# |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-14010 |
TA1# |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-14010 |
TA1# |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-14010 |
TA1# |
1 | ||
| 88440-22020 |
TA1# |
1 | ||
| Common parts | ||||
| 90099-02137 | ||||
| 90099-04507 | ||||
| 90099-04508 | ||||
| 90099-04511 | ||||
| 90099-04514 | ||||
| 90099-04515 | ||||
| 90099-04522 | ||||
| 93269-15010 | ||||

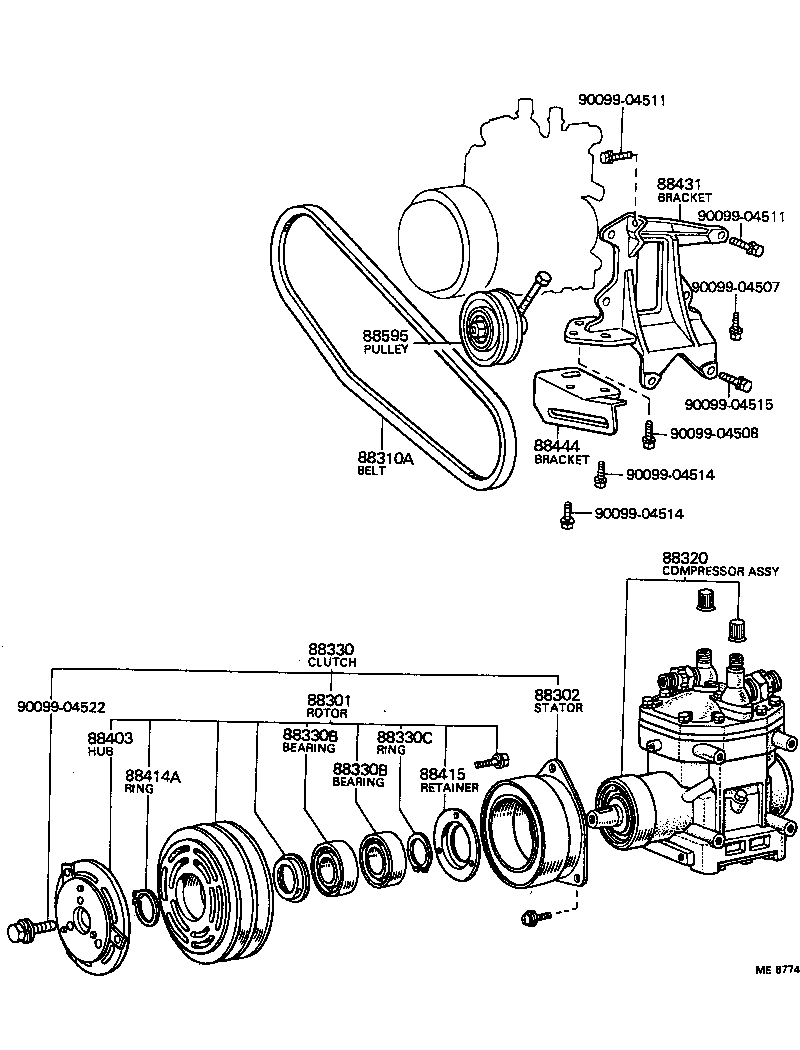

(7401-7509)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88401-12032 |
TA1# |
1 | ||
| 88401-20040 |
TA1# |
1 | ||
| 88401-14020 |
TA1# |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-12021 |
TA1# |
1 | ||
| 88411-20010 |
TA1# |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99522-10951 |
TA1# |
1 | ||
| 99522-10938 |
TA1# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-14010 |
TA1# |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-14011 |
TA1# |
1 | ||
| 88410-12022 |
TA1# |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10083 |
TA1# |
2 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10083 |
TA1# |
2 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07100 |
TA1# |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-20030 |
TA1# |
1 | ||
| 88414A - RING, SHIELD SNAP | ||||
| 90099-90009 |
TA1# |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-14010 |
TA1# |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-14010 |
TA1# |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-14010 |
TA1# |
1 | ||
| 88440-22020 |
TA1# |
1 | ||
| Common parts | ||||
| 90099-04507 | ||||
| 90099-04508 | ||||
| 90099-04511 | ||||
| 90099-04514 | ||||
| 90099-04515 | ||||
| 90099-04522 | ||||
