TA12L-HDF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7509)

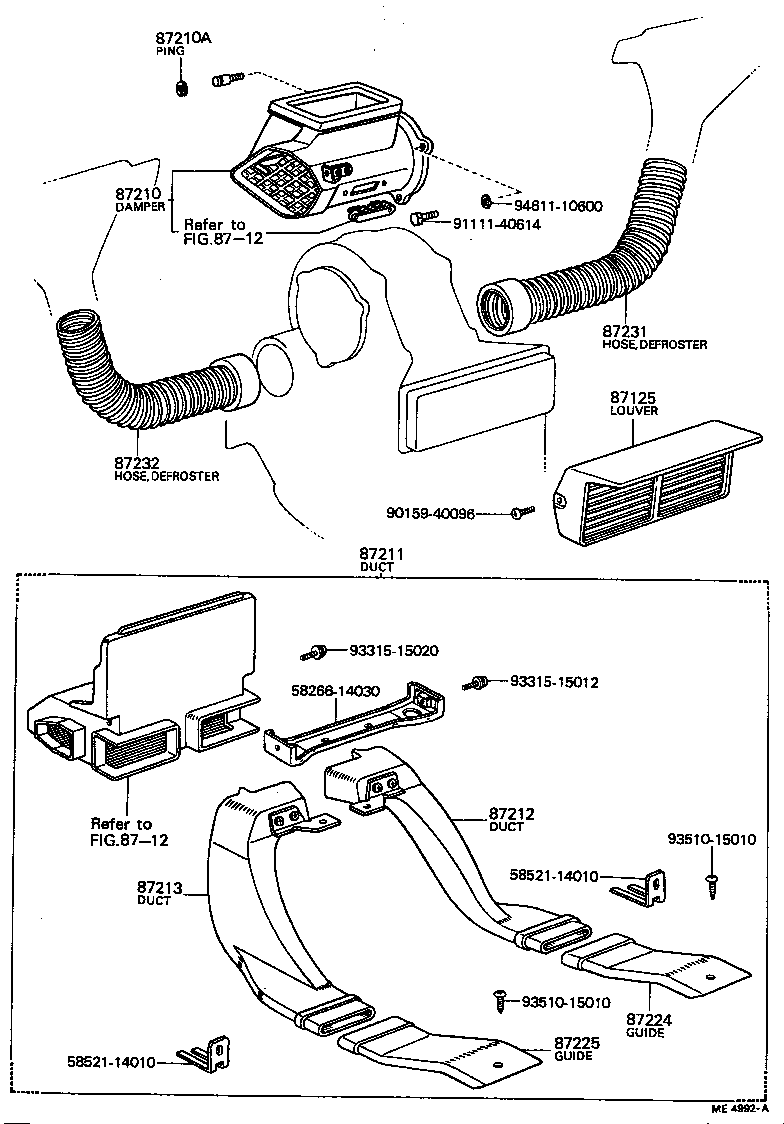

Click highlighted areas on diagram

diagram 5826614030 5852114010 5852114010 8712 8712 87125 87210 87210A 87211 87212 87213 87224 87225 87231 87232 9015940096 9111140614 9331515012 9331515020 9351015010 9351015010 9461110600
Part # Description Qty Price
87125 - LOUVER, VENTILATION
58902-14010

TA1#

 2
87125-14011

TA1#

 1
87125-14020

TA1#

FOR BOOST VENTILATOR

 1
87125-14010

TA1#

 1
87210 - DAMPER ASSY, AIR
87210-20030

TA1#..LHD

 1
87210-14021

TA1#..LHD

 1
87210-14020

TA1#..LHD

 1
87210A - RING, SNAP(FOR HEATER AIR DAMPER)
90099-07016

TA1#

 1
87211 - DUCT, AIR, NO.1
87201-14010

TA1#

 1
87212 - DUCT, AIR, REAR NO.1
87212-14010

TA1#

 1
87213 - DUCT, AIR, REAR NO.2
87212-14030

TA1#

 1
87224 - GUIDE, AIR DUCT, RH
87212-14020

TA1#

 1
87225 - GUIDE, AIR DUCT, LH
87212-14040

TA1#

 1
87231 - HOSE, HEATER DEFROSTER, RH
87231-14020

TA1#..LHD

 2
87231-14020

TA1#

FOR BOOST VENTILATOR

 1
87231-20070

TA1#..LHD

 1
87232 - HOSE, HEATER DEFROSTER, LH
87231-14020

TA1#

FOR BOOST VENTILATOR

 1
87231-14020

TA1#..LHD

 1
87231-14040

TA1#..LHD

 1
87231-14020

TA1#..LHD

 1
87231-20070

TA1#..LHD

 1
Common parts
58266-14030
58521-14010
90159-40096
91111-40614
93315-15012
93315-15020
93510-15010
94611-10600
Linked diagrams
8712

(7012-7509)

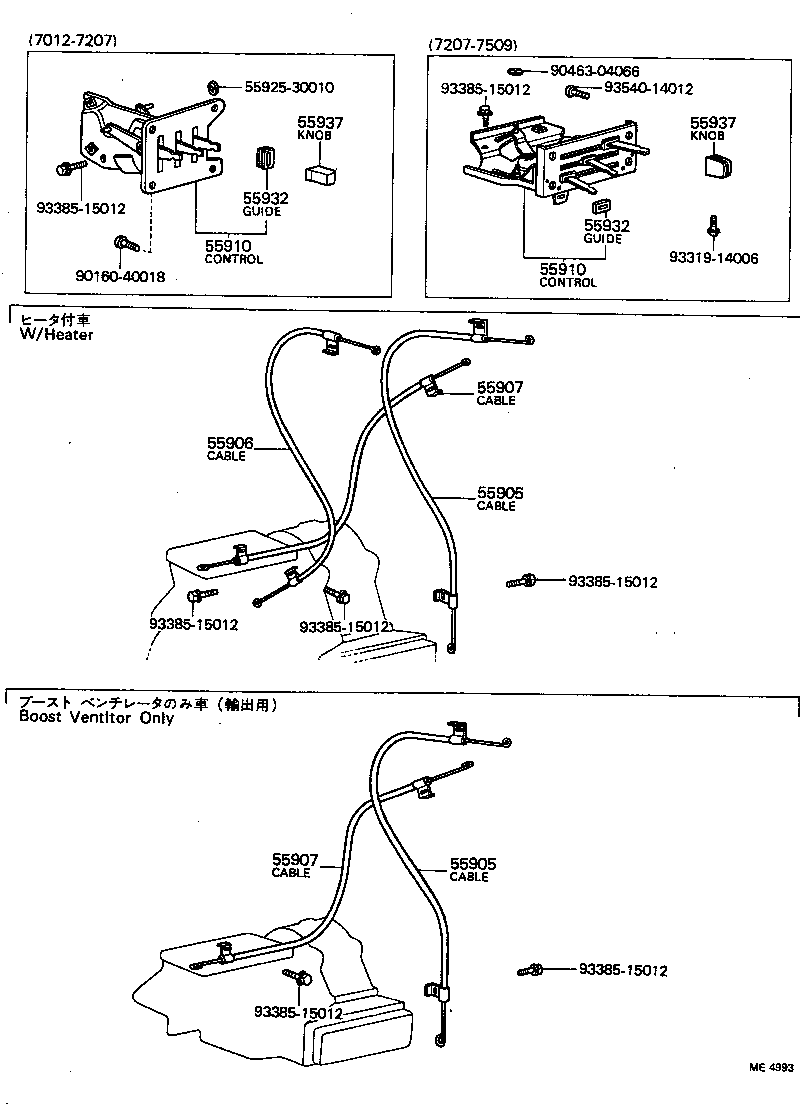

Click highlighted areas on diagram

diagram 55905 55905 55906 55907 55907 55910 55910 5592530010 55932 55932 55937 55937 9016040018 9046304066 9331914006 9338515012 9338515012 9338515012 9338515012 9338515012 9338515012 9338515012 9354014012
Part # Description Qty Price
55905 - CABLE SUB-ASSY, DEFROST CONTROL
55905-14100

TA1#..LHD

FOR BOOST VENTILATOR

 1
55905-14060

TA1#..LHD

FOR BOOST VENTILATOR

 1
55905-20060

TA1#..LHD

FOR HEATER

 1
55905-14080

TA1#..LHD

FOR HEATER

 1
55905 - CABLE SUB-ASSY, DEFROST CONTROL
55905-14100

TA1#..LHD

FOR BOOST VENTILATOR

 1
55905-14060

TA1#..LHD

FOR BOOST VENTILATOR

 1
55905-20060

TA1#..LHD

FOR HEATER

 1
55905-14080

TA1#..LHD

FOR HEATER

 1
55906 - CABLE SUB-ASSY, HEATER CONTROL
55906-14040

TA1#..LHD

 1
55906-20060

TA1#..LHD

 1
55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY
55907-20060

TA1#..LHD

 1
55907-14040

TA1#..LHD

 1
55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY
55907-20060

TA1#..LHD

 1
55907-14040

TA1#..LHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-20060

TA1#..LHD

FOR BOOST VENTILATOR

 1
55910-20040

TA1#..LHD

FOR HEATER

 1
55910-14060

TA1#..LHD

FOR HEATER

 1
55910-14080

TA1#..LHD

FOR BOOST VENTILATOR

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-20060

TA1#..LHD

FOR BOOST VENTILATOR

 1
55910-20040

TA1#..LHD

FOR HEATER

 1
55910-14060

TA1#..LHD

FOR HEATER

 1
55910-14080

TA1#..LHD

FOR BOOST VENTILATOR

 1
55932 - GUIDE, LEVER, NO.1
55932-20040

TA1#

 3
55932 - GUIDE, LEVER, NO.1
55932-20040

TA1#

 3
55937 - KNOB, HEATER CONTROL LEVER
55937-14901

TA1#

 3
55937-20901

TA1#

 3
55937 - KNOB, HEATER CONTROL LEVER
55937-14901

TA1#

 3
55937-20901

TA1#

 3
Common parts
55925-30010
90160-40018
90463-04066
93319-14006
93385-15012
93540-14012
