TA12L-HDF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7103-7509)

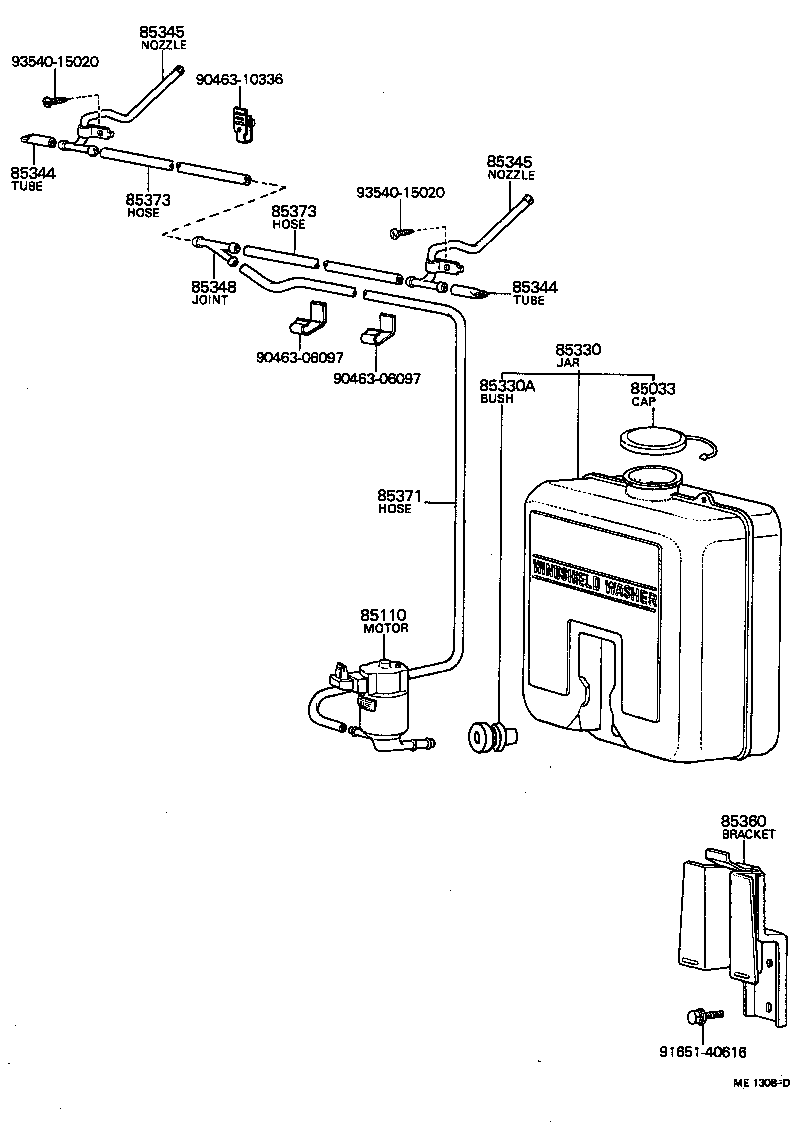

Click highlighted areas on diagram

diagram 85033 85110 85330 85330A 85344 85344 85345 85345 85348 85360 85371 85373 85373 9046306097 9046306097 9046310336 9165140616 9354015020 9354015020
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85033-20070

TA1#

 1
85332-30050

TA1#

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-20052

TA1#..LHD

 1
85110-20051

TA1#..LHD

 1
85110-20050

TA1#..LHD

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-12020

TA1#

 1
85330-22010

TA1#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32057

TA1#

 1
85344 - TUBE, WINDSHIELD WASHER HOSE, STOP
85344-30010

TA1#

 2
85344 - TUBE, WINDSHIELD WASHER HOSE, STOP
85344-30010

TA1#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85341-20070

TA1#

 2
85341-20071

TA1#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85341-20070

TA1#

 2
85341-20071

TA1#

 2
85360 - BRACKET ASSY, WINDSHIELD WASHER
85361-14010

TA1#..LHD

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06286

TA1#

*H,L=400

 1
90446-06052

TA1#..LHD

*H,L=660

 1
90099-33259

TA1#

L=620

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06298

TA1#

L=260

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06298

TA1#

L=260

 2
Common parts
90463-06097
90463-10336
91651-40616
93540-15020

(7012-7103)

Click highlighted areas on diagram

diagram 8271110010 85033 85310 85330 85330A 85344 85345 85345 85360 85371 85374 9165140616 9534015014 9534015014
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85033-20070

TA1#

 1
85332-30050

TA1#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-12020

TA1#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-12020

TA1#

 1
85330-22010

TA1#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32057

TA1#

 1
85344 - TUBE, WINDSHIELD WASHER HOSE, STOP
85344-30010

TA1#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85341-20070

TA1#

 2
85341-20071

TA1#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85341-20070

TA1#

 2
85341-20071

TA1#

 2
85360 - BRACKET ASSY, WINDSHIELD WASHER
85361-14010

TA1#..LHD

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06286

TA1#

*H,L=400

 1
90446-06052

TA1#..LHD

*H,L=660

 1
90099-33259

TA1#

L=620

 1
85374 - HOSE, WINDSHIELD WASHER (FROM NOZZLE TO NOZZLE)
90099-33215

TA1#

*H,L=540

 1
Common parts
82711-10010
91651-40616
95340-15014
