TA12L-HDF (1970)
Toyota Carina

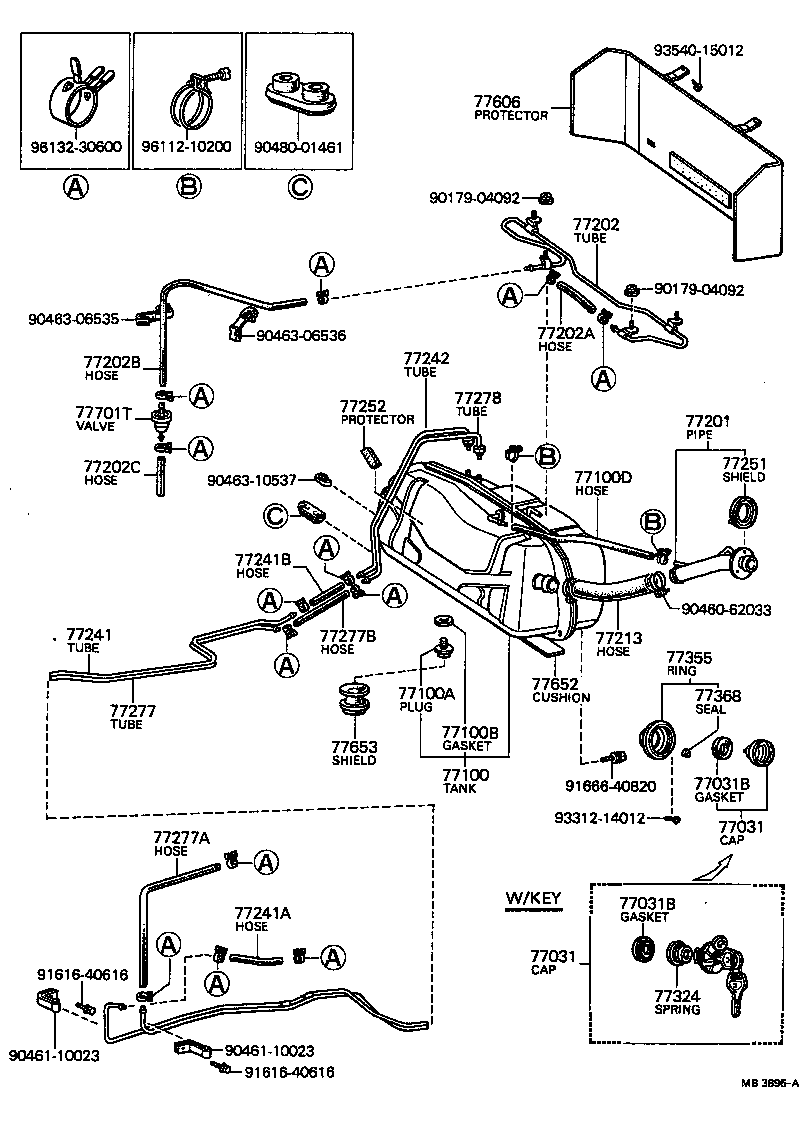

(7401-7509)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77031-12061 |
TA1# W/KEY |
1 | ||
| 77031-12062 |
TA1# W/KEY |
1 | ||
| 77031-14010 |
TA1# W/KEY |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77031-12061 |
TA1# W/KEY |
1 | ||
| 77031-12062 |
TA1# W/KEY |
1 | ||
| 77031-14010 |
TA1# W/KEY |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12030 |
TA1# FOR W/KEY |
1 | ||
| 77316-40011 |
TA1# FOR W/KEY |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12030 |
TA1# FOR W/KEY |
1 | ||
| 77316-40011 |
TA1# FOR W/KEY |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-14090 |
TA1# |
1 | ||
| 77001-14091 |
TA1# |
1 | ||
| 77001-14092 |
TA1# |
1 | ||
| 77001-14010 |
TA1# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
TA1# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12038 |
TA1# |
1 | ||
| 90430-24047 |
TA1# |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-18891 |
TA1# L=410 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-14902 |
TA1# |
1 | ||
| 77202 - TUBE SUB-ASSY, BREATHER | ||||
| 77235-14010 |
TA1# |
1 | ||
| 77235-14011 |
TA1# |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 95331-06017 |
TA1# *H,L=170 |
1 | ||
| 95331-08017 |
TA1# *H,L=170 |
1 | ||
| 77202B - HOSE, FUEL, NO.2 (FOR BREATHER TUBE) | ||||
| 95331-06060 |
TA1# *H,L=600 |
1 | ||
| 95331-08060 |
TA1# *H,L=600 |
1 | ||
| 77202C - HOSE, FUEL, NO.3 (FOR BREATHER TUBE) | ||||
| 95331-08008 |
TA1# *H,L=80 |
1 | ||
| 95331-06008 |
TA1# *H,L=80 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-14030 |
TA1# |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-14010 |
TA1# |
1 | ||
| 77251-14012 |
TA1# |
1 | ||
| 77251-14011 |
TA1# |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95331-06008 |
TA1# *H,L=80 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95331-08012 |
TA1# *H,L=120 |
1 | ||
| 95331-06014 |
TA1# *H,L=140 |
1 | ||
| 95332-06014 |
TA1# *H,L=140 |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 77209-14010 |
TA1# |
1 | ||
| 77209-14011 |
TA1# |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77251-10010 |
TA1# |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77257-14011 |
TA1# |
1 | ||
| 77257-14010 |
TA1# |
1 | ||
| 77257-14012 |
TA1# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95331-08044 |
TA1#..DLX,STD *H,L=440 |
1 | ||
| 95323-07044 |
TA1# L=440 |
1 | ||
| 95331-06040 |
TA1# *H,L=400 |
1 | ||
| 95331-08048 |
TA1#..DLX,STD *H,L=480 |
1 | ||
| 90923-01109 |
TA1# L=430 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95331-08018 |
TA1# *H,L=180 |
1 | ||
| 95331-08022 |
TA1# *H,L=220 |
1 | ||
| 95331-06022 |
TA1# *H,L=220 |
1 | ||
| 95332-06019 |
TA1# *H,L=190 |
1 | ||
| 77278 - TUBE, FUEL RETURN, NO.2 | ||||
| 77024-14010 |
TA1# |
1 | ||
| 77024-14030 |
TA1# |
1 | ||
| 77324 - SPRING, FUEL TANK CAP | ||||
| 77324-12010 |
TA1# |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-14020 |
TA1# |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-14010 |
TA1# |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
TA1# |
1 | ||
| 90917-10012 |
TA1# |
1 | ||
| Common parts | ||||
| 90179-04092 | ||||
| 90460-62033 | ||||
| 90461-10023 | ||||
| 90463-06535 | ||||
| 90463-06536 | ||||
| 90463-10537 | ||||
| 90480-01461 | ||||
| 91616-40616 | ||||
| 91666-40820 | ||||
| 93312-14012 | ||||
| 93540-15012 | ||||
| 96112-10200 | ||||
| 96132-30600 | ||||

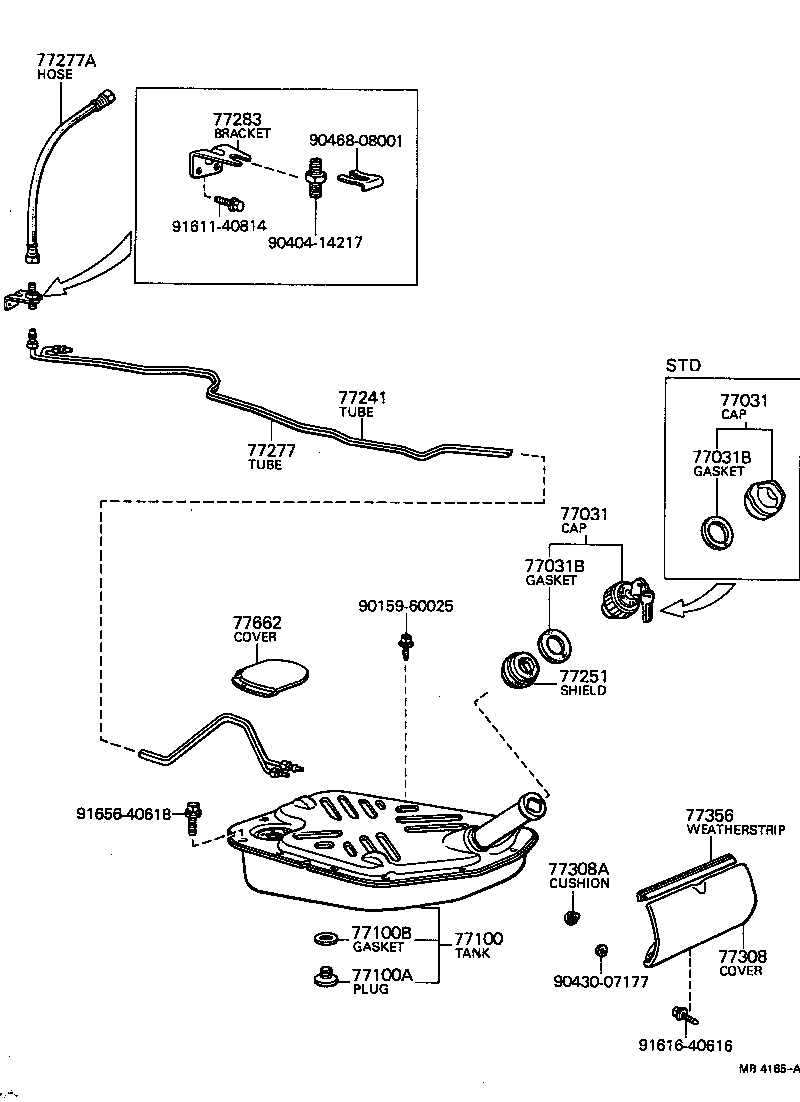

(7012-7207)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77031-12061 |
TA1# W/KEY |
1 | ||
| 77031-12062 |
TA1# W/KEY |
1 | ||
| 77031-14010 |
TA1# W/KEY |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77031-12061 |
TA1# W/KEY |
1 | ||
| 77031-12062 |
TA1# W/KEY |
1 | ||
| 77031-14010 |
TA1# W/KEY |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12030 |
TA1# FOR W/KEY |
1 | ||
| 77316-40011 |
TA1# FOR W/KEY |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12030 |
TA1# FOR W/KEY |
1 | ||
| 77316-40011 |
TA1# FOR W/KEY |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-14090 |
TA1# |
1 | ||
| 77001-14091 |
TA1# |
1 | ||
| 77001-14092 |
TA1# |
1 | ||
| 77001-14010 |
TA1# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
TA1# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12038 |
TA1# |
1 | ||
| 90430-24047 |
TA1# |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-14010 |
TA1# |
1 | ||
| 77251-14012 |
TA1# |
1 | ||
| 77251-14011 |
TA1# |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77251-10010 |
TA1# |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77257-14010 |
TA1# |
1 | ||
| 77257-14011 |
TA1# |
1 | ||
| 77257-14012 |
TA1# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95331-08044 |
TA1#..DLX,STD *H,L=440 |
1 | ||
| 95323-07044 |
TA1# L=440 |
1 | ||
| 95331-06040 |
TA1# *H,L=400 |
1 | ||
| 95331-08048 |
TA1#..DLX,STD *H,L=480 |
1 | ||
| 90923-01109 |
TA1# L=430 |
1 | ||
| 77283 - BRACKET, FUEL TUBE | ||||
| 77283-14010 |
TA1# |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77308-14020 |
TA12..DLX |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-06076 |
TA1# |
2 | ||
| 77356 - WEATHERSTRIP, FUEL TANK FILLER PIPE LID, UPPER | ||||
| 77371-14010 |
TA1# |
1 | ||
| 77662 - COVER, FUEL TANK GAGE | ||||
| 77662-14010 |
TA1# |
1 | ||
| Common parts | ||||
| 90159-60025 | ||||
| 90404-14217 | ||||
| 90430-07177 | ||||
| 90468-08001 | ||||
| 91611-40814 | ||||
| 91616-40616 | ||||
| 91656-40618 | ||||

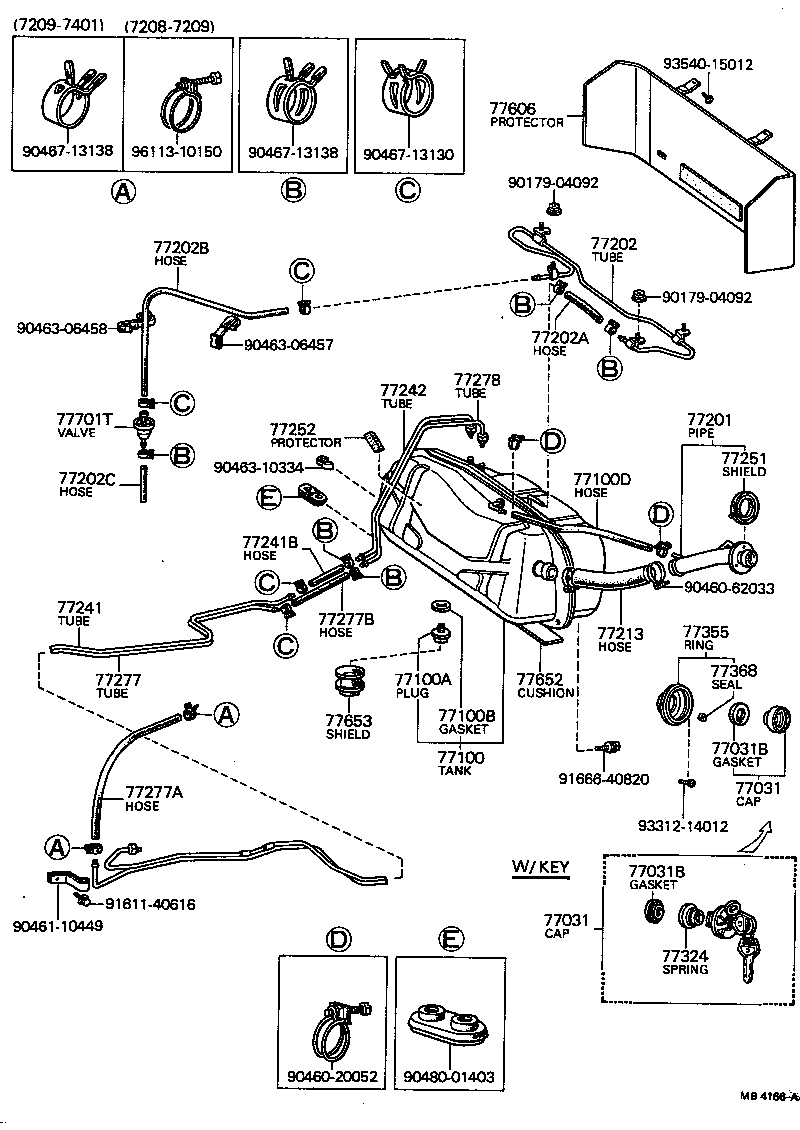

(7208-7401)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77031-12061 |
TA1# W/KEY |
1 | ||
| 77031-12062 |
TA1# W/KEY |
1 | ||
| 77031-14010 |
TA1# W/KEY |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77031-12061 |
TA1# W/KEY |
1 | ||
| 77031-12062 |
TA1# W/KEY |
1 | ||
| 77031-14010 |
TA1# W/KEY |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12030 |
TA1# FOR W/KEY |
1 | ||
| 77316-40011 |
TA1# FOR W/KEY |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12030 |
TA1# FOR W/KEY |
1 | ||
| 77316-40011 |
TA1# FOR W/KEY |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-14090 |
TA1# |
1 | ||
| 77001-14091 |
TA1# |
1 | ||
| 77001-14092 |
TA1# |
1 | ||
| 77001-14010 |
TA1# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
TA1# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12038 |
TA1# |
1 | ||
| 90430-24047 |
TA1# |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-18891 |
TA1# L=410 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-14902 |
TA1# |
1 | ||
| 77202 - TUBE SUB-ASSY, BREATHER | ||||
| 77235-14010 |
TA1# |
1 | ||
| 77235-14011 |
TA1# |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 95331-06017 |
TA1# *H,L=170 |
1 | ||
| 95331-08017 |
TA1# *H,L=170 |
1 | ||
| 77202B - HOSE, FUEL, NO.2 (FOR BREATHER TUBE) | ||||
| 95331-06060 |
TA1# *H,L=600 |
1 | ||
| 95331-08060 |
TA1# *H,L=600 |
1 | ||
| 77202C - HOSE, FUEL, NO.3 (FOR BREATHER TUBE) | ||||
| 95331-08008 |
TA1# *H,L=80 |
1 | ||
| 95331-06008 |
TA1# *H,L=80 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-14030 |
TA1# |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-14010 |
TA1# |
1 | ||
| 77251-14012 |
TA1# |
1 | ||
| 77251-14011 |
TA1# |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95331-08012 |
TA1# *H,L=120 |
1 | ||
| 95331-06014 |
TA1# *H,L=140 |
1 | ||
| 95332-06014 |
TA1# *H,L=140 |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 77209-14010 |
TA1# |
1 | ||
| 77209-14011 |
TA1# |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77251-10010 |
TA1# |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77257-14010 |
TA1# |
1 | ||
| 77257-14011 |
TA1# |
1 | ||
| 77257-14012 |
TA1# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95331-08044 |
TA1#..DLX,STD *H,L=440 |
1 | ||
| 95323-07044 |
TA1# L=440 |
1 | ||
| 95331-06040 |
TA1# *H,L=400 |
1 | ||
| 95331-08048 |
TA1#..DLX,STD *H,L=480 |
1 | ||
| 90923-01109 |
TA1# L=430 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95331-08018 |
TA1# *H,L=180 |
1 | ||
| 95331-08022 |
TA1# *H,L=220 |
1 | ||
| 95331-06022 |
TA1# *H,L=220 |
1 | ||
| 95332-06019 |
TA1# *H,L=190 |
1 | ||
| 77278 - TUBE, FUEL RETURN, NO.2 | ||||
| 77024-14010 |
TA1# |
1 | ||
| 77024-14030 |
TA1# |
1 | ||
| 77324 - SPRING, FUEL TANK CAP | ||||
| 77324-12010 |
TA1# |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-14020 |
TA1# |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-14010 |
TA1# |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
TA1# |
1 | ||
| 90917-10012 |
TA1# |
1 | ||
| Common parts | ||||
| 90179-04092 | ||||
| 90460-20052 | ||||
| 90460-62033 | ||||
| 90461-10449 | ||||
| 90463-06457 | ||||
| 90463-06458 | ||||
| 90463-10334 | ||||
| 90467-13130 | ||||
| 90467-13138 | ||||
| 90480-01403 | ||||
| 91611-40616 | ||||
| 91666-40820 | ||||
| 93312-14012 | ||||
| 93540-15012 | ||||
| 96113-10150 | ||||
