TA12L-HDF (1970)
Toyota Carina
Production
Dec 1970
-
Sep 1975
Engine
2T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7401-7509)

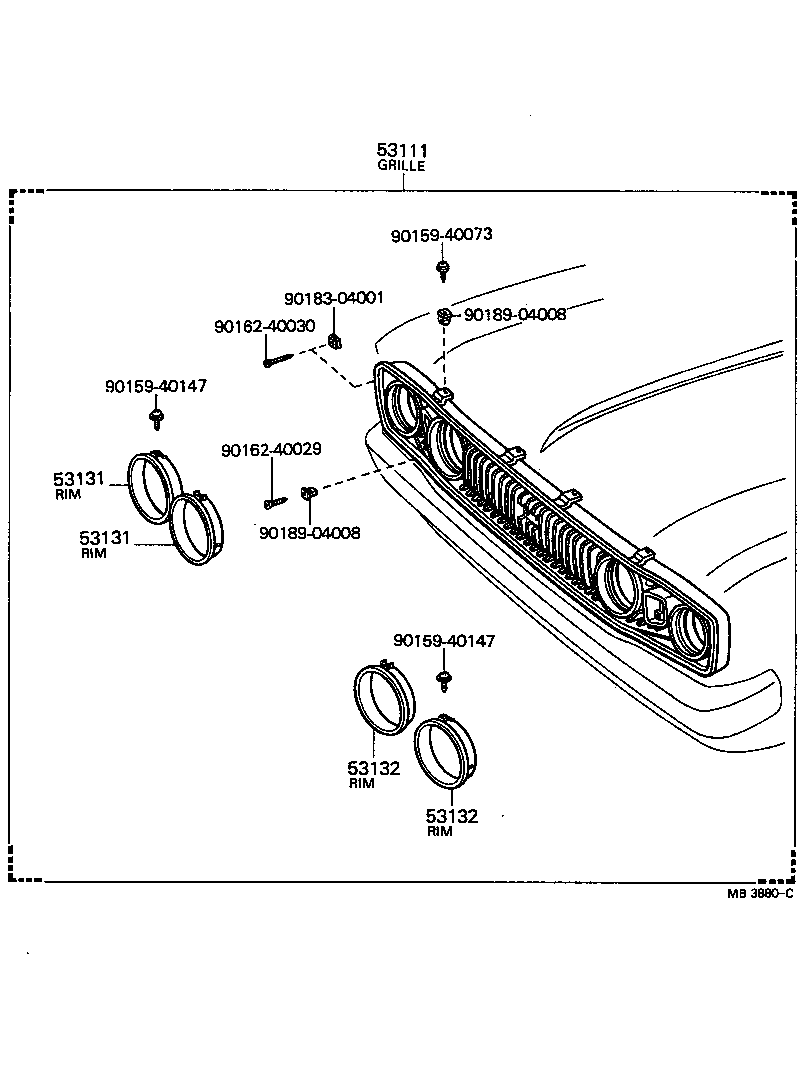

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-14911 |
TA1# |
1 | ||
| 53110-19105 |
TA1# |
1 | ||
| 53111-19015 |
TA1# |
1 | ||
| 53110-14901 |
TA1#..DLX |
1 | ||
| 53131 - RIM, HEADLAMP, RH | ||||
| 53131-19076 |
TA1# |
1 | ||
| 53131-19075 |
TA1# |
1 | ||
| 53031-14011 |
TA1# OUTER |
1 | ||
| 53032-14011 |
TA1# INNER |
1 | ||
| 53131 - RIM, HEADLAMP, RH | ||||
| 53131-19076 |
TA1# |
1 | ||
| 53131-19075 |
TA1# |
1 | ||
| 53031-14011 |
TA1# OUTER |
1 | ||
| 53032-14011 |
TA1# INNER |
1 | ||
| 53132 - RIM, HEADLAMP, LH | ||||
| 53032-14011 |
TA1# INNER |
1 | ||
| 53132-19075 |
TA1# |
1 | ||
| 53031-14011 |
TA1# OUTER |
1 | ||
| 53132-19076 |
TA1# |
1 | ||
| 53132 - RIM, HEADLAMP, LH | ||||
| 53032-14011 |
TA1# INNER |
1 | ||
| 53132-19075 |
TA1# |
1 | ||
| 53031-14011 |
TA1# OUTER |
1 | ||
| 53132-19076 |
TA1# |
1 | ||
| Common parts | ||||
| 90159-40073 | ||||
| 90159-40147 | ||||
| 90162-40029 | ||||
| 90162-40030 | ||||
| 90183-04001 | ||||
| 90189-04008 | ||||
(7012-7401)

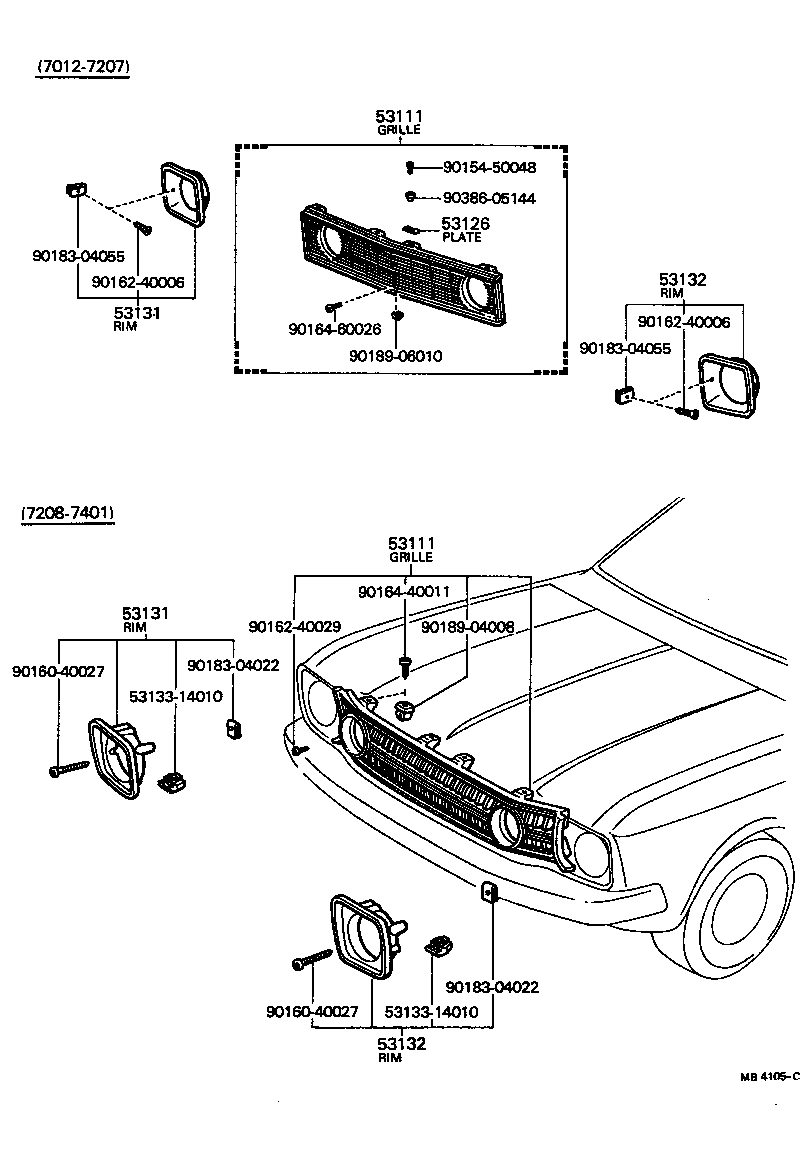

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53110-19105 |
TA1# |
1 | ||
| 53111-14911 |
TA1# |
1 | ||
| 53111-19015 |
TA1# |
1 | ||
| 53110-14901 |
TA1#..DLX |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53111-14911 |
TA1# |
1 | ||
| 53110-19105 |
TA1# |
1 | ||
| 53111-19015 |
TA1# |
1 | ||
| 53110-14901 |
TA1#..DLX |
1 | ||
| 53126 - PLATE,RADIATOR GRILLE SET | ||||
| 53119-30010 |
TA1# |
4 | ||
| 53131 - RIM, HEADLAMP, RH | ||||
| 53131-19076 |
TA1# |
1 | ||
| 53131-19075 |
TA1# |
1 | ||
| 53031-14011 |
TA1# OUTER |
1 | ||
| 53032-14011 |
TA1# INNER |
1 | ||
| 53131 - RIM, HEADLAMP, RH | ||||
| 53131-19076 |
TA1# |
1 | ||
| 53131-19075 |
TA1# |
1 | ||
| 53031-14011 |
TA1# OUTER |
1 | ||
| 53032-14011 |
TA1# INNER |
1 | ||
| 53132 - RIM, HEADLAMP, LH | ||||
| 53032-14011 |
TA1# INNER |
1 | ||
| 53132-19075 |
TA1# |
1 | ||
| 53031-14011 |
TA1# OUTER |
1 | ||
| 53132-19076 |
TA1# |
1 | ||
| 53132 - RIM, HEADLAMP, LH | ||||
| 53032-14011 |
TA1# INNER |
1 | ||
| 53132-19075 |
TA1# |
1 | ||
| 53031-14011 |
TA1# OUTER |
1 | ||
| 53132-19076 |
TA1# |
1 | ||
| Common parts | ||||
| 53133-14010 | ||||
| 90154-50048 | ||||
| 90160-40027 | ||||
| 90162-40006 | ||||
| 90162-40029 | ||||
| 90164-40011 | ||||
| 90164-60026 | ||||
| 90183-04022 | ||||
| 90183-04055 | ||||
| 90189-04008 | ||||
| 90189-06010 | ||||
| 90386-05144 | ||||
