TA12L-HDF (1970)
Toyota Carina
Production
Dec 1970
-
Sep 1975
Engine
2T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7012-7707)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48021 - SHELL SUB-ASSY, W/STEERING KNUCKLE, RH | ||||
| 48021-14010 |
TA1# |
1 | ||
| 48021-14011 |
TA1# |
1 | ||
| 48021-14012 |
TA1# |
1 | ||
| 48023 - ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT) | ||||
| 48023-14010 |
TA1# |
2 | ||
| 48023-14011 |
TA1# |
2 | ||
| 48024 - VALVE SUB-ASSY, SHOCK ABSORBER PISTON | ||||
| 48571-14010 |
TA1# |
2 | ||
| 48024A - COLLAR, ABSORBER PISTON VALVE | ||||
| 90387-10076 |
TA1# |
2 | ||
| 48024B - SPRING, SHOCK ABSORBER PISTON VALVE | ||||
| 90501-23585 |
TA1# |
2 | ||
| 48028 - NUT SUB-ASSY, SHOCK ABSORBER RING | ||||
| 48028-14010 |
TA1# |
2 | ||
| 48028A - SEAL, OIL(FOR SHOCK ABSORBER RING NUT) | ||||
| 90316-22004 |
TA1# |
2 | ||
| 90316-22007 |
TA1# |
2 | ||
| 48028B - GASKET(FOR SHOCK ABSORBER RING NUT) | ||||
| 90430-43206 |
TA1# |
2 | ||
| 48029 - SHELL SUB-ASSY, W/STEERING KNUCKLE, LH | ||||
| 48021-14010 |
TA1# |
1 | ||
| 48021-14011 |
TA1# |
1 | ||
| 48021-14012 |
TA1# |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-14010 |
TA1# |
1 | ||
| 48510-14012 |
TA1# |
1 | ||
| 48510-14013 |
TA1# |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-14012 |
TA1# |
1 | ||
| 48510-14010 |
TA1# |
1 | ||
| 48510-14013 |
TA1# |
1 | ||
| 48550 - VALVE ASSY, SHOCK ABSORBER BASE | ||||
| 48550-14010 |
TA1# |
2 | ||
| 48550-14011 |
TA1# |
2 | ||
| 48552 - CYLINDER, SHOCK ABSORBER(FOR FRONT) | ||||
| 48552-14010 |
TA1# |
2 | ||
| 48563 - STOPPER, NON-RETURN VALVE | ||||
| 48563-14010 |
TA1# |
2 | ||
| 48565 - SPRING, SHOCK ABSORBER NON-RETURN VALVE | ||||
| 48565-14010 |
TA1# |
4 | ||
| 48565 - SPRING, SHOCK ABSORBER NON-RETURN VALVE | ||||
| 48565-14010 |
TA1# |
4 | ||
| 48566 - VALVE, SHOCK ABSORBER NON-RETURN | ||||
| 48566-14010 |
TA1# |
2 | ||
| 48567 - PISTON, SHOCK ABSORBER | ||||
| 48567-14010 |
TA1# |
2 | ||
| 48568 - RING, SHOCK ABSORBER PISTON | ||||
| 48568-14010 |
TA1# |
2 | ||
| 48569 - NUT, SHOCK ABSORBER PISTON | ||||
| 48569-14010 |
TA1# |
2 | ||
| 48570 - GUIDE ASSY, SHOCK ABSORBER ROD | ||||
| 48022-14010 |
TA1# |
2 | ||
| 48577 - STOPPER, SHOCK ABSORBER REBOUND | ||||
| 48579-14010 |
TA1# |
2 | ||

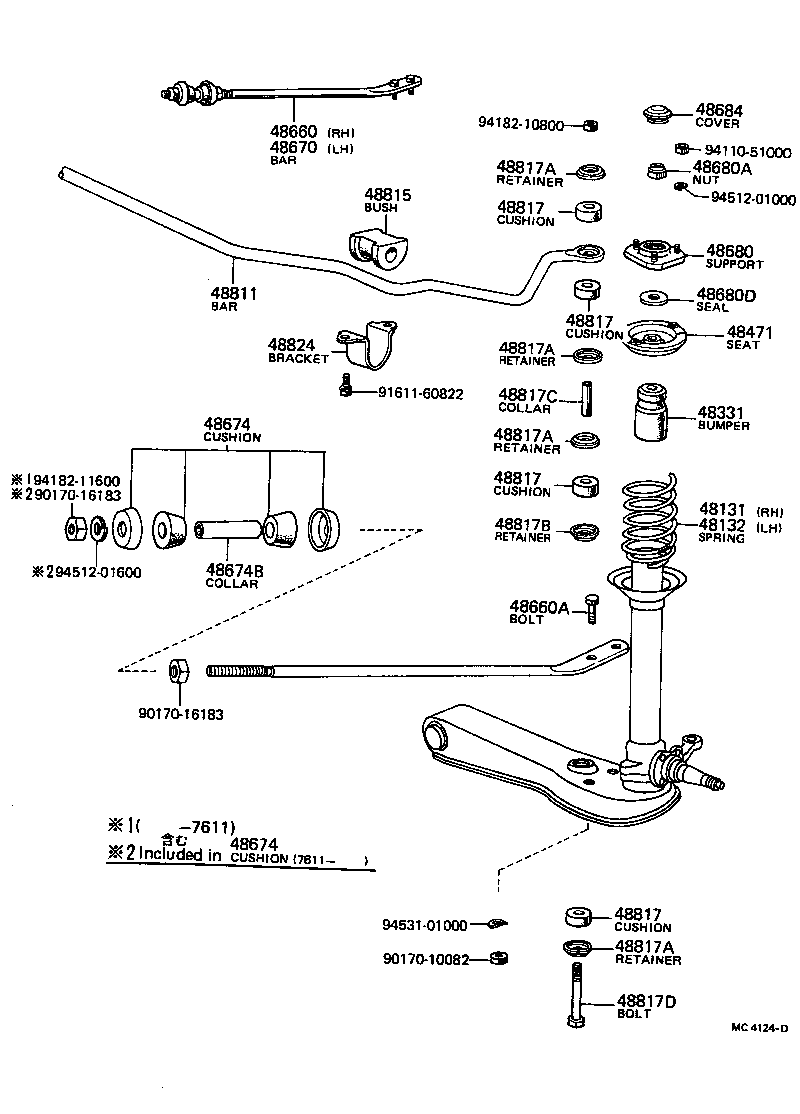

(7012-7707)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-14010 |
TA1# |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-14010 |
TA1# |
1 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-14020 |
TA1# |
2 | ||
| 48471 - SEAT, FRONT SPRING, UPPER | ||||
| 48044-14010 |
TA1# |
2 | ||
| 48660 - BAR ASSY, STRUT, RH | ||||
| 48661-19025 |
TA1# |
1 | ||
| 48661-19026 |
TA1# |
1 | ||
| 48660A - BOLT(FOR STRUT BAR SETTING) | ||||
| 90101-10148 |
TA1# |
4 | ||
| 48670 - BAR ASSY, STRUT, LH | ||||
| 48661-19026 |
TA1# |
1 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-19025 |
TA1# |
2 | ||
| 48674-19026 |
TA1# |
2 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-19025 |
TA1# |
2 | ||
| 48674-19026 |
TA1# |
2 | ||
| 48674B - COLLAR(FOR STRUT BAR CUSHION) | ||||
| 90387-16052 |
TA1# |
2 | ||
| 48680 - SUPPORT ASSY, FRONT SUSPENSION | ||||
| 48680-14010 |
TA1# |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 90179-14090 |
TA1# |
2 | ||
| 48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90303-22049 |
TA1# |
2 | ||
| 48684 - COVER, BEARING DUST | ||||
| 48684-14010 |
TA1# |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-14031 |
TA1# |
1 | ||
| 48811-14030 |
TA1# |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-20060 |
TA10,12 |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-10010 |
TA1# |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-10010 |
TA1# |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-10010 |
TA1# |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-10010 |
TA1# |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02024 |
TA1# T=1.2 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02024 |
TA1# T=1.2 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02024 |
TA1# T=1.2 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02024 |
TA1# T=1.2 |
8 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02025 |
TA1# T=1.0 |
2 | ||
| 48817C - COLLAR(FOR STABILIZER BAR) | ||||
| 90387-09057 |
TA1# |
2 | ||
| 48817D - BOLT(FOR FRONT STABILIZER) | ||||
| 90101-08274 |
TA1# |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-14020 |
TA1# |
2 | ||
| 48824-22010 |
TA1# |
2 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 90170-16183 | ||||
| 91611-60822 | ||||
| 94110-51000 | ||||
| 94182-10800 | ||||
| 94182-11600 | ||||
| 94512-01000 | ||||
| 94512-01600 | ||||
| 94531-01000 | ||||
