TA12L-HDF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7509)

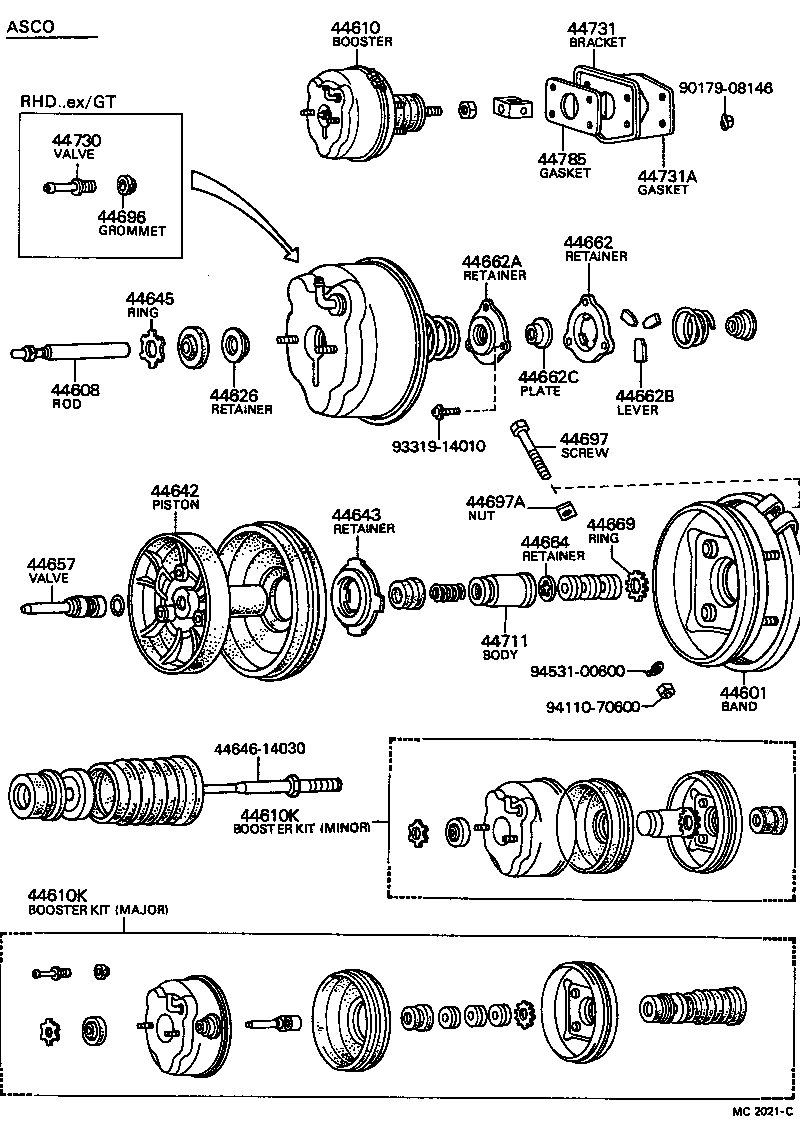

Click highlighted areas on diagram

diagram 44601 44608 44610 44610K 44610K 44626 44642 44643 44645 4464614030 44657 44662 44662A 44662B 44662C 44664 44669 44696 44697 44697A 44711 44730 44731 44731A 44785 9017908146 9331914010 9411070600 9453100600
Part # Description Qty Price
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-14040

TA1#

JKK

 1
44610 - BOOSTER ASSY, BRAKE
44610-14040

TA12

JKK,SINGLE M/C

 1
44610-14160

TA1#..LHD

JKK,TANDEM M/C,7.5IN

 1
44610-14050

TA1#

JKK,SINGLE M/C

 1
44610-14051

TA1#..LHD

JKK.SINGLE M/C

 1
44610-14041

TA1#..LHD

JKK,TANDEM M/C

 1
44610K - BOOSTER KIT, BRAKE
04443-14020

TA12

JKK,MAJOR KIT

 1
04443-14021

TA1#..LHD

JKK.MAJOR KIT

 1
04443-14032

TA1#..LHD

JKK,MAJOR KIT,SINGLE M/C

 1
04441-22021

TA1#

JKK.MINOR KIT

 1
04443-14031

TA1#..LHD

JKK.MAJOR KIT

 1
04443-14022

TA1#..LHD

JKK,MAJOR KIT,6IN TANDEM M/C

 1
04443-14110

TA1#..LHD

JKK,MAJOR KIT,7.5IN TANDEM M/C

 1
04443-14030

TA1#

JKK FOR MINOR

 1
44610K - BOOSTER KIT, BRAKE
04443-14020

TA12

JKK,MAJOR KIT

 1
04443-14021

TA1#..LHD

JKK.MAJOR KIT

 1
04443-14032

TA1#..LHD

JKK,MAJOR KIT,SINGLE M/C

 1
04441-22021

TA1#

JKK.MINOR KIT

 1
04443-14031

TA1#..LHD

JKK.MAJOR KIT

 1
04443-14022

TA1#..LHD

JKK,MAJOR KIT,6IN TANDEM M/C

 1
04443-14110

TA1#..LHD

JKK,MAJOR KIT,7.5IN TANDEM M/C

 1
04443-14030

TA1#

JKK FOR MINOR

 1
44642 - PISTON, BRAKE BOOSTER
44642-22020

TA1#

JKK

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

TA1#

JKK

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-14010

TA1#..LHD

ASCO

 1
44730-20010

TA1#..LHD

 1
44730-14010

TA1#

ASCO

 1
44731 - BRACKET, BRAKE BOOSTER, FRONT
44731-14020

TA1#

 1
44731-14010

TA1#

 1
44731A - GASKET, BRAKE BOOSTER BRACKET
47278-14010

TA1#

 1
44785 - GASKET, BRAKE BOOSTER
44785-14010

TA1#

 1
Common parts
44646-14030
90179-08146
93319-14010
94110-70600
94531-00600

(7012-7509)

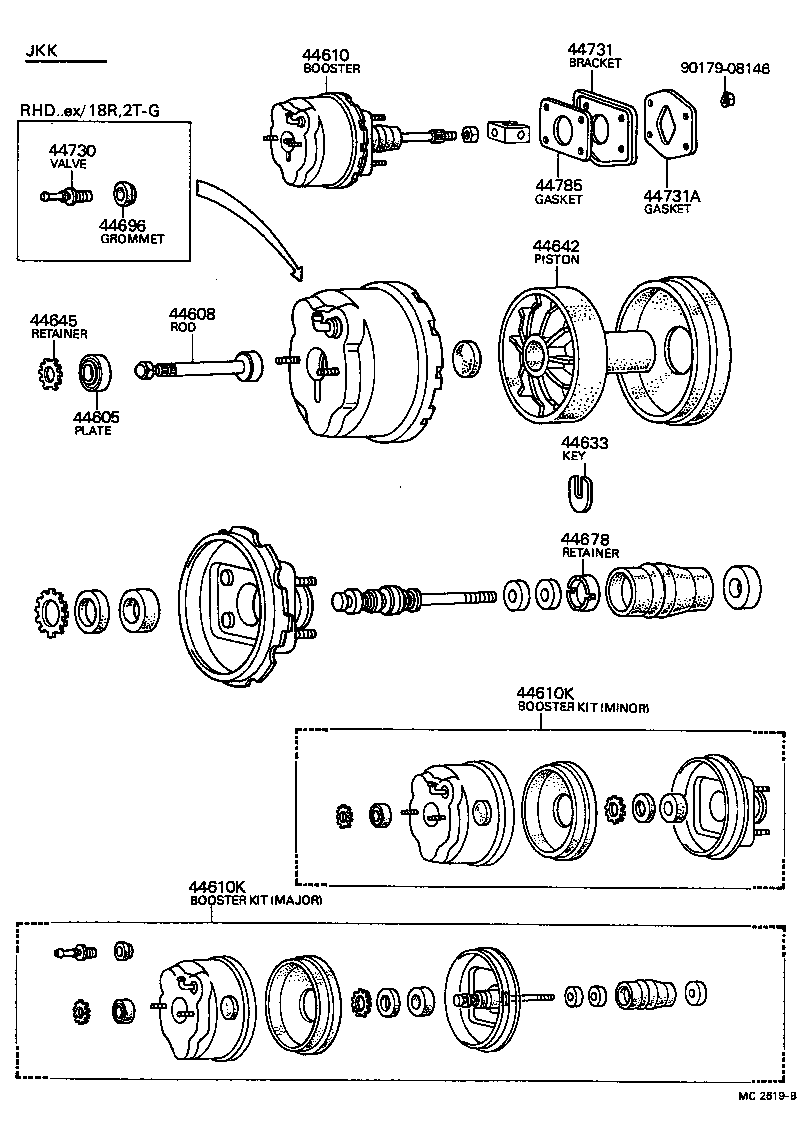

Click highlighted areas on diagram

diagram 44605 44608 44610 44610K 44610K 44633 44642 44645 44678 44696 44730 44731 44731A 44785 9017908146
Part # Description Qty Price
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-22021

TA1#

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-14040

TA1#

JKK

 1
44610 - BOOSTER ASSY, BRAKE
44610-14040

TA12

JKK,SINGLE M/C

 1
44610-14160

TA1#..LHD

JKK,TANDEM M/C,7.5IN

 1
44610-14050

TA1#

JKK,SINGLE M/C

 1
44610-14051

TA1#..LHD

JKK.SINGLE M/C

 1
44610-14041

TA1#..LHD

JKK,TANDEM M/C

 1
44610K - BOOSTER KIT, BRAKE
04443-14020

TA12

JKK,MAJOR KIT

 1
04443-14021

TA1#..LHD

JKK.MAJOR KIT

 1
04443-14032

TA1#..LHD

JKK,MAJOR KIT,SINGLE M/C

 1
04441-22021

TA1#

JKK.MINOR KIT

 1
04443-14031

TA1#..LHD

JKK.MAJOR KIT

 1
04443-14022

TA1#..LHD

JKK,MAJOR KIT,6IN TANDEM M/C

 1
04443-14110

TA1#..LHD

JKK,MAJOR KIT,7.5IN TANDEM M/C

 1
04443-14030

TA1#

JKK FOR MINOR

 1
44610K - BOOSTER KIT, BRAKE
04443-14020

TA12

JKK,MAJOR KIT

 1
04443-14021

TA1#..LHD

JKK.MAJOR KIT

 1
04443-14032

TA1#..LHD

JKK,MAJOR KIT,SINGLE M/C

 1
04441-22021

TA1#

JKK.MINOR KIT

 1
04443-14031

TA1#..LHD

JKK.MAJOR KIT

 1
04443-14022

TA1#..LHD

JKK,MAJOR KIT,6IN TANDEM M/C

 1
04443-14110

TA1#..LHD

JKK,MAJOR KIT,7.5IN TANDEM M/C

 1
04443-14030

TA1#

JKK FOR MINOR

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-22020

TA1#

 1
44642 - PISTON, BRAKE BOOSTER
44642-22020

TA1#

JKK

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

TA1#

JKK

 1
44678 - RETAINER, BOOSTER AIR CLEANER
44678-22020

TA1#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-14010

TA1#..LHD

ASCO

 1
44730-20010

TA1#..LHD

 1
44730-14010

TA1#

ASCO

 1
44731 - BRACKET, BRAKE BOOSTER, FRONT
44731-14020

TA1#

 1
44731-14010

TA1#

 1
44731A - GASKET, BRAKE BOOSTER BRACKET
47278-14010

TA1#

 1
44785 - GASKET, BRAKE BOOSTER
44785-14010

TA1#

 1
Common parts
90179-08146

(7012-7509)

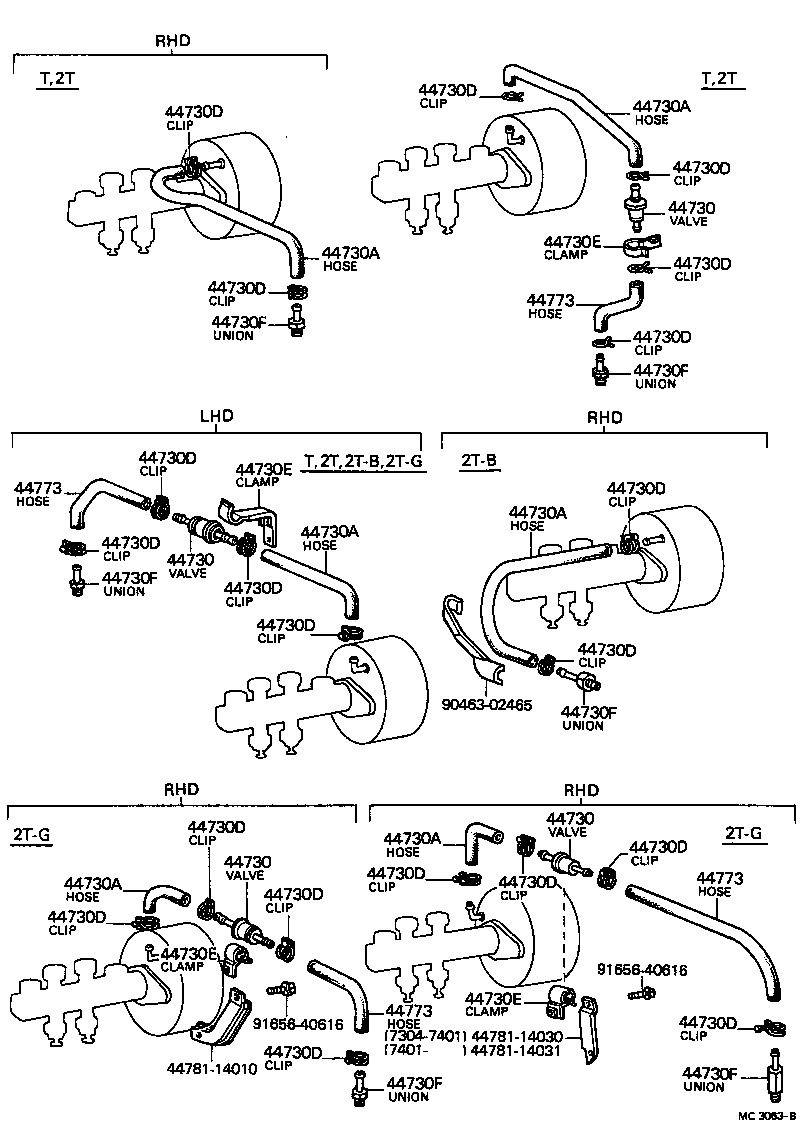

Click highlighted areas on diagram

diagram 44730 44730 44730 44730 44730A 44730A 44730A 44730A 44730A 44730A 44730D 44730D 44730D 44730D 44730D 44730D 44730D 44730D 44730D 44730D 44730D 44730D 44730D 44730D 44730D 44730D 44730D 44730D 44730D 44730D 44730E 44730E 44730E 44730E 44730F 44730F 44730F 44730F 44730F 44730F 44773 44773 44773 44773 4478114010 4478114030 4478114031 9046302465 9165640616 9165640616
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-14010

TA1#..LHD

ASCO

 1
44730-20010

TA1#..LHD

 1
44730-14010

TA1#

ASCO

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-14010

TA1#..LHD

ASCO

 1
44730-20010

TA1#..LHD

 1
44730-14010

TA1#

ASCO

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-14010

TA1#..LHD

ASCO

 1
44730-20010

TA1#..LHD

 1
44730-14010

TA1#

ASCO

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-14010

TA1#..LHD

ASCO

 1
44730-20010

TA1#..LHD

 1
44730-14010

TA1#

ASCO

 1
44730A - HOSE, VACUUM, NO.1
90445-14365

TA1#..LHD

 1
44772-14050

TA1#..LHD

 1
90445-17800

TA1#..LHD

 1
44730A - HOSE, VACUUM, NO.1
90445-14365

TA1#..LHD

 1
44772-14050

TA1#..LHD

 1
90445-17800

TA1#..LHD

 1
44730A - HOSE, VACUUM, NO.1
90445-14365

TA1#..LHD

 1
44772-14050

TA1#..LHD

 1
90445-17800

TA1#..LHD

 1
44730A - HOSE, VACUUM, NO.1
90445-14365

TA1#..LHD

 1
44772-14050

TA1#..LHD

 1
90445-17800

TA1#..LHD

 1
44730A - HOSE, VACUUM, NO.1
90445-14365

TA1#..LHD

 1
44772-14050

TA1#..LHD

 1
90445-17800

TA1#..LHD

 1
44730A - HOSE, VACUUM, NO.1
90445-14365

TA1#..LHD

 1
44772-14050

TA1#..LHD

 1
90445-17800

TA1#..LHD

 1
44730D - CLIP(FOR VACUUM HOSE, NO.1)
96112-10180

TA1#

 4
90467-13015

TA1#

 4
44730D - CLIP(FOR VACUUM HOSE, NO.1)
96112-10180

TA1#

 4
90467-13015

TA1#

 4
44730D - CLIP(FOR VACUUM HOSE, NO.1)
96112-10180

TA1#

 4
90467-13015

TA1#

 4
44730D - CLIP(FOR VACUUM HOSE, NO.1)
96112-10180

TA1#

 4
90467-13015

TA1#

 4
44730D - CLIP(FOR VACUUM HOSE, NO.1)
96112-10180

TA1#

 4
90467-13015

TA1#

 4
44730D - CLIP(FOR VACUUM HOSE, NO.1)
96112-10180

TA1#

 4
90467-13015

TA1#

 4
44730D - CLIP(FOR VACUUM HOSE, NO.1)
96112-10180

TA1#

 4
90467-13015

TA1#

 4
44730D - CLIP(FOR VACUUM HOSE, NO.1)
96112-10180

TA1#

 4
90467-13015

TA1#

 4
44730D - CLIP(FOR VACUUM HOSE, NO.1)
96112-10180

TA1#

 4
90467-13015

TA1#

 4
44730D - CLIP(FOR VACUUM HOSE, NO.1)
96112-10180

TA1#

 4
90467-13015

TA1#

 4
44730D - CLIP(FOR VACUUM HOSE, NO.1)
96112-10180

TA1#

 4
90467-13015

TA1#

 4
44730D - CLIP(FOR VACUUM HOSE, NO.1)
96112-10180

TA1#

 4
90467-13015

TA1#

 4
44730D - CLIP(FOR VACUUM HOSE, NO.1)
96112-10180

TA1#

 4
90467-13015

TA1#

 4
44730D - CLIP(FOR VACUUM HOSE, NO.1)
96112-10180

TA1#

 4
90467-13015

TA1#

 4
44730D - CLIP(FOR VACUUM HOSE, NO.1)
96112-10180

TA1#

 4
90467-13015

TA1#

 4
44730D - CLIP(FOR VACUUM HOSE, NO.1)
96112-10180

TA1#

 4
90467-13015

TA1#

 4
44730D - CLIP(FOR VACUUM HOSE, NO.1)
96112-10180

TA1#

 4
90467-13015

TA1#

 4
44730D - CLIP(FOR VACUUM HOSE, NO.1)
96112-10180

TA1#

 4
90467-13015

TA1#

 4
44730D - CLIP(FOR VACUUM HOSE, NO.1)
96112-10180

TA1#

 4
90467-13015

TA1#

 4
44730D - CLIP(FOR VACUUM HOSE, NO.1)
96112-10180

TA1#

 4
90467-13015

TA1#

 4
44730E - CLAMP, VACUUM CHECK VALVE
44758-14020

TA1#..LHD

 1
44730E - CLAMP, VACUUM CHECK VALVE
44758-14020

TA1#..LHD

 1
44730E - CLAMP, VACUUM CHECK VALVE
44758-14020

TA1#..LHD

 1
44730E - CLAMP, VACUUM CHECK VALVE
44758-14020

TA1#..LHD

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51096

TA1#

 1
90404-51257

TA1#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51096

TA1#

 1
90404-51257

TA1#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51096

TA1#

 1
90404-51257

TA1#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51096

TA1#

 1
90404-51257

TA1#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51096

TA1#

 1
90404-51257

TA1#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51096

TA1#

 1
90404-51257

TA1#

 1
44773 - HOSE, VACUUM, NO.2
44773-14021

TA1#..LHD

 1
44773-14020

TA1#..LHD

 1
44773 - HOSE, VACUUM, NO.2
44773-14021

TA1#..LHD

 1
44773-14020

TA1#..LHD

 1
44773 - HOSE, VACUUM, NO.2
44773-14021

TA1#..LHD

 1
44773-14020

TA1#..LHD

 1
44773 - HOSE, VACUUM, NO.2
44773-14021

TA1#..LHD

 1
44773-14020

TA1#..LHD

 1
Common parts
44781-14010
44781-14030
44781-14031
90463-02465
91656-40616
