TA12L-HDF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7308)3FC

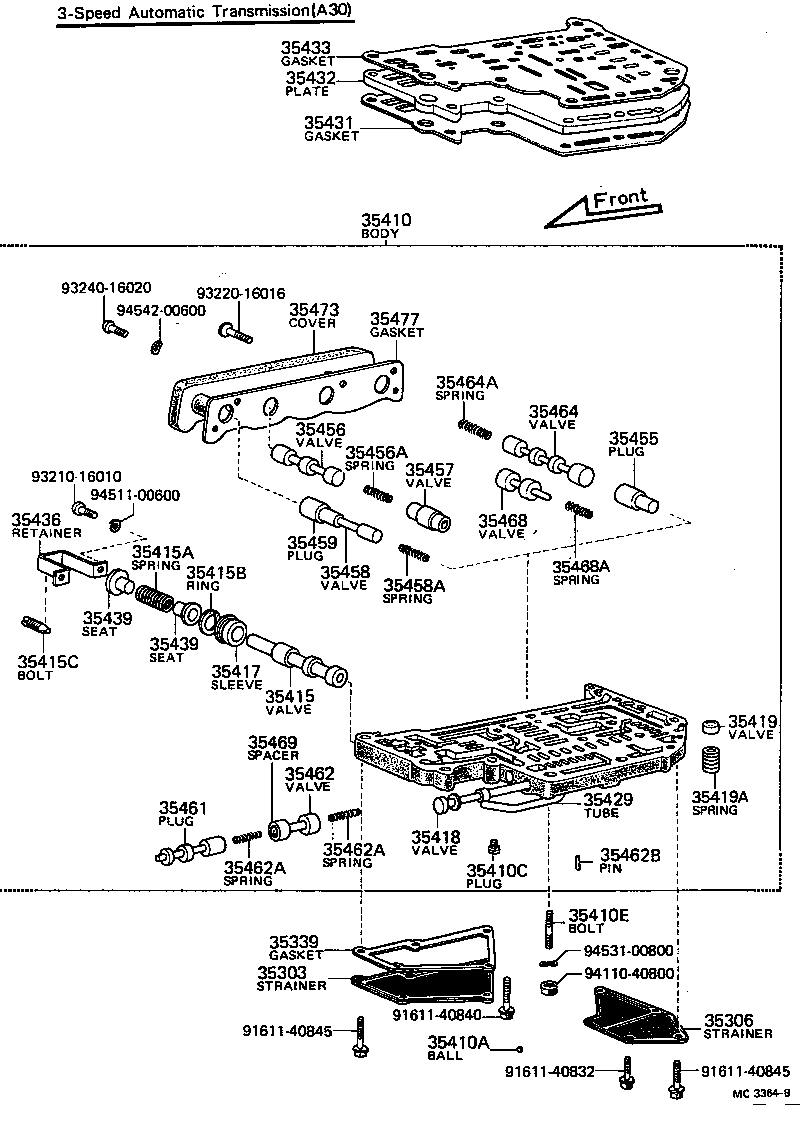

Click highlighted areas on diagram

diagram 35303 35306 35339 35410 35410A 35410C 35410E 35415 35415A 35415B 35415C 35417 35418 35419 35419A 35429 35431 35432 35433 35436 35439 35439 35455 35456 35456A 35457 35458 35458A 35459 35461 35462 35462A 35462A 35462B 35464 35464A 35468 35468A 35469 35473 35477 9161140832 9161140840 9161140845 9161140845 9321016010 9322016016 9324016020 9411040800 9451100600 9453100800 9454200600
Part # Description Qty Price
35303 - STRAINER SUB-ASSY, OIL
35303-30013

TA12..3FC

 1
35306 - STRAINER SUB-ASSY, REAR OIL
35306-30011

TA12..3FC

 1
35339 - GASKET, OIL STRAINER
35339-30010

TA12..3FC

 1
35410 - BODY ASSY, TRANSMISSION VALVE
35410-30011

TA12..3FC

 1
35410A - BALL (FOR REVERSE SHIFT RESTRICT)
90360-06004

TA12..3FC

 1
35410C - PLUG (FOR TRANSMISSION VALVE BODY)
44681-36020

TA12..3FC

 2
35410E - BOLT, STUD (FOR TRANSMISSION VALVE BODY)
90116-08017

TA12..3FC

L=41,S=10&20

 2
35415 - VALVE, PRESSURE REGULATOR
35415-30011

TA12..3FC

 1
35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE)
90501-16331

TA12..3FC

WD=1.6,CW=14

 1
35415B - RING, HOLE SNAP (FOR PRESSURE REGULATOR VALVE SET)
96151-01500

TA12..3FC

 1
90521-16096

TA12..3FC

 1
35415C - BOLT, SET (FOR VALVE SPRING)
90113-08024

TA12..3FC

 1
35417 - SLEEVE, PRESSURE REGULATOR VALVE
35417-30010

TA12..3FC

 1
35418 - VALVE, MANUAL
35418-30011

TA12..3FC

 1
35419 - VALVE, CHECK, NO.1
35419-12010

TA12..3FC

 2
35419A - SPRING, COMPRESSION (FOR CHECK VALVE)
90501-05327

TA12..3FC

WD=0.5,CW=6.7

 2
35429 - TUBE, LINE PRESSURE
35429-30010

TA12..3FC

 1
35431 - GASKET,VALVE BODY
35434-30011

TA12..3FC

 1
35432 - PLATE, VALVE BODY, NO.1
35432-30012

TA12..3FC

 1
35432-30011

TA12..3FC

 1
35433 - GASKET, VALVE BODY, NO.1
35433-30012

TA12..3FC

 1
35433-30011

TA12..3FC

 1
35436 - RETAINER, PRESSURE REGULATOR SPRING
35436-30011

TA12..3FC

 1
35439 - SEAT, PRESSURE REGULATOR VALVE SPRING
35439-30010

TA12..3FC

 2
35439 - SEAT, PRESSURE REGULATOR VALVE SPRING
35439-30010

TA12..3FC

 2
35455 - PLUG, 1-2 SHIFT VALVE LOW
35455-30011

TA12..3FC

 1
35456 - VALVE, 2-3 SHIFT
35456-30010

TA12..3FC

 1
35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)
90501-08328

TA12..3FC

WD=0.8,CW=13.5

 1
35457 - VALVE, THROTTLE MODULATOR
35457-30010

TA12..3FC

 1
35458 - VALVE, THROTTLE RELAY
35458-30010

TA12..3FC

 1
35458A - SPRING, COMPRESSION (FOR THROTTLE RELAY VALVE)
90501-06325

TA12..3FC

WD=0.55,CW=12.8

 1
35459 - PLUG, THROTTLE RELAY
35459-30010

TA12..3FC

 1
35461 - PLUG, DOWN SHIFT
35461-30010

TA12..3FC

 1
35462 - VALVE, THROTTLE
35462-30010

TA12..3FC

 1
35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE)
90501-10334

TA12..3FC

WD=1.2,CW=13

 1
90501-12333

TA12..3FC

WD=1.2,CW=11

 1
35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE)
90501-10334

TA12..3FC

WD=1.2,CW=13

 1
90501-12333

TA12..3FC

WD=1.2,CW=11

 1
35462B - PIN, SLOTTED SPRING (FOR THROTTLE VALVE SET)
90254-03011

TA12..3FC

 1
35464 - VALVE, 1-2 SHIFT
35464-30011

TA12..3FC

 1
35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)
90501-05416

TA12..3FC

CW=10,BLUE

 1
90501-06461

TA12..3FC

CW=10,BLACK

 1
90501-06460

TA12..3FC

CW=10,RED

 1
35468 - VALVE, ORIFICE CONTROL
35468-30010

TA12..3FC

 1
35468A - SPRING, COMPRESSION (FOR ORIFICE CONTROL VALVE SPRING)
90501-12332

TA12..3FC

WD=1.2,CW=10

 1
35469 - SPACER (FOR VALVE BODY DOWN SHIFT PLUG)
35469-30010

TA12..3FC

 1
35473 - COVER, TRANSMISSION VALVE BODY
35473-30011

TA12..3FC

 1
35477 - GASKET, VALVE BODY COVER
35477-30010

TA12..3FC

 1
Common parts
91611-40832
91611-40840
91611-40845
93210-16010
93220-16016
93240-16020
94110-40800
94511-00600
94531-00800
94542-00600
